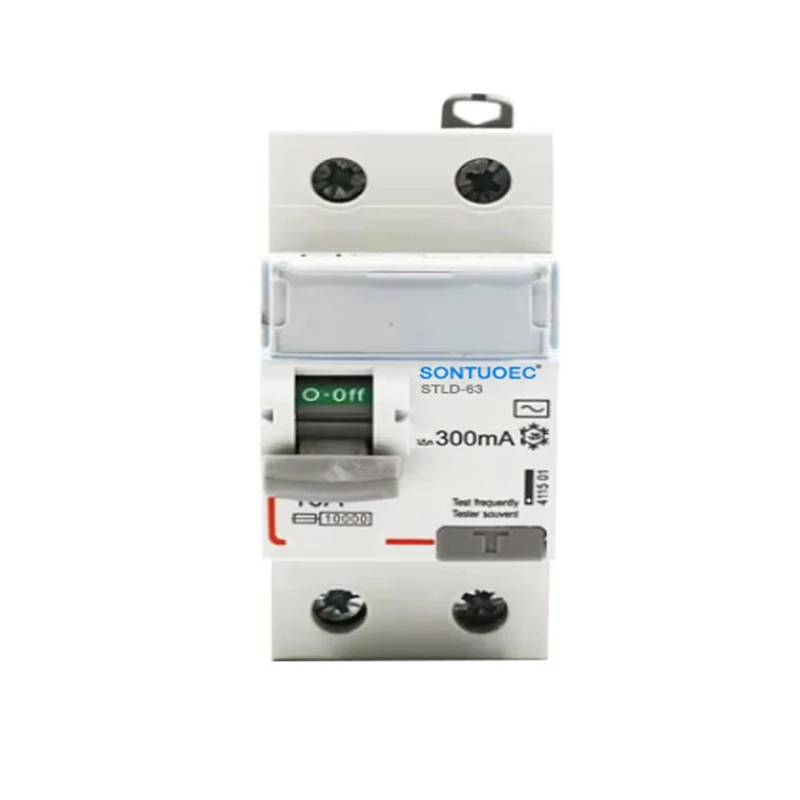

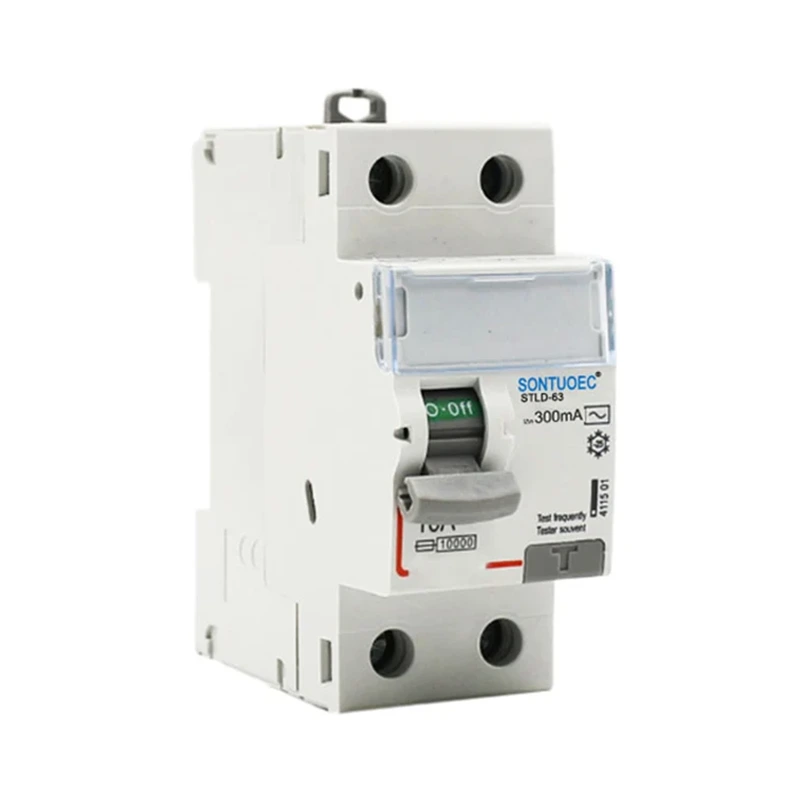

2p 63a / 30ma rcd AC nooca

Mabda'a hawlgalka ee 2P 63A / 30Ma rcd rcd Ac waxay ku saleysan tahay haraaga hadda socda ee hadda socda. Markii aan la isku halleyn karin (I.E. Dheecaan) waxay ku dhacdaa nidaamka korantada, Transformer haraaga ah ee hadda jira waxay ogaataa tan aan la isku halleyn karin waxayna abuurtaa hawo mabnetic ah oo u dhigma qulqulka hadda jira. Dhiigjirka magnetic-kaani wuxuu kiciyaa habka sii-deynta gudaha ee RCD, taasoo keentay RCD inay si dhakhso ah u jaro saadka korantada.

Soo dir weydiin

Sharaxaada Alaabta

Moodel:	Nooca elektro-magnetic; Nooca elektiroonigga ah
Caadi ah	IEC 61008-1
Astaamaha haraaga ah ee harsan:	Iyo, iyo

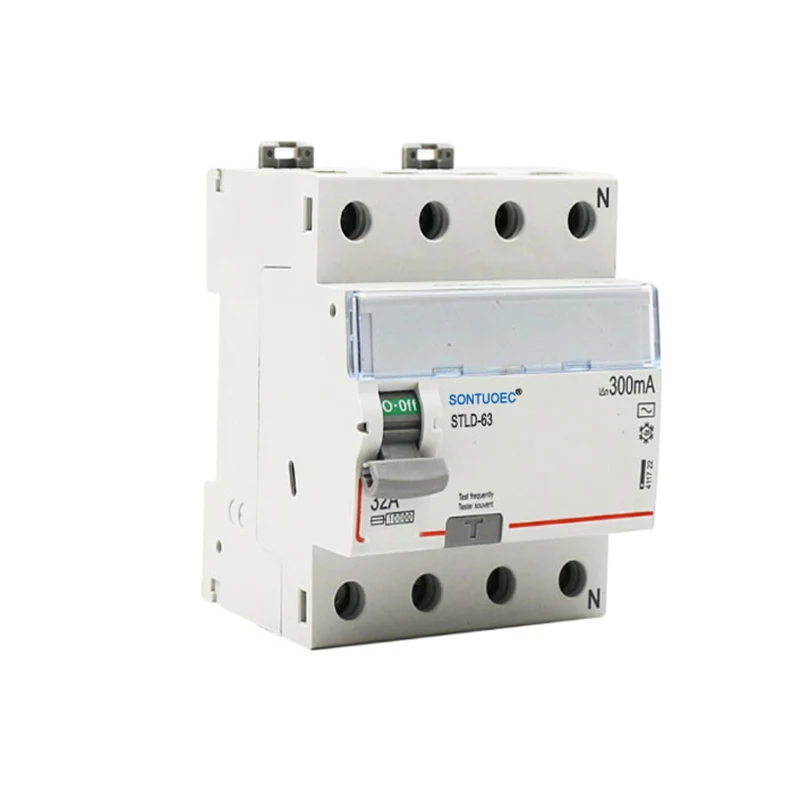

Cirif no.:	2p, 4p
Lagu qiimeeyay hadda:	16A, 25Oo, 25Oo, 25Oo, 25Oo, 25Oo, 25Oo, 25Oo, 25Oo taasna waa inay ahaadaan;
Korantada lagu qiimeeyay:	230 / 400V AC
Waxaa lagu qiimeeyay soo noqnoqoshada:	50 / 60hz
Ku-meel-gaadhka hadhaaga ah ee lagu qiimeeyay ee hadda jira ee hadda ah:	10Ma, 30MA, 100MA, 300Ma, 500Ma
Heerka hadhaaga ah ee aan shaqeynaynin ee aan shaqeynin ee i Δno:	≤0.5i
Qiyaasta qiimeynta ee ku-xireysan ee ku xusan gobolka Inc:	6000a
Lagu qiimeeyay meel-ku-meel-gaar ah Hada IΔ IΔ:	6000a
Muddada Tration-ka:	DIIWAAN GALINTA ISTICMAALKA0.1SEC
Tilmaanta haraaga ah ee xadka hadda jira:	0.5i ~ iΔ
Adkeysi elektaroonig ah:	4000 wareeg
Xadhiga adkeynta:	2.0nm
Terminal Xiriirka:	Terminalka Terrinal Terminal Terminal Terminal

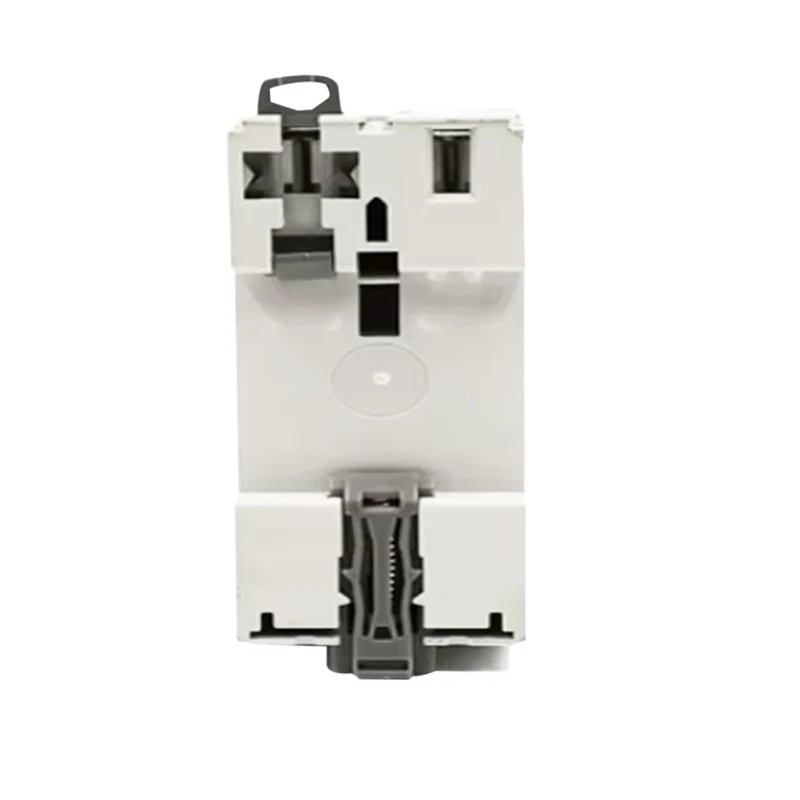

Rakibaadda:	35mm oo xamuul tareen ah

Fikradda aasaasiga ah

 2p: Waxay muujineysaa in RCD-gaan (aaladda harsan ee hadda jirta) ay tahay beddel laba-jeer, i.e., waxay xakameyn kartaa dusha sare ee labada khad isku mar. Naqshadeyntani waxaa badanaa loo isticmaalaa halka wajiga iyo sadarka eber ay u baahan yihiin in la gooyo isla mar ahaan si ay u hubiyaan in wareegga si buuxda loo jaro haddii ay dhacdo daadadka ama qaladka, ka hortagga shilalka badbaadada sida korantada ama dabka korantada.

 63A: Waxay muujineysaa in RCD lagu qiimeeyo 63 amps. Qiimeynta hadda jirta waa qiimaha ugu badan ee hadda jira ee ay RCD si joogto ah u qaadi karto iyada oo aan ku dhicin kuleyl ama waxyeelo. Codsiyada wax ku oolka ah, la qiimeeyay ee ku habboon waa in la xushaa iyadoo loo eegayo culayska nidaamka korantada.

30ma Ficilka Bixinta hadda waa qiimaha ugu yar ee hadda jira kaas oo RCD ay ogaato baxsiga hadda oo ay kiciso ficil. Markii baxsiga hadda ka mid ah nidaamka korantada uu ka badan yahay qiimahan, RCD ayaa si dhakhso leh u jari doonta sahayda korantada si loo ilaaliyo badbaadada shaqsiyeed lagana hortago shilalka sida dabka korantada.

 RCD: Qalabka haraaga ah ee haraaga ah waa aalad korantada korantada loo isticmaalo in lagu ogaado hadhaagii hadda jira (I.E. Biyo-baxa hadda jira) nidaamka korantada oo goynaya saadka korantada. Waxaa si weyn loogu isticmaalaa nidaamyo koronto oo yar-yar-yar oo hooseeya si loo bixiyo badbaado dhameystiran oo loogu talagalay qalabka korantada iyo shaqaalaha.

 Nooca AC: Waxay muujineysaa in RCD-kan uu ku habboon yahay in lagu beddelo nidaamyada hadda jira (AC). Kala beddelashada hada (AC) waa hab guud oo loo gudbin karo korantada waxaana lagu gartaa isbedelo xilli xilli ah jihada korantada iyo hadda marka la barbar dhigo hadalka tooska ah (DC). Sidaa darteed, markii la xusho RCD, moodalka ku habboon waa in lagu xushaa iyadoo lagu saleynayo nooca nidaamka korantada (AC ama DC).

1. Difaaca ka hortagga ciladaha dhulka / baxsiga hadda jira iyo shaqada go'doominta

2.Waxaan u hoggaansamiyaa awood-gaaban oo isbadal leh

3. Laybin karo Terminal iyo PIN / FOME FR PUBBAR

4. Ku qalabeysan farta farcanka la ilaaliyo

5. 5.ACTITITTITTITCECTENCECTED SUCHIT marka ciladaha ciladaha / daadashadu dhacdo ee hadda jirta ay dhacdo oo dhaaftay dareenka lagu qiimeeyo

7. --------------- oo silig weyn oo isku xira (35mm isku xira)

2P 63A/30mA RCD AC Type
