2p rcbo b

Nooca 2p rcbo b waa laba wareejin oo hadda ah oo ku-meel-gaar ah oo leh difaac xad dhaaf ah oo leh difaac xad dhaaf ah oo leh 2p (L1) iyo z (L3, L3, L3) iyo safka eber (n) isla waqtigaas. Nooc "badiyaa waxaa loola jeedaa nooc gaar ah ama qeexitaan ku saabsan jabinta wareegga, oo ay ku lug yeelan karto astaamaha hawlgalka, oo lagu qiimeeyay korantada hadda jirta, qiimeeysan iyo cabbirrada kale ee jajabinta wareega.

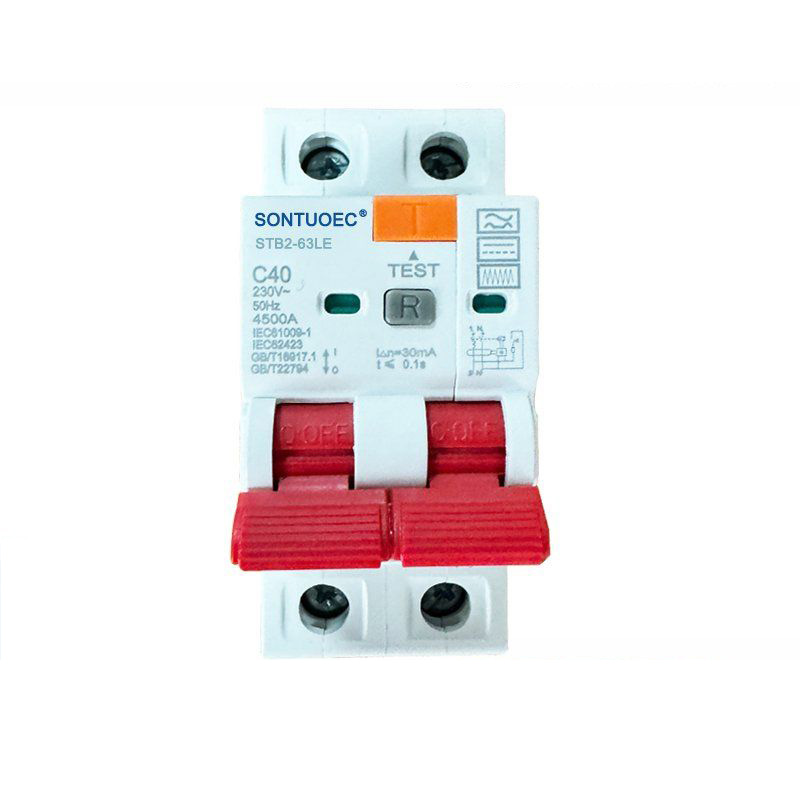

Qaabka:STB2-63LE

Soo dir weydiin

Sharaxaada Alaabta

	Caadi ah	Cutub	IEC / EN 61009-1 iyo IEC / EN62423
Korato astaamaha	Hab		Nooca elektiroonigga ah
	Nooca (Nooca Wave ee Dunida Daboolida dareenka)		B
	Xadgudubka Thermo-magnetic sifo		B, c, d
	Lagu qiimeeyay LN	A	6,10,16,15,25,35,35,40; 63,80a
	Ul shiro	P	1p + n, 3p + n
	Korantada lagu qiimeeyay	V	AC 230, 400
	Dareenka la qiimeeyay i △ n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Sameynta haraaga haraaga iyo jabinta Awood l △ m	A	500
	Qiimaynta wareegga gaagaaban ee la qiimeeyay ICN	A	6000
	Waqti ka hooseeya i △ n	S	≤0.1
	Soo noqnoqoshada soo noqnoqda	Dhutaataa ah	50/60
	Qiimeeyaa qiimahoodu korantada (1.2 / 50) ump	V	4000
	Takhasusyada Dielectricric Ind.freq for 1min	KV	2
	Voltage-kulation-ka ui	V	250
	Shahaadada wasakhda		2
Mashiin ah astaamaha	Nolosha korantada		4000
	Nolosha farsamada		10000
	Cillad hada socota		Haa
	Shahaadada Ilaalinta		Ip20
	Heerkulka deegaanka (oo leh iskucelcelis maalinle ah oo ah boqolkiibasure≤35ºC)	ºC	-5 ~ + 40 (codsi gaar ah fadlan tixraac sixitaanka magdhowga heerkulka)
	Heerkulka kaydinta	ºC	-25 + 70
Rakaabis	Nooca Xiriirka Terminal		Cable / Pin-Pin-nooca baska / nooca u-nooca basbar
	Cabbirka marinka dusha / hoose ee fiilo koronto	mm2	25
	Cabbirka marinka dusha / hoose ee fiilo koronto	W	18-5
	Cabbirka marinka dusha / hoose ee basbar	mm2	25
	Cabbirka marinka dusha / hoose ee basbar	W	18-3
	Biyo		Wadada GUN 60715 (35mm) ee aaladda si dhakhso leh
	Xiriir		Laga soo bilaabo

Tilmaamaha ugu muhiimsan iyo cabirrada

Astaamaha waxqabadka: 2p 4p 4p 4p rcbo b Nooca ah ee haraaga hada-haraaga ah, marka haraaga hadda jira (I.E. Biyo-baxa hadda (I.E.

Waxaa lagu qiimeeyay hada: Waxay kuxirantahay tusaalaha gaarka ah iyo faahfaahinta, tirada guud ee la qiimeeyay ee 2p 4p rcbo b ayaa laga yaabaa inay ku kala duwanaan karaan, 10A, iyo 53A, iyo marna, iyo mar..

Volt-ka lagu qiimeeyay

Waxaa lagu qiimeeyay soo noqnoqoshada: Soo noqnoqoshada qiimeynta ah ee ka-goysyada wareegga ah ayaa badanaa ah 50 / 60hz, oo u dhigma inta jeer ee korantada ee waddamada iyo gobollada.

Awoodda wareegga gaagaaban ee lagu qiimeeyay

Waxqabadka Bixinta ee hadda jira

RCbo inta badan waxaa loo isticmaalaa AC 50hz (60hZ), korantada lagu qiimeeyay 230 / 400v, lagu qiimeeyay 6a ilaa 40a ee nidaamka qaybinta korantada ee korantada. RCBO waxay la mid tahay shaqada MCB + RCD; Waxaa loo isticmaalaa ilaalinta naxdinta leh ee 'shoogka' iyo Ilaalinta Xiriirka Aadanaha ee aan tooska ahayn, marka jirka bini-aadamka ee taabashada korantada ama shabakadda shabakada korantada ee lagu dhejiyay qiimaha hadda jira, iyo culeyska wareegga gaagaaban; Waxay sidoo kale noqon kartaa hawl wadeen aan soo mar ahayn oo ka socda wareegga, oo loo isticmaalo degmo deganaansho iyo ganacsi. Waxay u hoggaansan tahay heerka IEC61009-1.

Codsi iyo rakibaad

Codsiga: 2p 4p 4p rcbo b (rcbo b) wuxuu ku habboon yahay ilaalinta wareejinta korantada korantada ee u baahan xakameynta kontoroolka korantada ee labadaba dabeed iyo fiilooyinka labadaba, sida shilinta, xargaha, hawo-mareenka, ganacsiga, warshadaha iyo meelaha kale ee warshadaha.

Rakibaadda: Jeex-goynta wareega ayaa sida caadiga ah qaadanaya fuulitaanka tareenka-birta ama guddiga ee ku habboon rakibidda degdega ah iyo ka saarida sanduuqa qaybinta ama golaha qeybinta.

Waxyaabaha lagu qoslo Marka ay fiirinayso, hubi in dabka, eber iyo fiilooyinka dhulka ay si sax ah ugu xiran yihiin si looga fogaado halista naxdinta korantada iyo dabka korantada.
