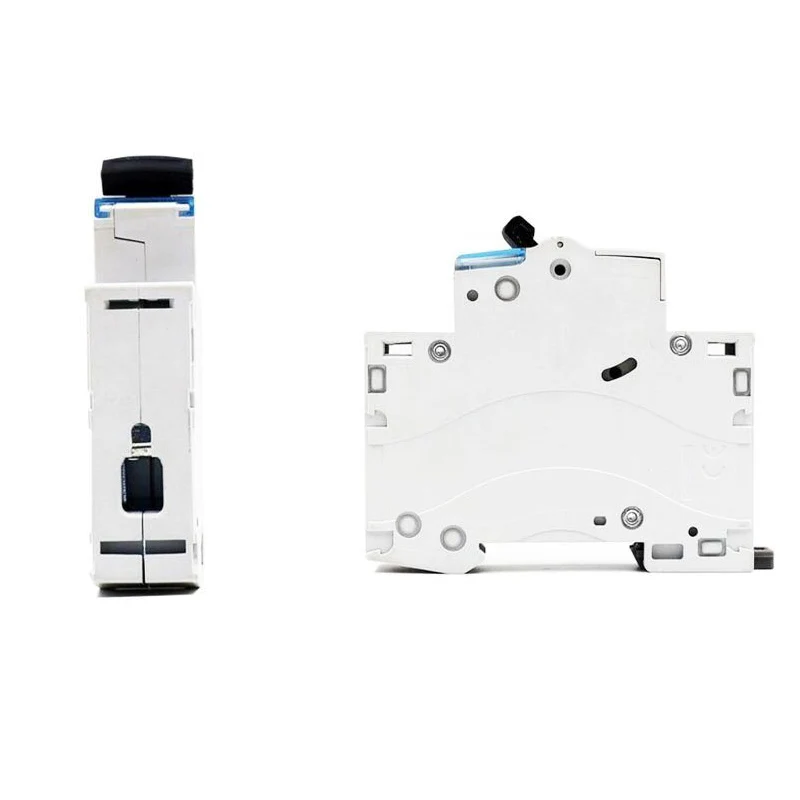

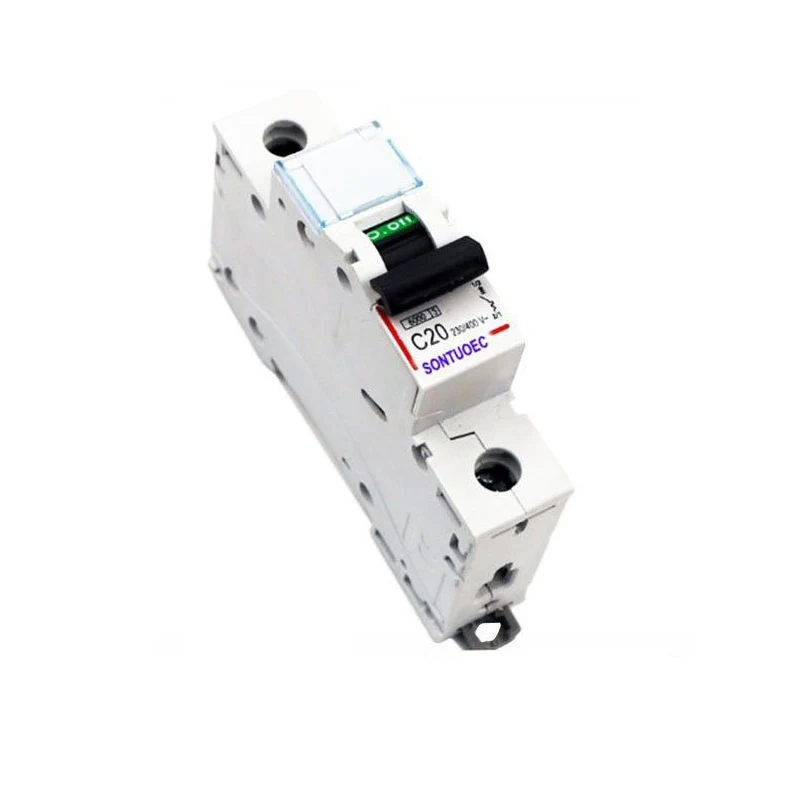

63a MCB

63A MCB waxay awood u leedahay inay si dhakhso ah uga jawaabto oo si sax ah u jarto wareegga, kaas oo si wax ku ool ah uga hortegi kara qalabka korantada inuu waxyeelleeyo culeyska xad dhaafka ah ama wareegga gaagaaban. 63A MCB waa mid is haysta, si sahlan loo rakibo oo dib loo isticmaali karo, yareynta kharashaadka dayactirka.63A MCB waxaa si weyn loogu isticmaalaa ilaalinta wareegga meelaha kala duwan sida warshadaha, ganacsiga, sare iyo guryaha madaniga ah.

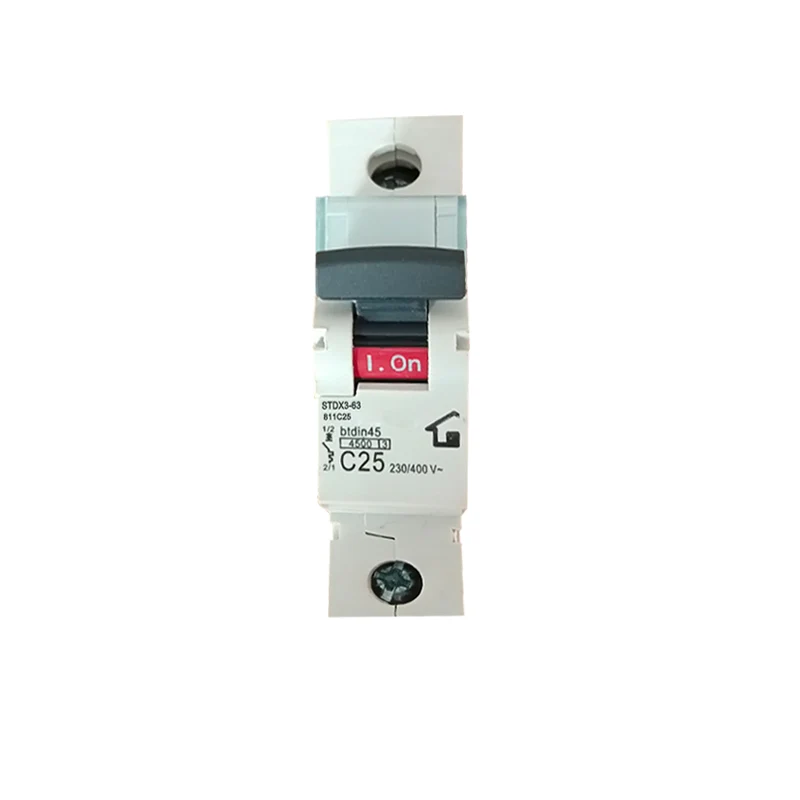

Qaabka:STDX3-63

Soo dir weydiin

Sharaxaada Alaabta

Caadi ah	Cutub	IEC / EN 6088-1-1
Korato astaamaha	Lagu qiimeeyay hadda	A	1,2,410,16,20,25,35,32,40,50,50,6a
	Ul shiro	P	1p, 2p, 3p, 4p
	Korantada lagu qiimeeyay	V	AC 230, 400
	Voltage-kulation-ka ui	V	500
	Soo noqnoqoshada soo noqnoqda	Dhutaataa ah	50/60
	Awoodda jebinta	A	3000, 4500, 6000
	Qiimeeyay ka hortagga korantada (1.2 / 50) ump	V	4000
	Cilmiga korantada ee Dielectric-ka ee Ind. Freq. loogu talagalay 1min	KV	2
	Shahaadada wasakhda		2
	Astaamaha siidaynta ee Thermo-magdhane		B, c, d
Mashiin ah astaamaha	Nolosha korantada	t	4000
	Nolosha farsamada	t	10000
	Shahaadada Ilaalinta		Ip20
	Heerkulka tixraaca ee dejinta of thermai element	ºC	30
	Heerkulka deegaanka (oo leh celcelis ahaan maalinlaha ah ≤35ºC)	ºC	-5 ~ + 40 (codsi gaar ah Fadlan tixraac sixitaanka magdhow heerkulka)
	Heerkulka kaydinta	ºC	-25 + 70
Rakaabis	Nooca Xiriirka Terminal		Cable / Pin-Pin-nooca Busbar
	Cabbirka marinka dusha sare / hoose ee fiilada	mm2	25
		W	18-3
	Cabbirka marinka dusha sare / hoose ee baska	mm2	25
		W	18-3
	Adkeysi torque	N * m	2
		LN-IBS.	18
	Biyo		On tareenka din 60715 (35mm) iyada oo loo adeegsanayo aaladda si dhakhso leh
	Xiriir		Laga bilaabo dusha sare iyo hoose

Faahfaahinta iyo cabirrada

 Waxaa lagu qiimeeyay hada: 63a, taasoo muujineysa in ugu badnaan ee hadda jirta ee ay MCB-gaan si amaana u qaadaan waa 63 amps.

 Korantada lagu qiimeeyay

 Tirada ulaha: Tirada ulaha MCHBs way ku kala duwanaan karaan moodalka, iyo kuwa caadiga ah waa hal-cirif (1p), laba-toosan (3p) iyo afar-meelood (4p). Waxaa ka mid ah, 4p waxay muujineysaa in MCB-gaan loo adeegsado sedex-weji + n-silig oo lagu wareejiyo.

Codsiyada

 Wareegga Guriga: Waxay ku habboon tahay ilaalinta wareegga ee qalabka korantada guryaha, sida laydhka, saldhigyada iyo wixii la mid ah.

Dhismooyinka Ganacsiga: Dhismooyinka Ganacsiga sida suuq-iibsiyada iyo dhismayaasha xafiiska, 63A MCB waxaa loo isticmaali karaa in lagu ilaaliyo qalabka korantada leh xamuul waaweyn.

 Warshadaha: otomatiga warshadaha iyo

 Khadadka wax soo saarka, 63A MCB waxaa loo isticmaali karaa in lagu ilaaliyo qalabka muhiimka ah iyo wareejinta wax soo saarka.
