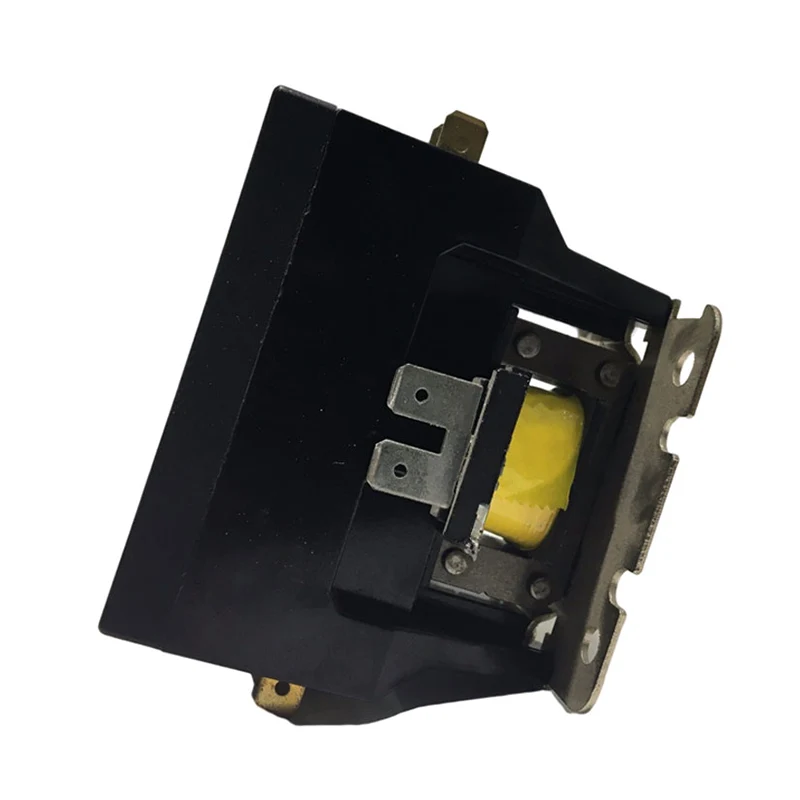

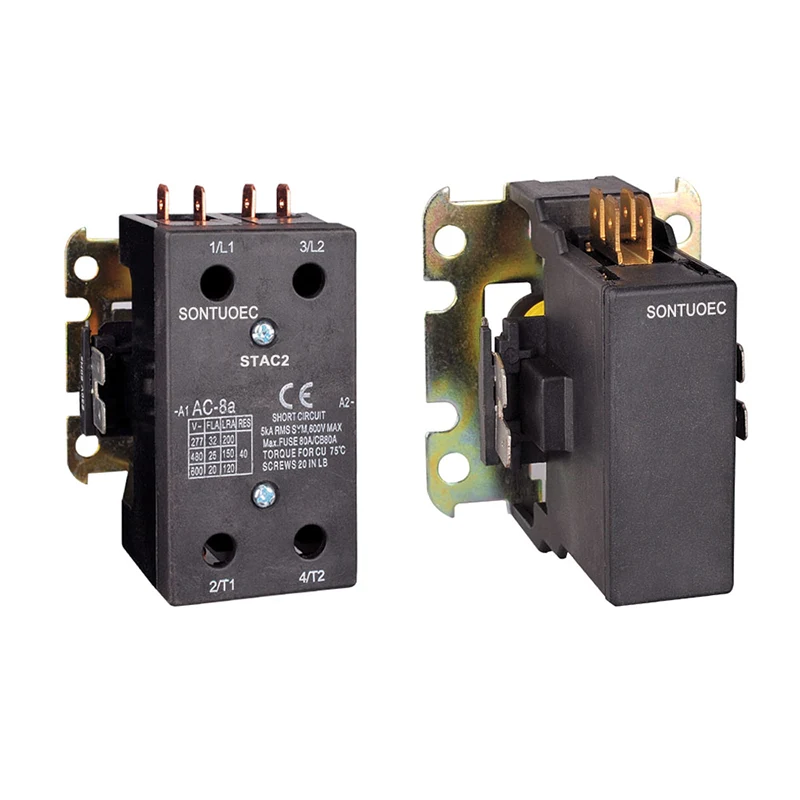

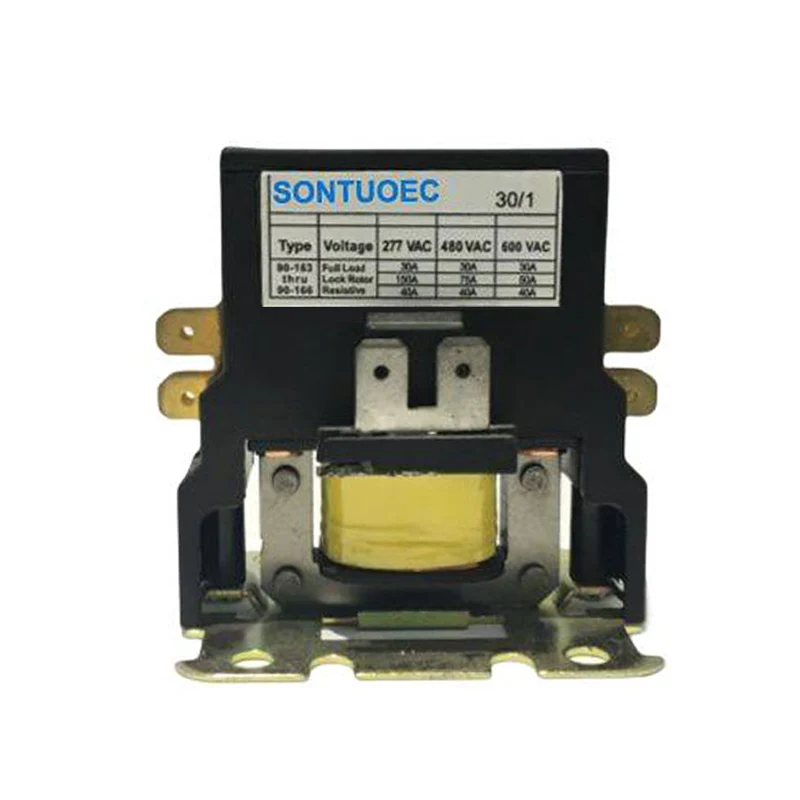

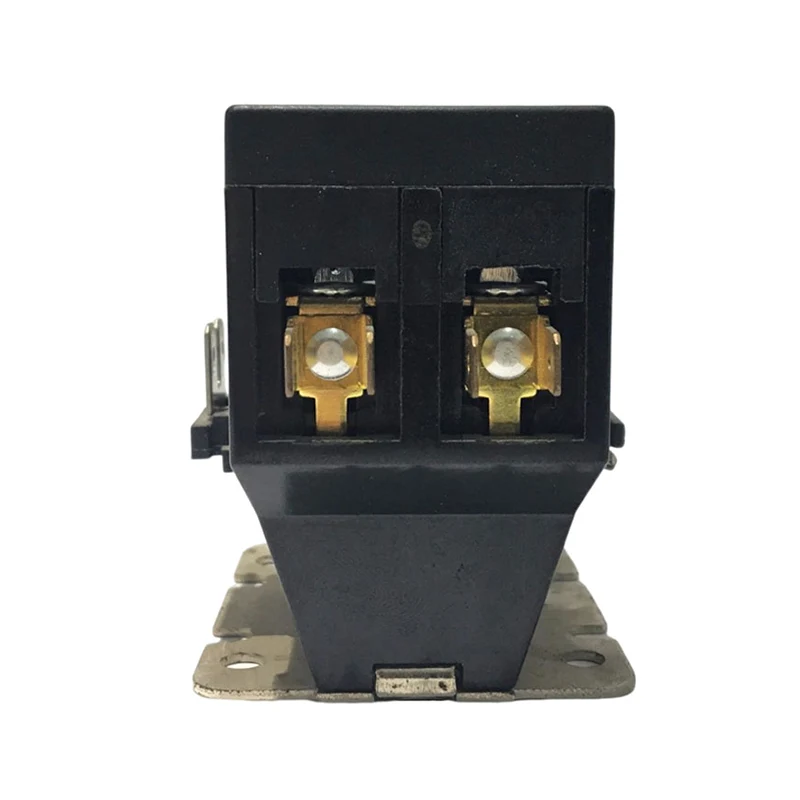

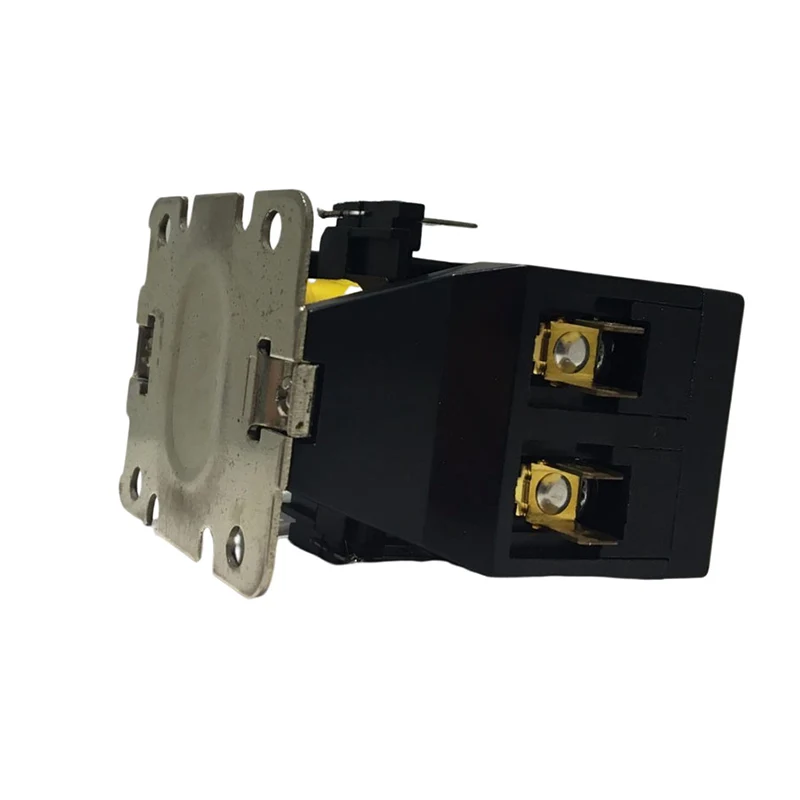

Qaboojinta hawo hawo

Qaboojinta hawada ayaa qeexitaanka ujeedada AC-ga AC-ga waxaa loogu talagalay in loo isticmaalo qaboojiyaha, qaboojinta, iyo systent kuleylka korantada. Xiriirinta awoodda waxaa lagu sameyn karaa labada marinnadaha foosha oo leh xiriir deg deg ah ama marin-ku-dhaf lugta leh oo leh isku xirnaan deg deg ah

Soo dir weydiin

Sharaxaada Alaabta

Noocee ka ah maya	Culeys buuxa	AMAHAADA AMA (a)	Plad Maya.	Korantada korantada ( V)	Kulanka korantada (v)	Max HP		-
Noocee ka ah maya	AMPS (a)	AMAHAADA AMA (a)	Plad Maya.	50 / 60hz	Kulanka korantada (v)	Maanyo danab (V)	Doob Marxalad	Saddex Marxalad
Cjx9-20 / 1	20	30	1	24	240/277	120	1.5	-
Cjx9-20 / 1.5			1.5
Cjx9-20 / 2			2
Cjx9-20 / 3			3	120	480	240/270	3	7.5
Cjx9-20 / 4			4	208/240	600	480/600	-	7.5
Cjx9-25 / 1.5	25	35	1.5	24	240/277	120	2	-
Cjx9-25 / 2			2	24	240/277	120	2	-
Cjx9-25 / 3			3	120	480	240/270	5	7.5
CjX9-25 / 4			4	208/240	600	480/600	-	15/20
Cjx9-30 / 1.5	30	40	1.5	24	240/277	120	2	-
Cjx9-30 / 2			2	120	480	240/270	5	10
Cjx9-30 / 3			3	208/240	600	480/600	-	15/20
Cjx9-30 / 4			4	208/240	600	480/600	-	15/20
Cjx9-40 / 2	40	50	2	24	240/277	120	3	-
Cjx9-40 / 3	40	50	3	120	480	240/270	7.5	10
Cjx9-40 / 4	40	50	4	208/240	600	480/600	-	15/20
Cjx9-50/2	50	60	2	24	240/277	120	3	-
Cjx9-50 / 3	50	60	3	120	480	240/270	10	15
Cjx9-50 / 4	50	60	4	208/240	600	480/600	-	25/25
Cjx9-60 / 2	60	70	2	24	240/277	120	5	-
Cjx9-60 / 3	60	740	3	120	480	240/270	10	20
Cjx9-60 / 4	60	70	4	208/240	600	480/600	-	30/30
Cjx9-75 / 2	75	85	2	24	240/277	120	5	-
Cjx9-75 / 3	75	85	3	120	480	240/270	15	25
Cjx9-75 / 4	75	85	4	208/240	600	480/600	-	40/40
Cjx9-90 / 2	90	100	2	24	240/277	120	7.5	-
Cjx9-90 / 3	90	100	3	120	480	240/270	20	30
Cjx9-90 / 4	90	100	4	208/240	600	480/600	-	50/50

Maaddooyinka	Xariirka xiriirka iyo xamuulka side waa tayo sare resin heer-heer-heersare-fasalka
U dhexeeya heerkulka	-40 ° F illaa 150 ° F; -5- + 40
Nolosha farsamada (culays la'aan)	U hoggaansanaanta sharaxaada UL iyo AI
Nolosha korantada	U hoggaansamida tilmaamaha UL iyo ARI Caadi ah
Miisaan (qiyaastii)	9.25 oz
Xirmooyinka soo noqnoqda	50 / 60hz
Chil dahaarka	Fasalka B (130ºC)
Dhammaynta	Cinjiraha cadaadiska iyo labanlaab 1/4 Q.C
Qalid	85% coltage isku-darka ah; 110% badbaadada ugu badan qalid
Wareegga waajibaadka	Soconeya

Qaab-dhismeedka iyo astaamaha

Qaab dhismeedka:

Nidaamka Elektarogagga: Waxaa ku jira qaybo ka mid ah xirmooyinka, cores, iwm.

Nidaamka Xiriirka: waxaa ku jira xiriiriyaha ugu weyn iyo xiriirka kaabayaasha ah. Xiriirka ugu weyn waxaa loo isticmaalaa in lagu qaado lagu qiimeeyay nidaamka qaboojinta hawada, halka taabashada kaabayaasha ah loo isticmaalo in lagu garto gudbinta iyo ra'yi-celinta ee calaamadaha kontaroolka.

Qalabka demida arc ee bambaanooyinka ah

Shell iyo Qalabka kuleylka ee kuleylka: Waxaa loo isticmaalaa in lagu ilaaliyo qaybaha gudaha ee jawiga bannaanka una bixiya shaqada kuleylka ee loo baahan yahay.

Tilmaamaha:

Takhasuska: Waxaa loogu talagalay nidaamyada qaboojinta hawada si loo haqabtiro baahiyaha nidaamyada qaboojinta hawada ee kontaroolka korantada.

Isku-hallayn: Nidaamka Xiriirka wuxuu ka kooban yahay qalab tayo sare leh oo leh warar wanaagsan koronto iyo u adkeysi si loo hubiyo hawlgal muddada fog ah.

Nabdoonaanta

Is-waafajinta: la jaan qaada nidaamyo ballaaran oo hawo-qaboojiye ah iyo nidaamyo kontorool koronto, ku habboon rakibidda iyo guddi.

Mabda'a shaqada

Marka xididdada qaboojiyaha 2p ee qaboojiyaha AC-ga uu xoogga yahay, xudunta birta ayaa noqota magnetic oo ay soo jiidataa nidaamka xiriirka si loo xiro, sidaas darteed ku xirida nidaamka qaboojinta isha korantada. Marka xijaabka la xakameeyo, xudunta birta ayaa lumisa magtitism-ka oo nidaamka xiriirka waxaa lagu kala saari doonaa ficilka guga, sidaas darteedna ay ka takhalusto nidaamka qaboojinta isha korantada. Sidan, xifaynta ayaa ogaan kara xakameynta fog ee nidaamka qaboojinta.
