Qalooca D-ka McB McB jahwareerka wareega

Adigoo u hoggaansamaya dhowr heerar nabadgelyo oo caalami ah iyo shahaadooyin awood leh, qalooc D-ka qafiif ah McB McB Paresler Brucerere-ka ayaa bixiya difaac la isku halleyn karo oo loogu talagalay nidaamyada korantada oo si weyn loogu isticmaalo barnaamijyada kala duwan ee nabdoonaanta iyo xasilloonida ayaa loo baahan yahay. Markaad xulato oo aad u isticmaasho qalooca D MCHBS, waxaa lagu talinayaa in xulashada lagu saleeyo shuruudaha nidaamka korantada ee gaarka ah iyo in lagu rakibo astaamaha iyo xilliyayaasha la xiriira ee la xiriira.

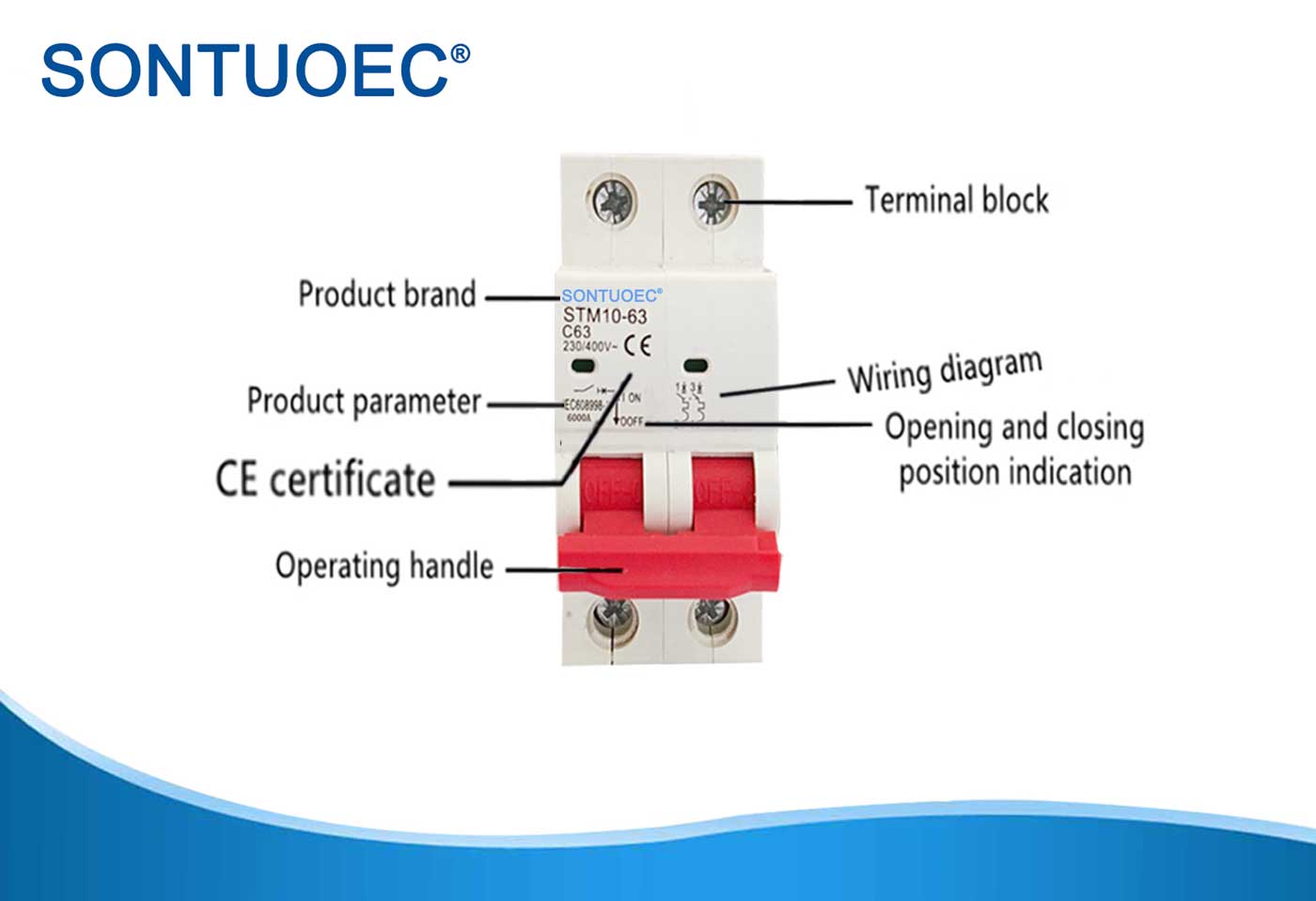

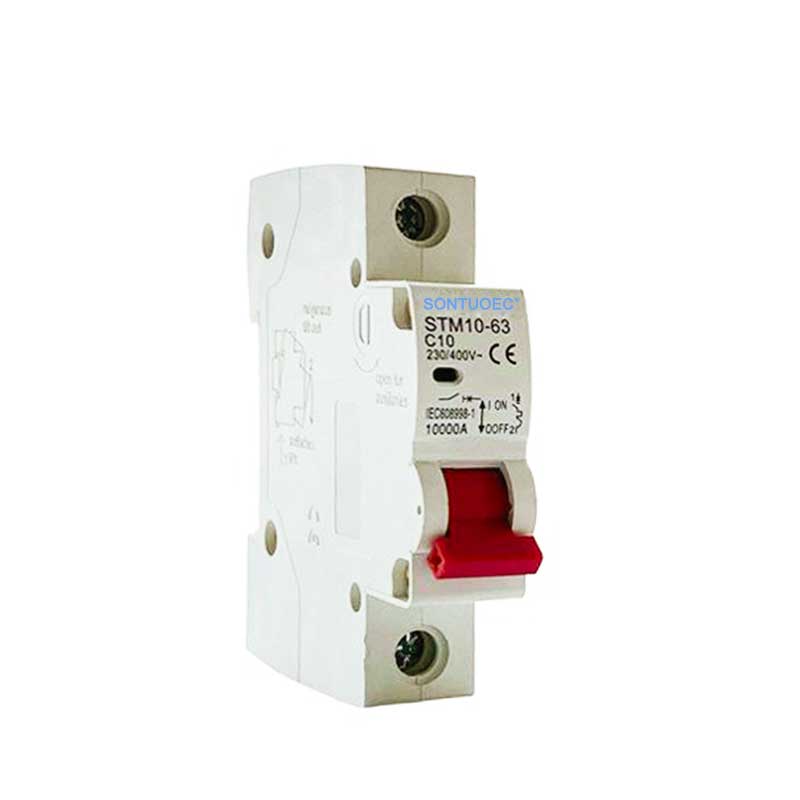

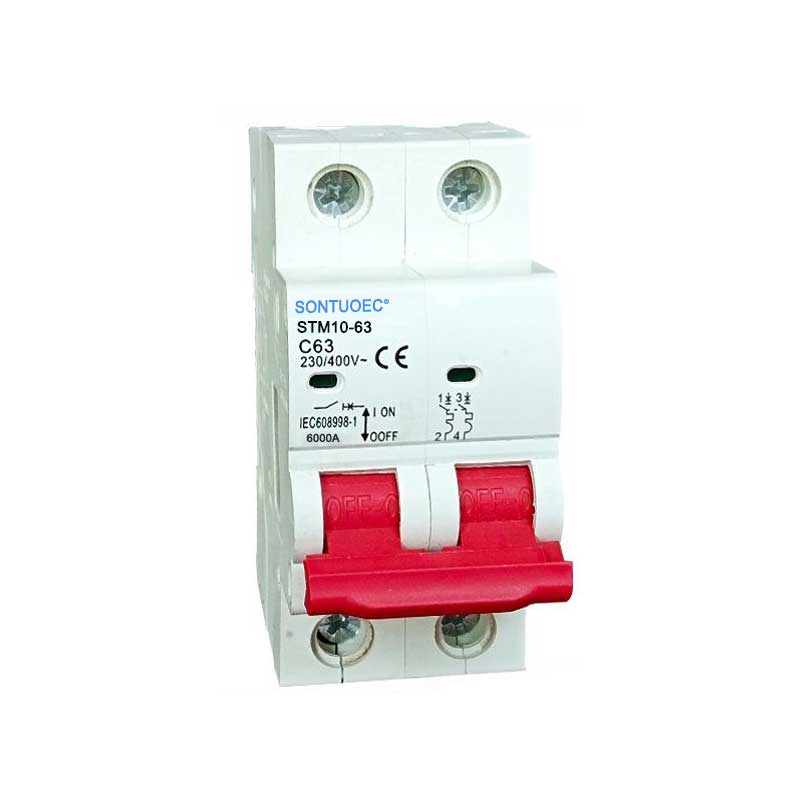

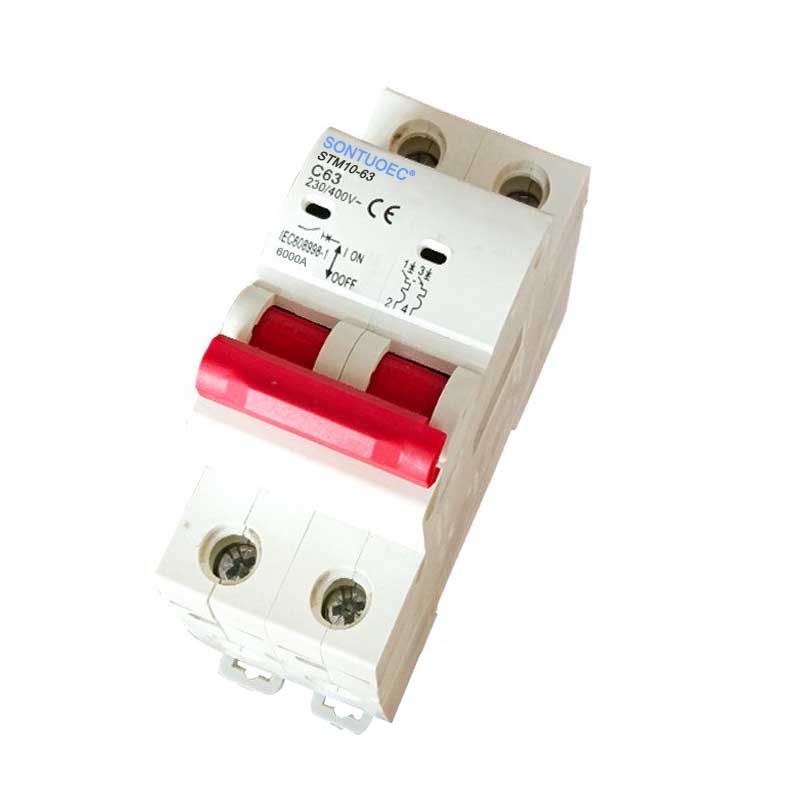

Qaabka:STM10-63

Soo dir weydiin

Sharaxaada Alaabta

Caadi ah		IEC / EN 6088-1-1
Korato astaamaha	Lagu qiimeeyay hadda	A	1,2,410,16,20,25,35,32,40,50,50,6a
	Ul shiro	P	1p, 2p, 3p, 4p
	Korantada lagu qiimeeyay	V	AC 230/400
	Voltage-kulation-ka ui	V	500
	Soo noqnoqoshada soo noqnoqda	Dhutaataa ah	50/60
	Awoodda jebinta	A	3000, 4500, 6000
	Qiimeeyay ka hortagga korantada (1.2 / 50) ump	V	4000
	Takhasuseeda Dielectric-ka wuxuu tijaabiyaa korantada ee Ind.freq.for 1 daqiiqo	KV	2
	Shahaadada wasakhda		2
	Astaamaha siidaynta ee Thermo-magdhane		B, c, d
Mashiin ah astaamaha	Nolosha korantada	t	4000
	Nolosha farsamada	t	10000
	Shahaadada Ilaalinta		Ip20
	Heerkulka tixraaca ee dejinta ee sheyga kuleylka	ºC	30
	Heerkulka deegaanka (oo leh celcelis ahaan maalinlaha ah ≤35ºC)	ºC	-5 ~ + 40 (codsi gaar ah fadlan tixraac sixitaanka magdhowga heerkulka)
	Heerkulka kaydinta	ºC	-25 + 70
Rakaabis	Nooca Xiriirka Terminal		Cable / Pin-Pin-nooca Busbar
	Cabbirka marinka dusha sare / hoose ee fiilada	mm2	25
		W	18-3
	Cabbirka ugu sarreeya / hoose ee baska	mm2	25
		W	18-3
	Adkeysi torque	N * m	2
		Gudaha-lbs	18
	Biyo		On tareenka din 60715 (35mm) iyada oo loo adeegsanayo aaladda si dhakhso leh
	Xiriir		Laga bilaabo dusha sare iyo hoose

Astaamaha wax soo saarka

 Ku qiimeeya hadda iyo korantada

 Oggolaanshaha ka bixista: Qalooca D MCBs ayaa si gaar ah ugu habboon nidaamyada xamuulka sare iyo nidaamyada xasaasiyadeed ee abuuraya qalab fara badan, sida nidaamyo yaryar, sida nidaamyo qaybinta korantada, nidaamyada korantada, iyo nidaamyada saadka korantada, iyo nidaamyada saadka korantada. Jidkeeda isla markiiba waa 10-40 jeer oo lagu qiimeeyay hadda, taas oo macnaheedu yahay inay si dhakhso leh u dhimayso wareegyada wareegga iyo ka ilaaliya qalabka waxyeelada inta ay si lama filaan ah u kordhaan xilliga hadda jira.

 Ilaalinta wareega-gaagaaban

 Heerarka amniga iyo shahaadooyinka: Alaabooyinkani badanaa waxay u hoggaansamaan dhowr heerar nabadgelyo oo caalami ah, sida EN / IEC 60898.1, ICC, ICC, si loo hubiyo in badeecaduhu ay yihiin kuwo amaan ah oo la isku halleyn karo.

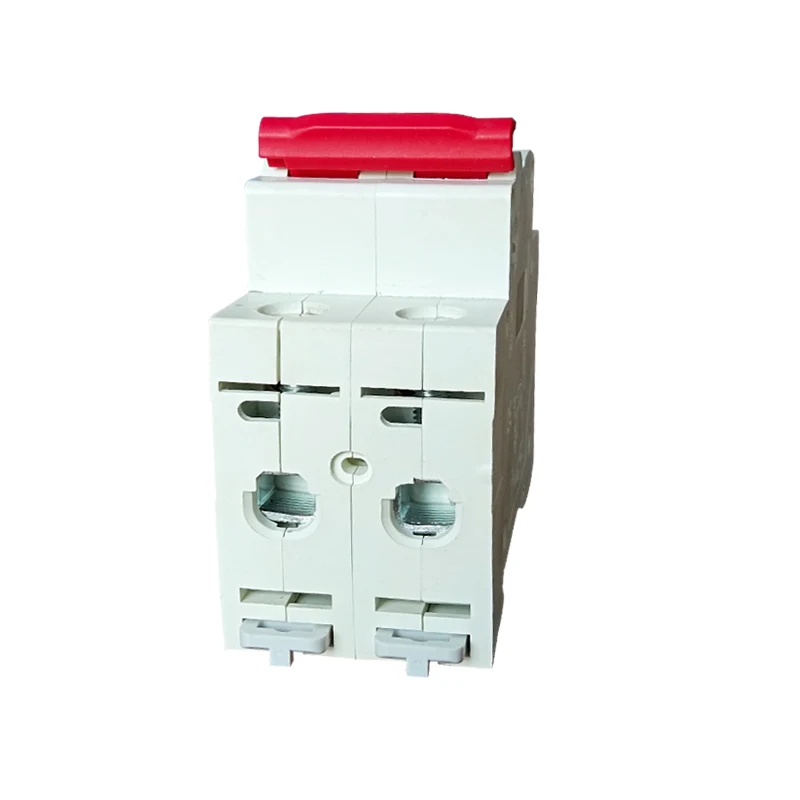

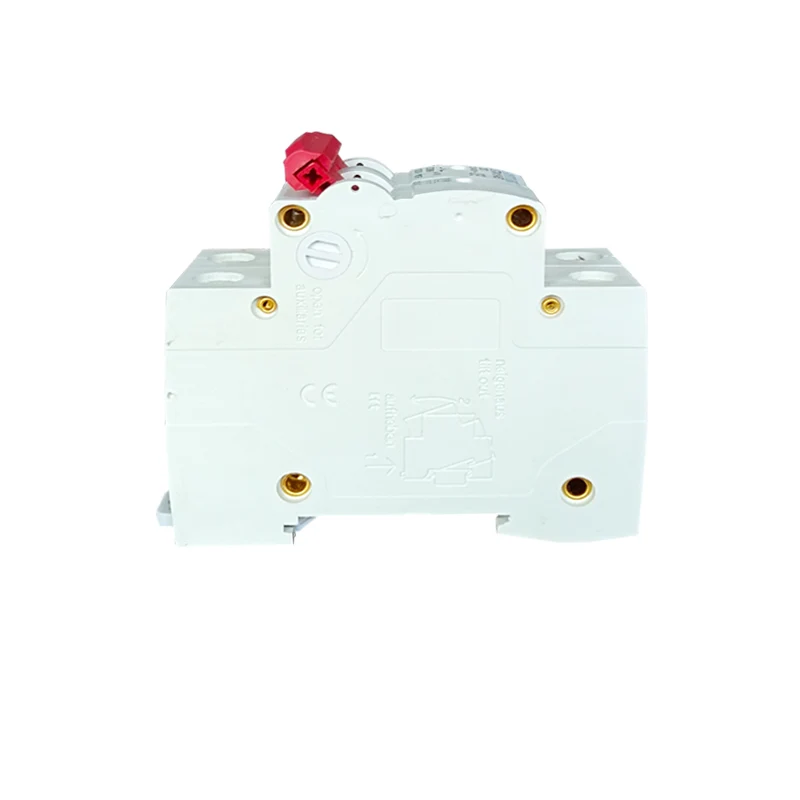

Curve D MCB Miniature Circuit Breaker
