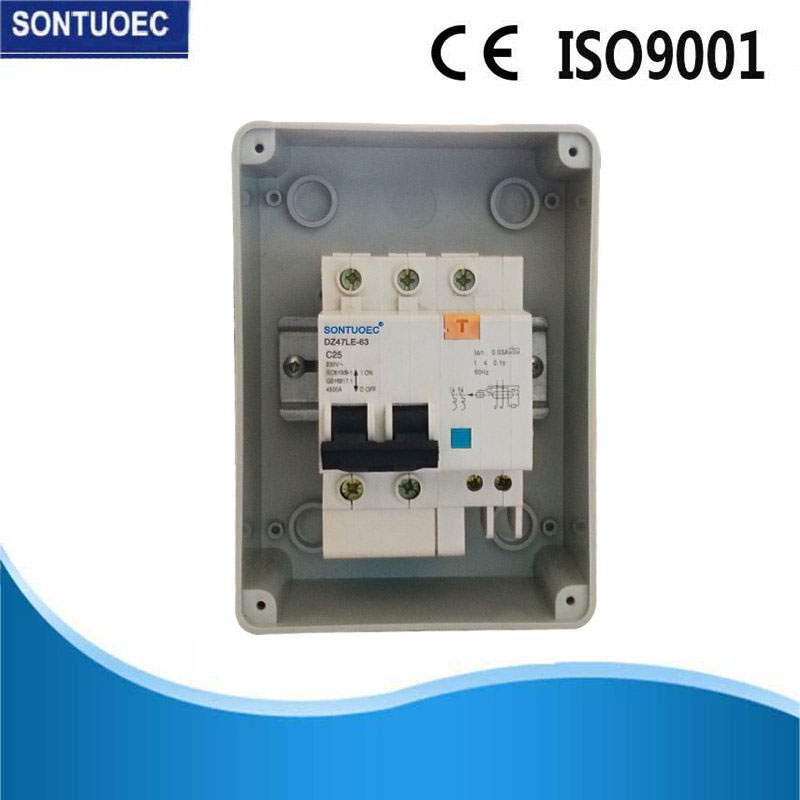

Dz47le-63 Taxanaha Midaysan Cabbirka Muuqaalka Wareegga RCBO

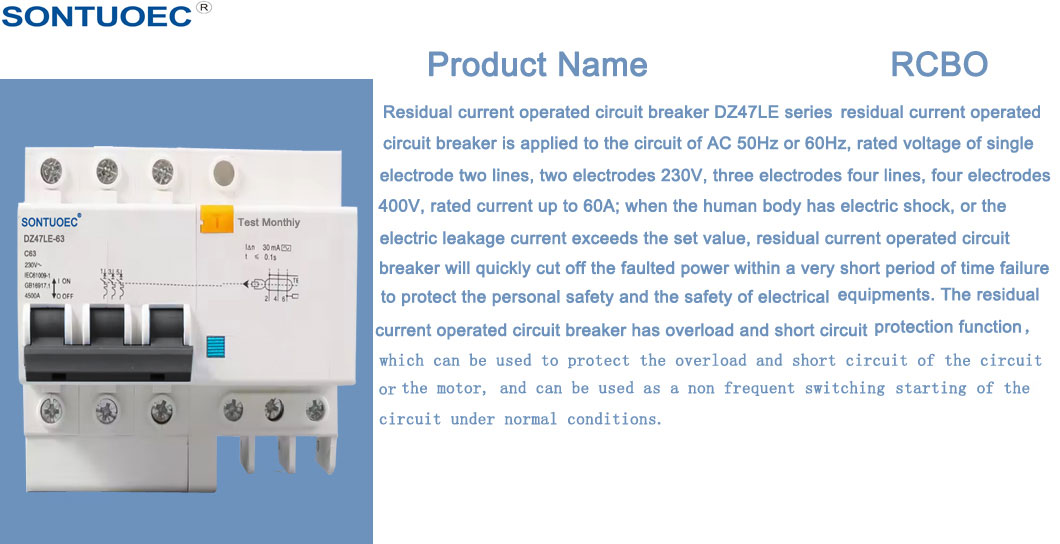

1.RCBO waxaa inta badan lagu isticmaalaa AC 50Hz(60Hz), danab lagu qiimeeyay 230/400V, lagu qiimeeyay hadda 6A ilaa 63A nidaamka qaybinta tamarta hoose. RCBO waxay la mid tahay shaqada MCB+RCD; Waxaa loo adeegsadaa ilaalinta shoogga korontada iyo ilaalinta xiriirka dadban ee bini'aadamka, ilaalinta qalabka korontada marka jirka bini'aadamku taabto koronto ama shabkada korontadu ay dhaafto qiimaha la sheegay, iyo culeyska iyo ilaalinta wareegga gaaban; Waxa kale oo ay noqon kartaa shaqaale aan soo noqnoqonaynin wareegga, si duurgal ah loogu isticmaalo deegaanka iyo degmada ganacsiga. Waxay u hoggaansantaa heerka IEC61009-1. 2.MCB waxaa loo isticmaalaa AC50/60Hz, danab lagu qiimeeyay 230V3, 4 tiir 400V, lagu qiimeeyay hadda ilaa 63A culayska xad dhaafka ah iyo ilaalinta wareegga gaaban iyo sidoo kale beddelashada aan joogtada ahayn ee xaaladaha caadiga ah.Waxa loo adeegsadaa warshadaha, ganacsiga iyo qoyska. Alaabtani waxay u hoggaansamaysaa heerka IEC60898. 3.RCCB waa in waafaqsan heerarka IEC61008.Waxay gooyn kartaa wareegga qaladka isla markiiba munaasabadda khatarta shoogga ama daadinta dhulka ee trunkline.Sidaas darteed waxay ku habboon tahay in laga fogaado khatarta naxdinta leh iyo dabka uu keeno daadinta dhulka. Waxaa loo isticmaali karaa wareegyada ilaa hal marxalad 240V, saddex, marxalad 50.6

Qaabka:DZ47LE-63

Soo dir weydiin

Sharaxaada Alaabta

Tilmaamaha:

RCBO

	Heerka	Unug	IEC/EN 61009-1
Koronto	Habka		Nooca elegtarooniga ah
sifooyinka	Nooca(qaabka mowjadda dhulku ka daadanayo ayaa la dareemay)		A, AC
	Sifada sii daynta Thermo-magnetic		B,C,D
	Lagu qiimeeyay ln	A	6,10,16,20,25,32,40,63
	Tiirarka	P	1P+N, 3P+N
	Danab lagu qiimeeyay Ue	V	AC 230, 400
	Dareenka la qiimeeyay I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Samaynta iyo jabinta awoodda haraaga oo la qiimeeyay l△m	A	500
	Awooda wareega gaaban ee la qiimeeyay Icn	A	6000
	Waqtiga nasashada ee hoos yimaada I△n	S	≤0.1
	Inta jeer ee la qiimeeyay	Hz	50/60
	La qiimeeyay xamaasad adkaysi u leh (1.2/50) Uimp	V	4000
	Korontada tijaabinta Dielectric at ind.Freq 1min	kV	2
	Danab dahaarka Ui	V	250
	shahaadada wasakhowga		2
Tilmaamaha makaanikada	Nolosha korontada		4000
	Nolosha makaanikada		10000
	Tusiyaha khaladka hadda		HAA
	shahaadada ilaalinta		IP20
	Heerkulka deegaanka	ºC	-5~+40(Codsi gaar ah fadlan tixraac
	(oo leh celcelis maalinle ah≤35ºC)	ºC	hagaajinta heerkulka heerkulka)
	Heerkulka kaydinta	ºC	-25~+70
Rakibaadda	Nooca isku xirka Terminalka		Cable/Pin-nooca baska/buska nooca U
	Cabbirka goobta sare/hoose ee fiilada	mm2	25
	Cabbirka goobta sare/hoose ee fiilada	AWG	5月18日
	Cabbirka meesha sare/hoose ee baska	mm2	25
	Cabbirka meesha sare/hoose ee baska	AWG	3月18日

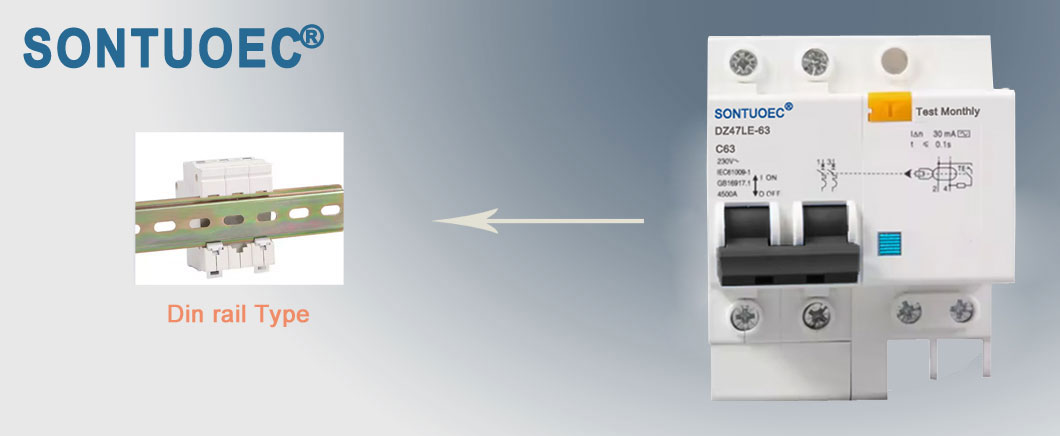

	Koritaanka		DIN tareenada EN 60715 (35mm) iyadoo la adeegsanayo qalab degdeg ah
	Isku xirka		Ka soo bilow

Muuqaalka Guud:

1. Bixinta ka-hortagga khaladka dhulka/ daadinta hadda iyo shaqada go'doominta

2. Heer sare oo heer gaab ah oo u adkaysan kara3. Lagu dabaqi karo xidhiidhka baska nooca pin/fargeetada ah

5. Si otomaatig ah u gooya wareegga marka cilada dhulku/ daadinta hawada ay dhacdo oo ay dhaafto dareenka la qiimeeyay

6. Ka madax banaan korontada iyo korantada khadka, oo ka madax banaan faragelin dibadeed, isbedbeddelka korantada.

MCB

Qaabka	MCB
Heerka	IEC60898-1
Tiirka	1P,2P,3P,4P
Qallooca	B,C,D
Awooda wareega gaaban ee la qiimeeyay (Icn)	3KA,4.5KA,6KA,10KA
Hadda (gudaha) lagu qiimeeyay	1,2,4,6,10,16,20,25,32,40,50,63A
Voltage lagu qiimeeyay (Un)	AC230(240)/400(415)V
Siidaynta magnetic	Qallooca B: inta u dhaxaysa 3 iyo 5 in
	Qallooca B: inta u dhaxaysa 3 iyo 5 in
	C qalooca: dhexeeya 5 iyo 10 In
	C qalooca: dhexeeya 5 iyo 10 In
	D qalooca: inta u dhaxaysa 10 iyo 14In
	D qalooca: inta u dhaxaysa 10 iyo 14In
Adkeysiga makaanik elektarooniga ah	in ka badan 6000 wareeg C

RCCB


	Heerka	Unug	IEC/EN 61008-1
Koronto	Nooca(qaabka mowjadda dhulku ka daadanayo ayaa la dareemay)		AC, A
Muuqaal	Hadda lagu qiimeeyay gudaha	A	16,25,32,40,63
	Tiirarka	P	2,4
	Danab lagu qiimeeyay Ue	V	230/400
	Dareenka la qiimeeyay I n	A	0.01,0.03,0.1,0.3
	Danab dahaarka Ui	V	500
	Samaynta hadhaaga la qiimeeyay iyo	A	630
	jabinta awoodda waxaan m
	Xilliga wareega gaaban I c	A	4500/6000
	Fiyuuska SCPD	A	6000
	Waqtiga nasashada ee hoos yimaada I n	s	<0.1
	Inta jeer ee la qiimeeyay	Hz	50/60
	shahaadada wasakhowga		2
MakaanikaI	Nolosha korontada	t	4000
sifooyinka	MechanicaI Iife	t	20000
	Tilmaamaha khaladka hadda jira		Haa
	shahaadada ilaalinta		IP20
	Heerkulka deegaanka	C	-25C ilaa 40C
	(oo leh celcelis maalinle ah 35)
	Heerkulka kaydinta	C	-25C ilaa 70C
