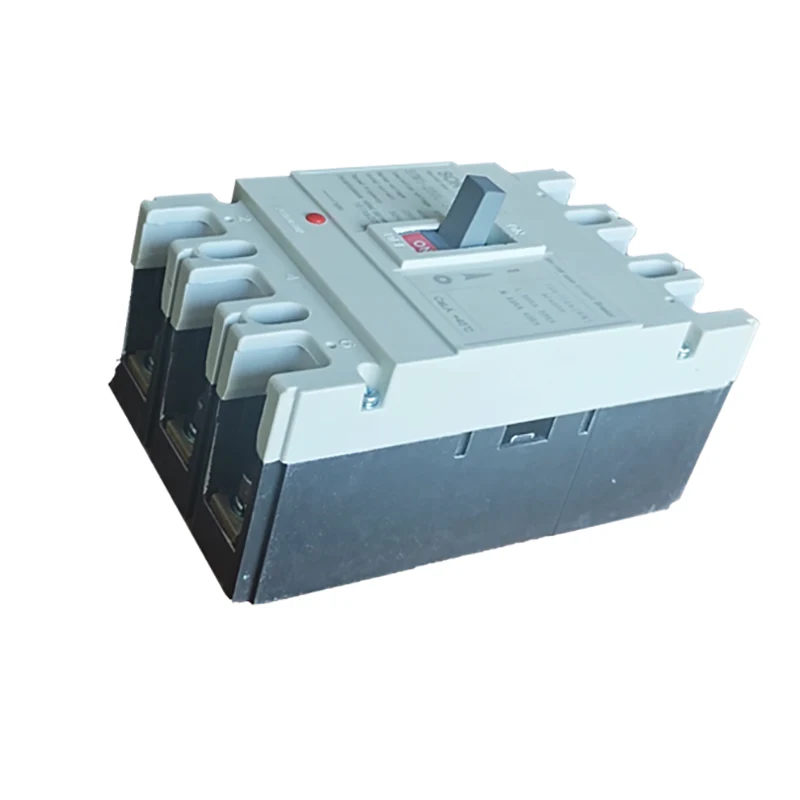

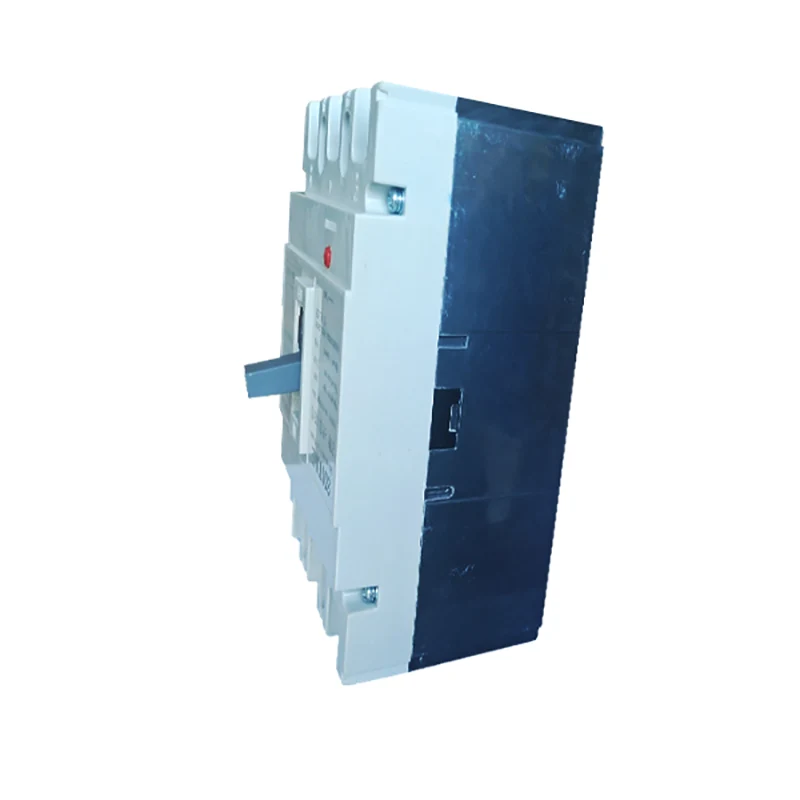

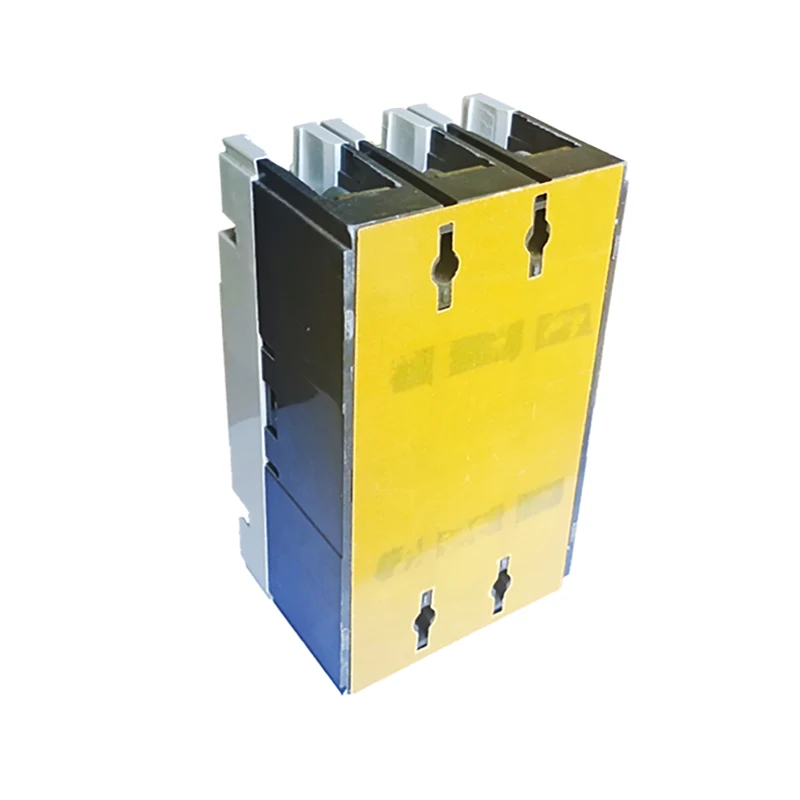

Jeexitaanka Kiis La Sameeyey Koronto

Qalabka Korontada ee Molded Case Circuit Jebiye waa nooc ka mid ah qalabka korantada oo leh hawlo ilaalin sida culeys xad dhaaf ah, wareeg gaaban iyo koronto hooseysa. Mabda'a shaqadeeda ayaa ah in marka la eego xaaladaha shaqada ee caadiga ah, jebiyeyaashu ay ku jiraan xaalad xiran, marka wareegga wareegga, wareegga gaaban ama hoos u dhigista tamarta iyo cilladaha kale, jebinta wareegga ayaa si toos ah u gooyn doonta wareegga, si loo ilaaliyo wareegga iyo badbaadada qalabka.

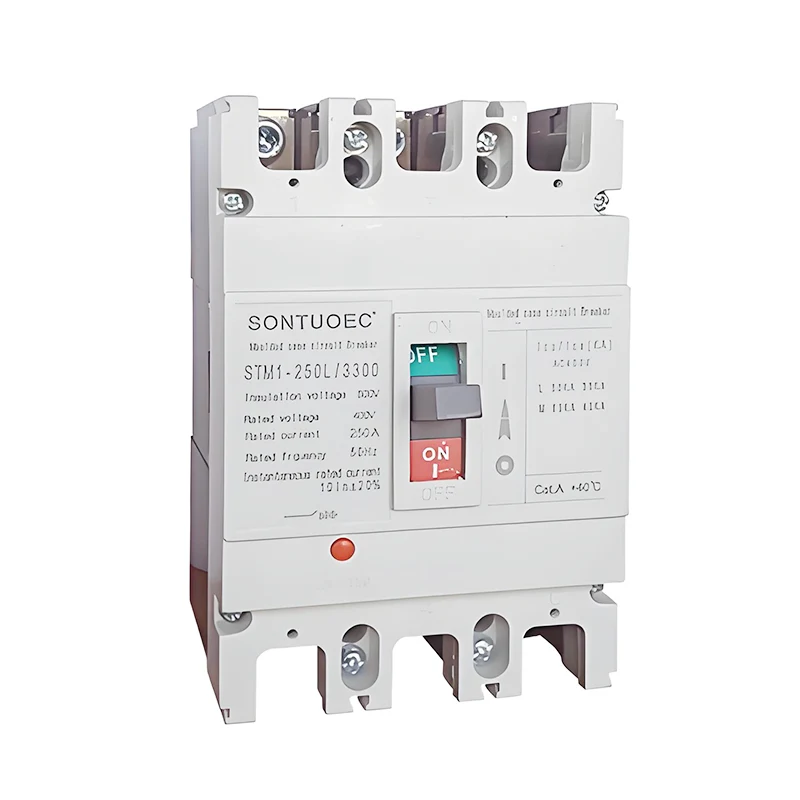

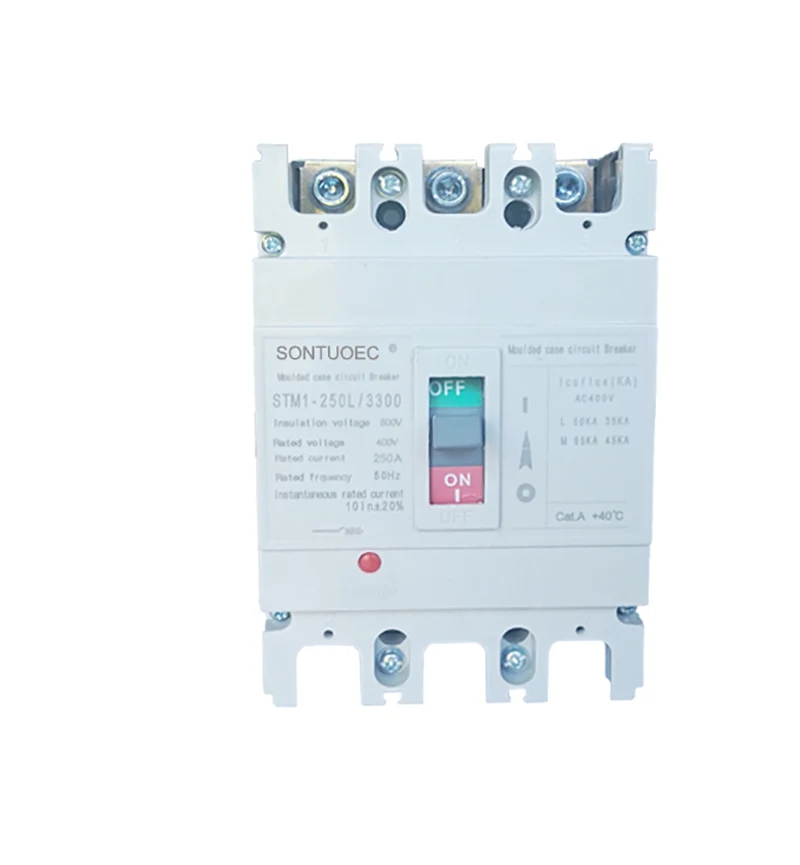

Qaabka:STM1-250L

Soo dir weydiin

Sharaxaada Alaabta

Qaabka		STM1-125			STM1-250			STM1-400			STM1-630			STM1-800			STM1-1250
Lagu qiimeeyay Cortirucus curert		125			250			400			630			800			1250
Lagu qiimeeyay Curert hn(A)		16,20,25,32,40.50			100,125,140,160,			250,315,350,400			400,500,630			630,700,800			80,010,001,250
		63,80,100,125			180,200,225.25
Lagu qiimeeyay Hawlgelinta Votage Ue(V)DC								500,550,7			501,000
Qiyaasta Isuation Votage UKV)		1000			1000			1500			1500			1500			1500
Uimp (KV)
Tijaabi Votage One Miute(V)		3500			3500			3500			3500			3500			3500
Jebinta Awoodda (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku(1cs=75%ku)	250V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750V	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Mechaarical He	Waqtiyada	7000			7000			4000			4000			2500			2000
Nolosha Korontada	Waqtiyada	2000			2000			1000			1000			800			600
Waqtiyada nasashada (ms)		20			20			20			20			20			20
Goobta Rakibaadda		Meel kasta
awoodda bolator		haa
Heerka		IEC 60947-2, IEC60947-1, GB 14048, GB 14048-2
Heerkulka (C)		25 ℃-50 ℃
Hoos u dhaca Ilaalinta		b20
Agabka		OF/SD/MX
Fogaanta Arcing (mm)		250

Qaabka MAYA	STM1-250L/3300
Dhex-daminta Arc-daminta	Hawada
HEERKA:	IEC 60947-2
Qaab dhismeedka	MCCB
Nooca	Moulede case Circuit jabiye
Shahaado	CE
Ansixinta	CE, ISO9001
Waqtiga Bixinta	Gudaha 20 maalmood
Tilmaamid	63A-630A
Asal ahaan	Wenzhou Zhejiang
Awood wax-soo-saarka	2000 oo xabbo/toddobaadkii
Xawaaraha	Nooca caadiga ah Wareegtada
Rakibaadda	go'an
Lambarka tiirarka	3P 4P
Shaqada	Caadiyan Wareegtada, Ilaalinta Fashilka Wareega-Jabiye, Ilaalinta joogtada ah
Qiimaha	Warshada Qiimaha
Waqtiga Damaanada	12 bilood
Xidhmada Gaadiidka	Gudaha Sanduuqa/ Kartoon
Astaanta ganacsiga	SOTUOEC,WZSTEC,SONTUNE,IMDEC
Koodhka HS	8536200000

Qaab dhismeedka iyo sifooyinka

Qaab dhismeedka: jebiye kiis qaabaysan koronto badanaa wuxuu ka kooban yahay nidaamka xiriirka, nidaamka daminta fallaadhaha, habka hawlgalka, weeraryahan, iyo qolof iyo qaybo kale.

Astaamaha:

Waxay leedahay awood jabin sare iyo xasilloonida kulaylka firfircoon ee wanaagsan.

Qolofku wuxuu ka samaysan yahay dab-celiya, walxo dahaarka u adkaysta, oo leh waxqabad badbaado sare leh.

Habka hawlgalka waa dabacsan yahay oo la isku halayn karo, kaas oo ku habboon isticmaalayaasha inay ku shaqeeyaan gacan ama koronto.

Xidhiidhiyuhu wuxuu leeyahay shaqooyin ilaalin oo kala duwan, wuxuuna fulin karaa ficillo u dhigma iyadoo loo eegayo cilladaha kala duwan ee wareegga.

Shaqada iyo isticmaalka

Functions: Qalabka korantada ee kiis-jabiya wuxuu leeyahay hawlo ilaalin oo kala duwan sida ilaalinta culeyska, ilaalinta wareegga gaaban, ilaalinta korantada iyo ilaalinta daadinta. Waxaa ka mid ah, ilaalinta culeyska xad-dhaafka ah waxay ka dhigan tahay in marka wareegga la kordhiyo, qalabka wareegga uu si toos ah u gooyo wareegga si looga hortago in qalabka waxyeello u geysto kulaylka awgeed; ilaalinta wareegga gaaban micnaheedu waa marka wareegga gaaban uu ku dhaco wareegga wareegga, jebiyeha wareegga ayaa si dhakhso ah u jari kara cilladda hadda jirta si looga hortago dabka iyo shilalka kale ee badbaadada; Ilaalinta hoos-u-dhaca waxay ka dhigan tahay marka korantada sahayda korantadu ay ka hooseyso qiimaha la qiimeeyay, jebiyeyaashu si toos ah ayuu u gooyn karaa wareegga si uu uga ilaaliyo qalabka waxyeellada; iyo ilaalinta daadinta micneheedu waxa weeye marka dheecaanku ka dhaco wareegga, jebiyeyaashu waxay gooyn karaan wakhtiga ku habboon korontada si loo ilaaliyo badbaadada shakhsi ahaaneed. Ilaalinta daadinta macneheedu waxa weeye in xadhig-gudbiyehu uu gooyo korontada wakhtiga marka uu jiro dareere wareegga si loo ilaaliyo badbaadada shakhsi ahaaneed.

Adeegsiga: jebiyeyaasha kiis korantada qaabaysan ayaa si weyn loogu isticmaalaa nidaamyada korantada ee guryaha, ganacsiga, warshadaha iyo gaadiidka. Goobta la dego, waxaa loo isticmaalaa in lagu ilaaliyo badbaadada wareegyada guriga iyo qalabka korontada; goobta ganacsiga, waxaa loo isticmaalaa in lagu ilaaliyo nidaamyada korantada ee dhismayaasha waaweyn iyo goobaha ganacsiga; dhinaca warshadaha, waxaa loo isticmaalaa in lagu xakameeyo oo lagu ilaaliyo hawlgalka nabdoon ee qalabka warshadaha iyo mashiinada; goobta gaadiidka, waxaa loo isticmaalaa in lagu ilaaliyo hawlgalka xasiloon ee nalalka taraafigga, calaamadaha tareenada iyo qalabka kale.
