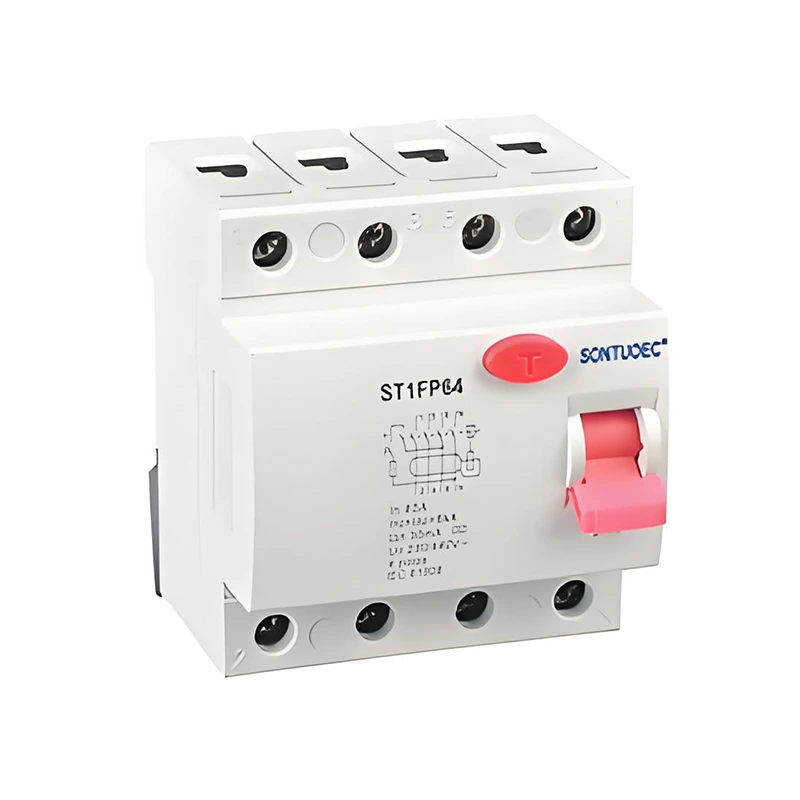

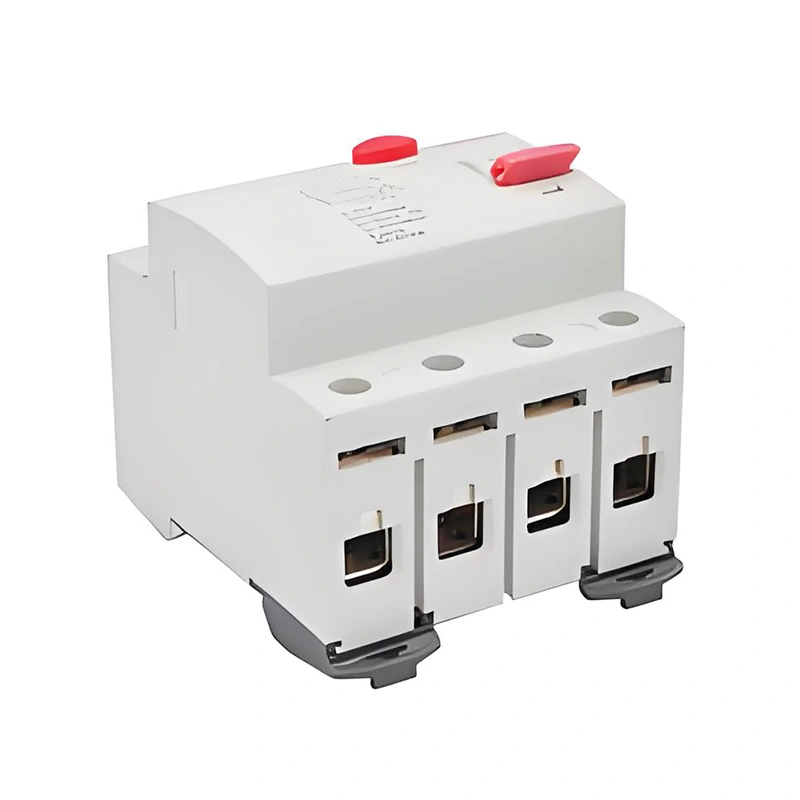

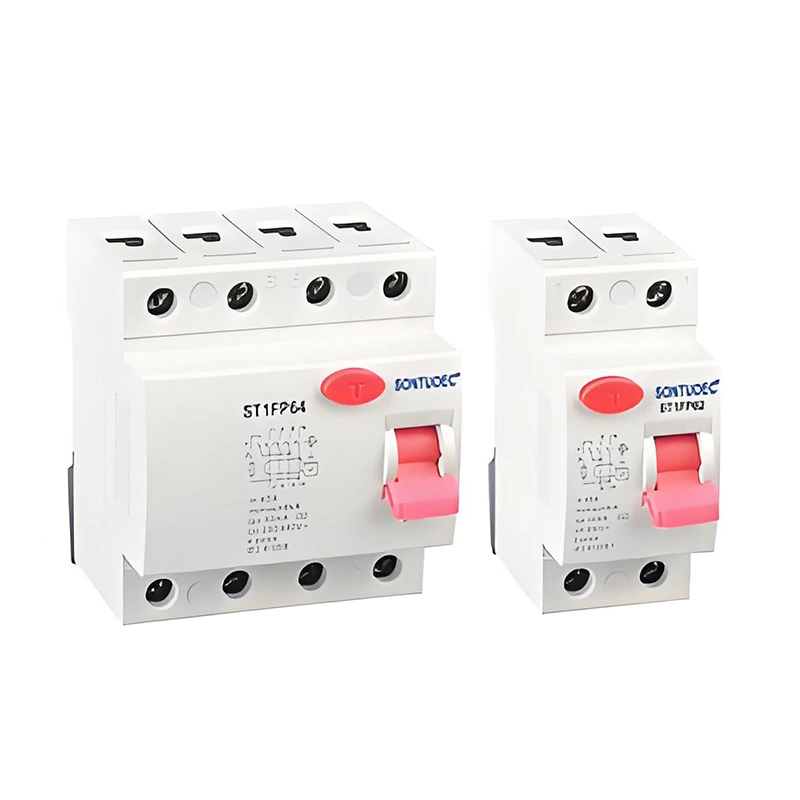

Nooca Elektaroonigga ah RCCB

Marka hadhaagga haraaga ee ka hadlaya wareegga produit-ka ayaa ka badan qiime-dhimista, nooca elektaroonigga ah ee RCCC-ga elektiroonigga ah ayaa si dhaqso leh u dhaqmi doona si loo jaro wareegga, sidaa darteed kahortaga shilalka 'korantada' iyo dabka korantada. Elektiroonigga RCCBs waxay isticmaashaa qaybo elektiroonig ah iyo microprocessess iyo teknolojiyad kale si ay u bixiyaan xasaasiyad weyn iyo saxsanaan.

Qaabka:ST1PF64

Soo dir weydiin

Sharaxaada Alaabta

Muusikasho bada			IEC / EN61008.1
Korato	Nooca (Nooca Wave ee Bixinta Bixinta Dhulka ee dareensan)		Nooca elektro-magnetic, nooca elektiroonigga ah
astaamaha	Lagu qiimeeyay hadda	A	Iyo, iyo
	Ul shiro	P	2,4
	Voltage cunay	V	AC 240 / 415V; AC 230 / 400V
	Lagu qiimeeyay hadda		16,25,32,40,63a
	Dareenka la qiimeeyay i △ n	A	0.01,0.03,0.1,0.3,0.5
	Voltage-kulation-ka ui	V	500
	Samaynta haraaga haraaga ah iyo	A	630
	jebinta awooda I △ m	A	630
	Wareeg-gaagaaban i △ c	A	6000
	Fikiska SCPD	A	6000


	Soo noqnoqoshada soo noqnoqda	Dhutaataa ah	50/60
	Shahaadada wasakhda		2
Mashiin ah	Nolosha korantada	t	4000
astaamaha	Nolosha farsamada	t	10000
	Shahaadada Ilaalinta		Ip20
	Heerkulka deegaanka	ºC	-25 + 40
	(oo leh celcelis ahaan maalinlaha ah ≤35ºC)	ºC	-25 + 40
	Heerkulka kaydinta	ºC	-25 + 70
Rakaabis	Nooca Xiriirka Terminal		Cable / U-Nooca U-Nooca Busbar / Pin-Nooca Pin-nooca Busbar
	Cabbirka marinka dusha sare / hoose ee fiilada	mm2	25
	Cabbirka marinka dusha sare / hoose ee fiilada	W	3.18
	Cabbirka marinka dusha sare / hoose ee baska	mm2	25
	Cabbirka marinka dusha sare / hoose ee baska	W	3.18
	Adkeysi torque	N * m	2.5
	Adkeysi torque	Gudaha-lbs	22
	Biyo		On tareenka din 60715 (35mm) iyada oo loo adeegsanayo aaladda si dhakhso leh
	Xiriir		Laga bilaabo dusha sare iyo hoose

Mabda'a ah

Mabda'a FARSAMADA ee nooca elektiroonigga ah ee RCCB-ga elektiroonigga ah wuxuu ku saleysan yahay mabaadi'da korantada elektaroonigga ah iyo isu-dheellitirka hadda. Marka wejiga iyo eber-line ay ku jiraan wareegyada aan la isku halleyn karin, i.e. haraaga hadda jirta, isbeddelka hadda jira ee gudaha RCCB ayaa ogaan doona is-dhexgalkan oo abuuri doona seenyaale u dhigma. Digniintaas, ka dib markii lagu hawlgeliyay wareegga elektiroonigga ah, waxay kicin doontaa ficilka habka sii-deynta, si wareegga wareegga uu si dhakhso leh u jaro wareegga.

Astaamaha ugu waaweyn

Dareenka Sare: RCCBs elektiroonigga ah ee RCCCs-ka ayaa awood u leh inay ogaadaan haraaga haraaga aad u yar, badiyaa ka yar 30ma ama xitaa ka hooseeya.

Ficil Deg Deg Deg Deg Deg ah

Nabdoon oo la isku halleyn karo: RCCB waxay qaadataa qaybo elektiroonig ah oo horumarsan iyo tikniyoolajiyadda microprocessor si loo bixiyo isku hallayn iyo xasillooni sare.

Way fududahay in la rakibo oo la ilaaliyo

Xaaladaha Codsiga

Elektiroonigga RCCS waxaa si balaadhan loogu isticmaalaa xaalado kala duwan oo loo baahan yahay in la ilaaliyo korantada, oo ay ku jiraan laakiin aan ku xaddidnayn:

Dhismooyinka Guryaha iyo Ganacsiga: Waxaa loo isticmaalaa in lagu badbaadiyo qalabka korantada iyo badbaadada shaqsiyeed, ka hortagga shilalka 'korantada' iyo dabka korantada.

Khadadka wax soo saarka warshadaha: Waxaa loo isticmaalaa in lagu ilaaliyo qalabka korantada sida motors iyo transformers-ka hawlgalka caadiga ah, ka hortagga waxyeelada qalabka iyo hoos udhaca daadashada iyo xad-dhaafka.

Xarumaha dadweynaha: sida cosbitaalada, iskuulada, maktabadaha iyo meelaha kale, ee loo isticmaalo in lagu xaqiijiyo hawlgalka nabdoon ee qalabka korantada iyo adeegsiga aaminka ah ee shaqaalaha.
