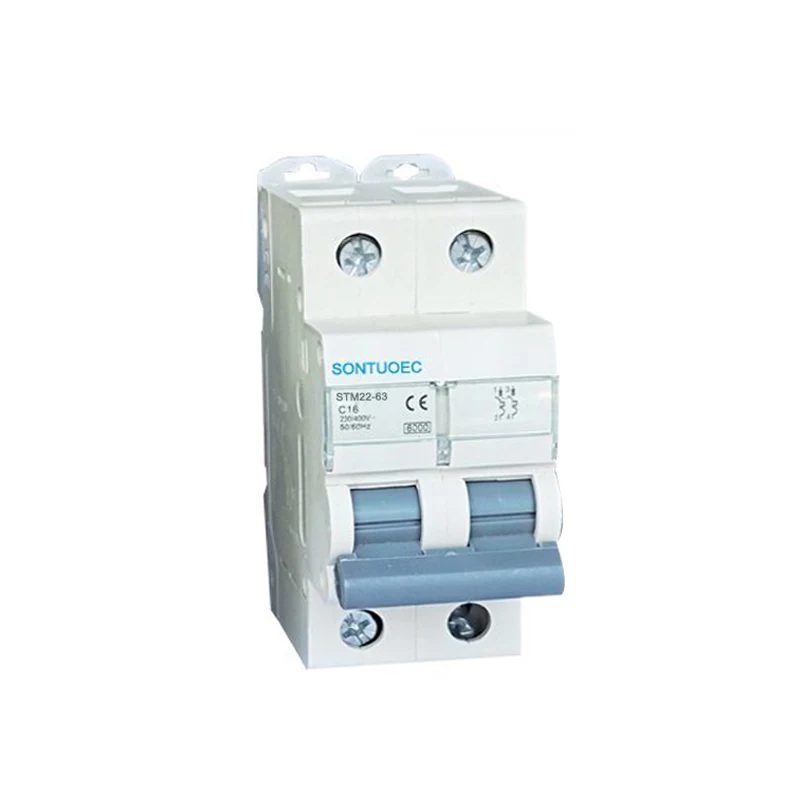

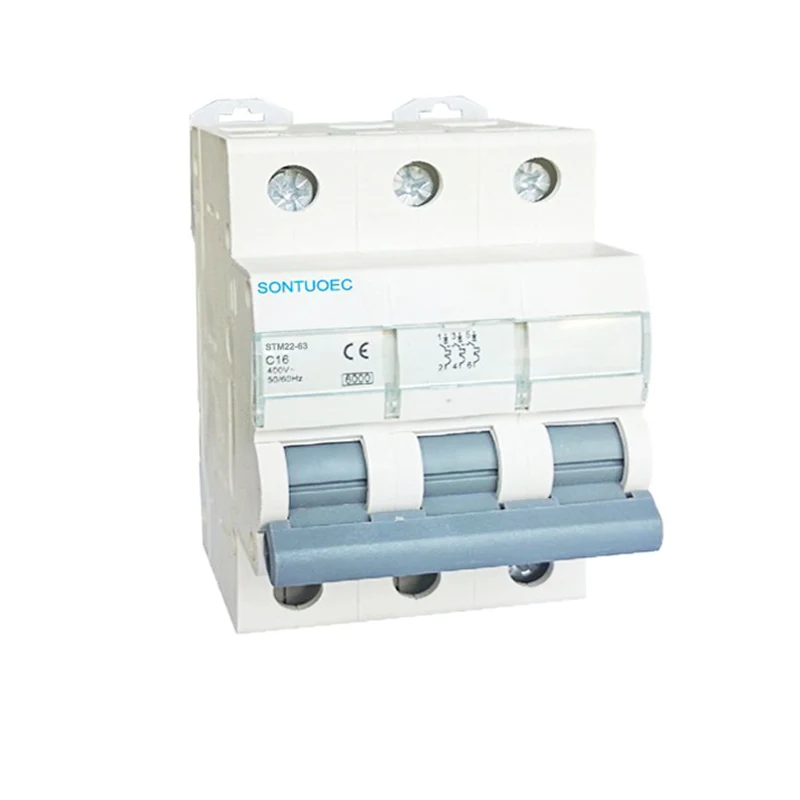

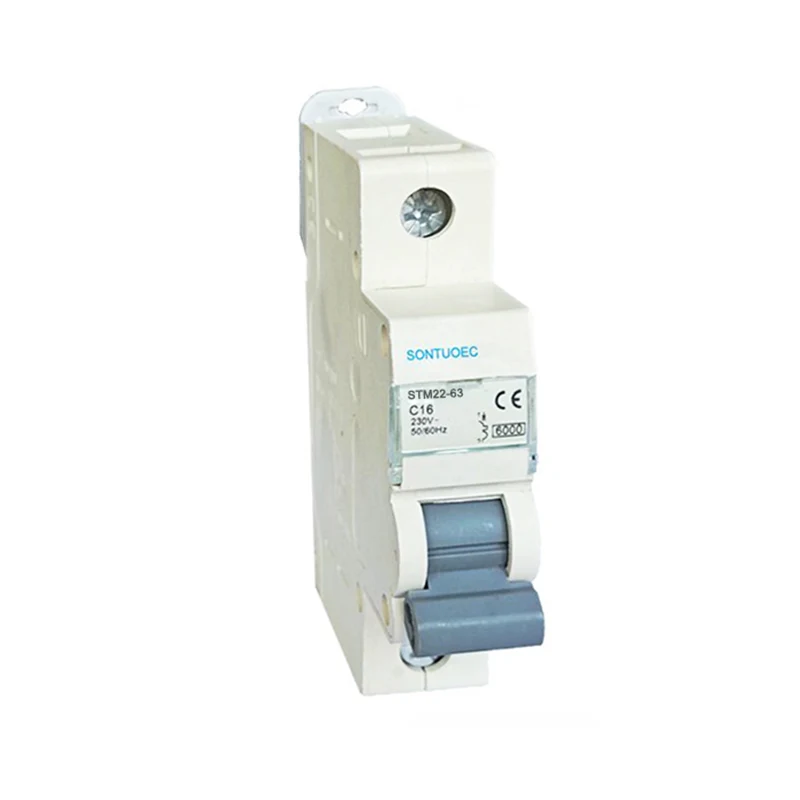

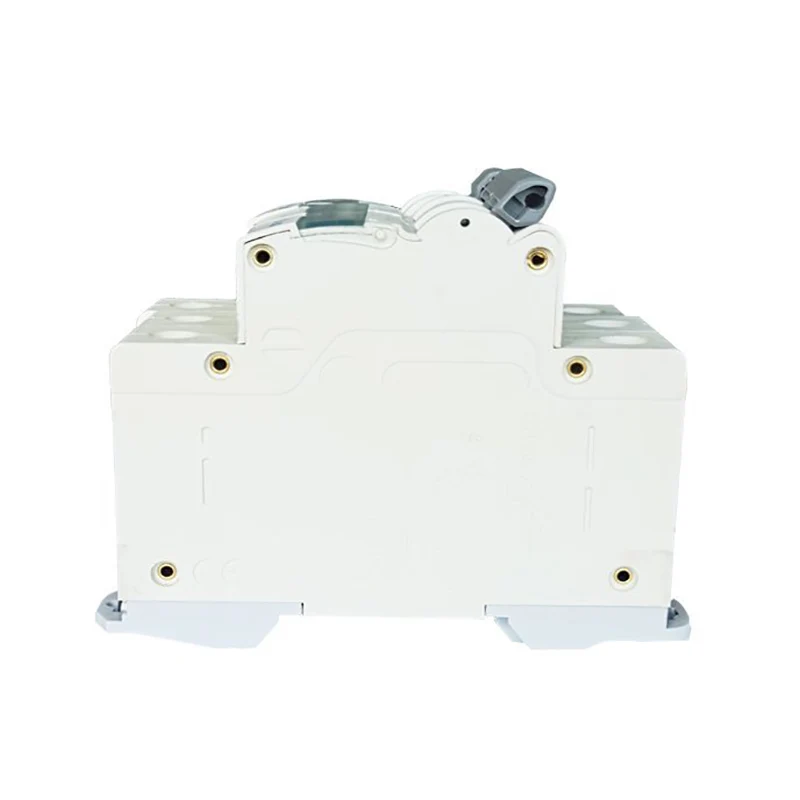

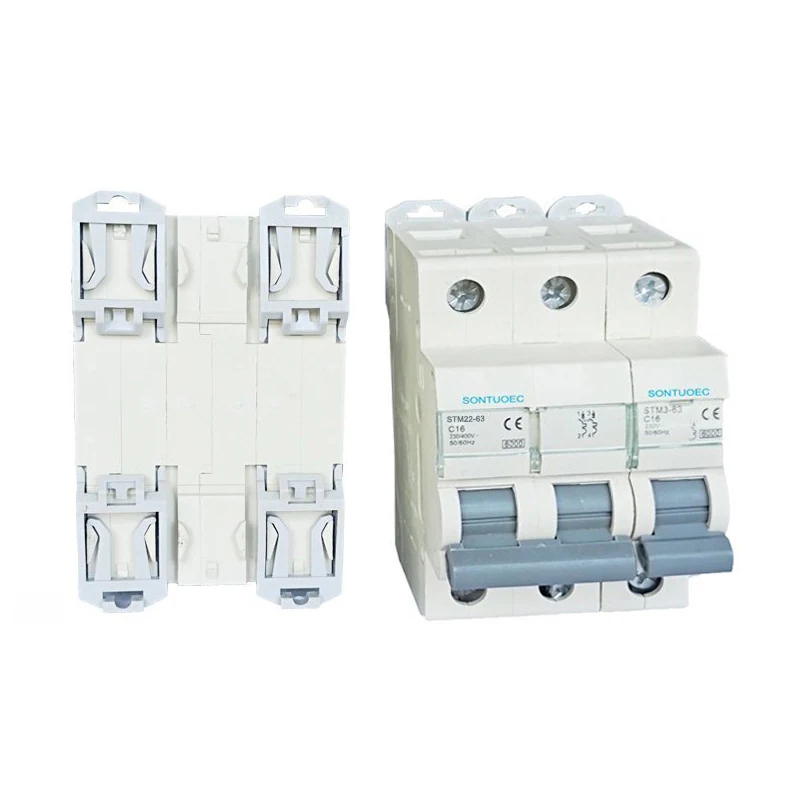

Awoodda jabinta ee sare McB 6ka

Awoodda jabinta ee sare ee MCB 6KA waa goyn yar oo wareega ugu yar ee loogu talagalay in lagu bixiyo difaac ku saabsan wareegyada leh wareegyada wareega wareega gaagaaban illaa 6000 amperos. Awoodda jabinta ee sare ee MCB 6ka waxay awood u leedahay inay si dhakhso leh u jaraan korantada haddii ay dhacdo xaalad aan caadi ahayn sida xad-dhaaf ah oo xad dhaaf ah ama gaagaaban, sidaas darteedna loo ilaaliyo qalabka iyo shaqaalaha wareegga.

Qaabka:STM22-63

Soo dir weydiin

Sharaxaada Alaabta

Nooc	Stm22-63
Caadi ah	Iec60898-1
Cirif	1p, 2p, 3p, 4p
Track Sheve	B, c, d
Awoodda wareega gaagaaban ee lagu qiimeeyay (ICN)	3KA, 4.5KA, 6KA
Lagu qiimeeyay hada (gudaha)	1,2,410,16,20,25,35,32,40,50,50,6a
Korantada lagu qiimeeyay (UN)	Ac230 (240) / 400 (415) v
Magnetic magnetic	B qalooc: inta u dhaxaysa 3in iyo 5 gudaha C qalooca: inta u dhaxaysa 5in iyo 10in D qalooca: inta u dhaxaysa 10IN iyo 14in
Dulqaadashada farsamada	In ka badan 6000 wareeg

Cayayaanka farsamada

 Waxaa lagu qiimeeyay hadda: Randiyada hadda la qiimeeyay ayaa badanaa u dhexeeya 1a iyo 63a waxay kuxirantahay tusaalaha gaarka ah iyo faahfaahinta.

 Korantada lagu qiimeeyo: Badanaa 230v / 400v (AC), laakiin sidoo kale waxaa loo heli karaa wareegga DC.

 jebinta awooda: 6000a (xaaladaha qaarkood, tusaale ahaan, marka wareegga gaagaaban uusan ka badneyn qiimahan).

 Nolosha farsamada: badiyaa ilaa 20,000 jeer ama ka badan.

 Nolosha korantada: Badanaa kumanaan kun oo tobanaan kun oo wareegyo, iyadoo kuxiran xaaladaha isticmaalka iyo faahfaahinta soo saaraha.

Astaamaha ugu waaweyn

Awood jabinta sare: Awooda jabinta ee 6ka waxay ka dhigan tahay in goynta wareegga ah ay si wax ku ool ah wax u qaban karto wareegyada wareega wareega wareega, hubinta in wareegyada lagu ilaaliyo waqti-dheer xitaa xaalado aad u badan.

Tusmooyinka Faahfaahin badan ayaa la heli karaa: noocyo kala duwan oo faahfaahinno ah iyo moodello ah oo ah suuqa McB 6ka waxay ka jirtaa suuqa, sida rurasyada kala duwan ee la qiimeeyay (1p, 3p, 4p, 4p, 3p), ITM:

 Si ballaaran loo isticmaalo

High Breaking Capacity MCB 6KA
