Lc1-n nooca ari

LC1-n Nooca Liqule AC waxay ku habboon tahay in lagu isticmaalo isweydaarsiga aC 50hz ama 60hz, korantada ilaa 660v (illaa 690V) iyo kuwa waxoogaa moodooyinka ah) iyo lacagaha illaa 95aa. Waxaa loo isticmaalaa isku xirka iyo jebinta wareegyada wareejinta masaafadaha dhaadheer, iyo sidoo kale bilaabida iyo xakameynta aC motors.

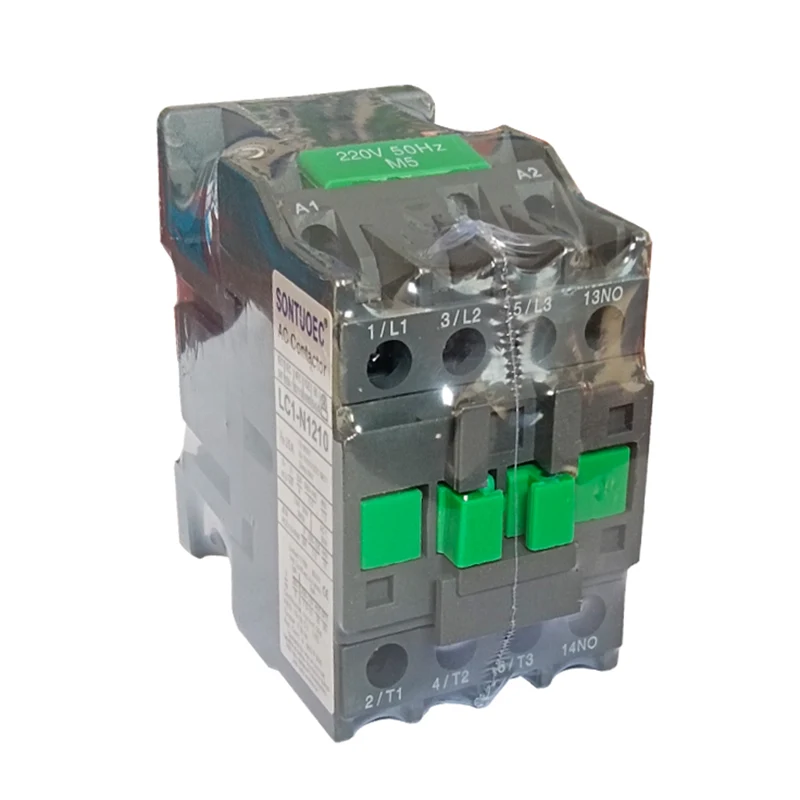

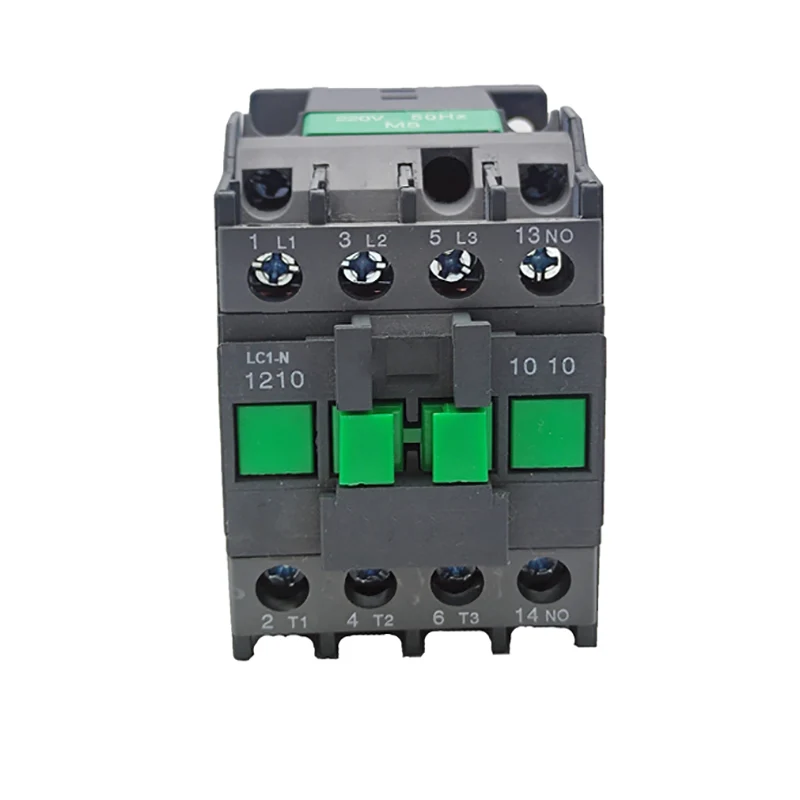

Qaabka:LC1-N1210

Soo dir weydiin

Sharaxaada Alaabta

Teeb ku qorid		Lci-n09	Lc1-n12	Lc1-n18	Lc1-n25	Lc1-n32	Lc1-n40	Lc1-n50	Lc1-n65	Lc1-n80	Lc1-n95
Lagu qiimeeyay shaqada hadda jirta (a)	Ac3	9	12	18	25	32	40	50	65	80	95
Lagu qiimeeyay shaqada hadda jirta (a)	Ac4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Qiimeynta Stabfower of 3-weji Motors 50 / 60hz aan micno lahayn AC-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500v	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Kuleylka lagu qiimeeyay hadda (a)		20	20	32	40	50	60	80	80	125	125
Nolosha korantada	Ac3 (x104)	100	100	100	100	80	80	60	60	60	60
Nolosha korantada	Ac4 (x104)	20	20	20	20	20	15	15	15	10	10
Nolosha farsamada (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Tirada xiriirada	3p + Maya					3p + nc + maya
Tirada xiriirada	3p + nc					3p + nc + maya

Astaamaha qaab-dhismeedka

Naqshadeynta modular: LC1-n Nooca Nooca AC Ac wuxuu qaatay naqshad heer-gabeel ah oo leh isku-darka shaqada oo dhammaystiran, kaas oo ku habboon dadka isticmaala inay doortaan oo ay isku daraan si waafaqsan baahidooda.

Nidaamka elektromagnetic: oo ay ku jiraan isku-darka elektaroonigga ah iyo xudunta birta, oo qayb muhiim ah ka ah xinjirowga, ku tiirsan si ay u kaxeeyaan xiritaanka iyo kala goynta xiriirada.

Nidaamka Xiriirka: oo ay ku jiraan xiriirka ugu weyn iyo xiriirka kaabayaasha ah. Xiriirka ugu weyn waxaa loo isticmaalaa in lagu xidho oo loo jebiyo wareegga ugu weyn iyo xakameynta kan weyn ee jira; Xiriirka kaaliyaha ah wuxuu ku jiraa wareegga xakameynta si loo buuxiyo shuruudaha hababka xakamaynta ee kala duwan.

Nidaamka degitaanka Arc: oo leh aaladda deminta Daanta Daanta ee SLAITittihing, Guud ahaan SLITITITUDUDUDUDUDUDUDUDUDUDUDUDUNEDITION SLC SPLES SPRETIONGINGS, oo ay ku habboon tahay in lala xiriiro wareegga ay ka dhalaneyso kareemka ah ee ka soo baxaya, yaree waxyeelada arc ee xiriirada.

Mabda'a Hawlgallada

Marka wareegga kontaroolka uu awood u leeyahay, COIL Elektaroonigga ah ayaa abuuraya goob magnetic, kaas oo soo jiidata xudunta birta inuu kaxeeyo xiriirada si loo xiro, sidaas oo lagu xirayo wareegga ugu weyn ee kombiyuutarka. Marka wareegga xakameynta ay tahay mid xakameysa, garoonka magnetic-ka, xudunta birta ayaa dib-u-dejin ku socota ficilka guga, xiriirku waa xidhiidhka, iyo wareegga ugu weyn ee kombiyuutarka ayaa sidoo kale la gooyay.

Cayayaanka Farsamada ee ugu weyn

Korontada Koronto kontoroolka korantada ee korantada: oo ay ku jiraan 24v, 48V, 110V, 280V, ayaa ah 240V, 480V, 480V, 600V, 660V, 660v iyo xulashooyinka kale.

Korontada Cabbirka: Badanaa (0.85 ~ 1.1) jeer korantada kontoroolka ee lagu qiimeeyay.

Asluubta loo sii daayo: Badanaa (0.2 ~ 0.75) waqtiyo kontoroolka kontoroolka ee lagu qiimeeyay.

Waqtiyada nuujinta: Waxay kuxirantahay tusaalaha, waqtiga nuugista ayaa ku kala duwan, badiyaa inta u dhaxaysa 12 ~ 35ms.

Waqtiga siideynta: Mar labaad, waqtiga siideynta ayaa kala duwan iyadoo kuxiran nooca, guud ahaan inta u dhaxaysa 4 ~ 20ms.

Nolosha korantada: Qaybta isticmaalka AC-3, nolosha korantada waxay noqon kartaa boqolaal kun oo jeer malaayiin jeer.

Nolosha farsamada: Nolosha farsamada ayaa caadi ahaan ku jirta kala-duwanaanta malaayiin illaa 10 milyan oo wareegood.

LC1- N Type AC Contactor
