Rccb b Model Boorqaalaha hadhaaga hadda jira

Moodhadhka RCCB B ee Model-ka Hadalka Wareegtada hadda jira wuxuu ilaaliyaa haddii ay dhacdo qaladka kacsan ee hadda jira sedex shabakadda wajiga, oo caadiyan lagu kharash gareeyo, STID-BITERTS iyo EN61008-1 iyo IEC / EN62423 Standard.

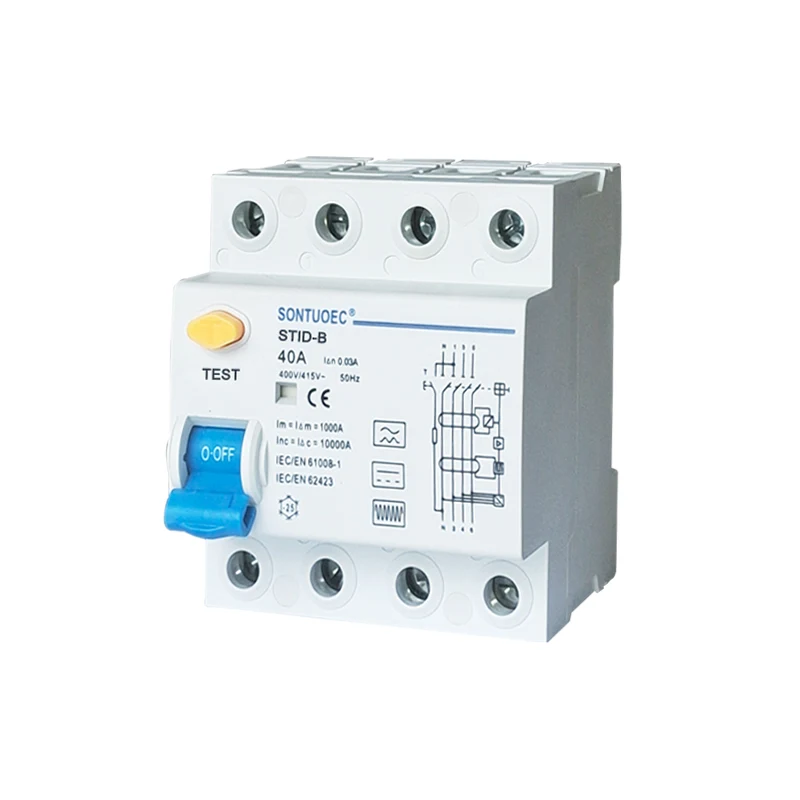

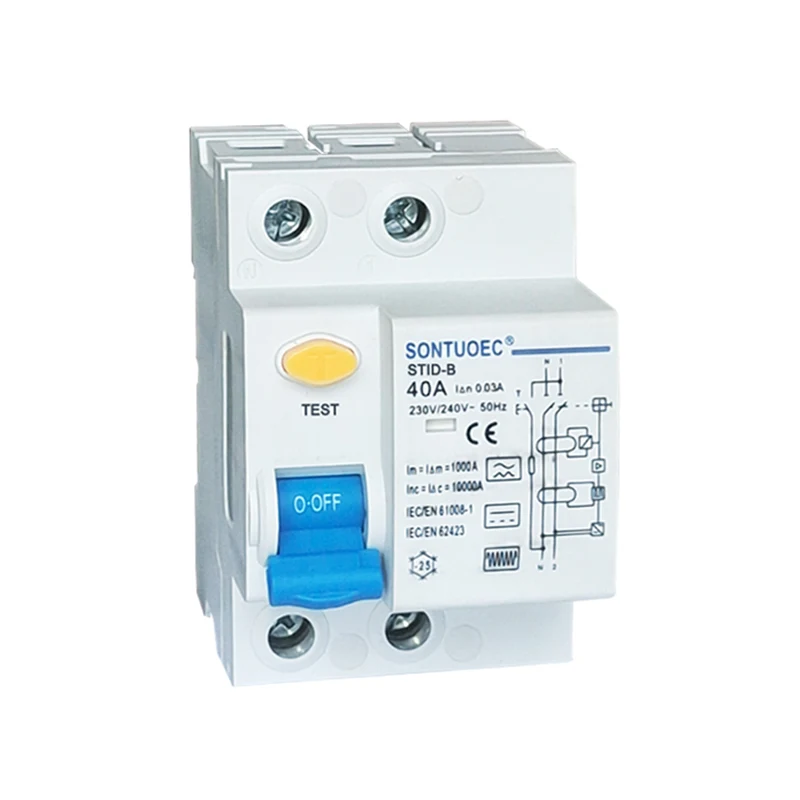

Qaabka:STID-B

Soo dir weydiin

Sharaxaada Alaabta

Korato Muujinta	Caadi ah		IEC / EN62423 & IEC / EN61008-1
	Nooca (Nooca Wave ee Bixinta Bixinta Dhulka ee dareensan)		B
	Lagu qiimeeyay hadda	A	25,40,63
	Ul shiro	P	1p + n, 3p + n
	Korantada lagu qiimeeyay	V	Ip + n: 230 / 240v; 3p + n: 400 / 415V
	Dareenka la qiimeeyay i n	A	0.03,0.1,0.3
	Voltage-kulation-ka ui	V	500
	Samaynta haraaga haraaga ah iyo	A	500 (gudaha = 25a / 40a)
	jebinta awooda aniga	A	630 (in = 63a)
	Waqtiga-gaagaaban ee i C	A	10000
	Fikiska SCPD	A	10000
	Waqti ka hooseeya aniga	s	≤0.1
	Soo noqnoqoshada soo noqnoqda	Dhutaataa ah	50
	Qiimeeyay ka hortagga korantada (1.2 / 5.0) ump	V	4000
Miyid astaamaha	Cilmiga korantada ee Dielectric-ka ee Ind. Fred. loogu talagalay 1min	KV	2.5
	Shahaadada wasakhda		2
	Nolosha korantada		2000
	Ujeedada Iiiitai		10000
	Cillad hada socota		Haa
	Shahaadada Ilaalinta		Ip20
	Heerkulka himilada (oo leh celcelis ahaan maalinlaha ah 35)	ºC	-40 + 55ºC
	Heerkulka kaydinta	ºC	-40 ~ + 70ºC

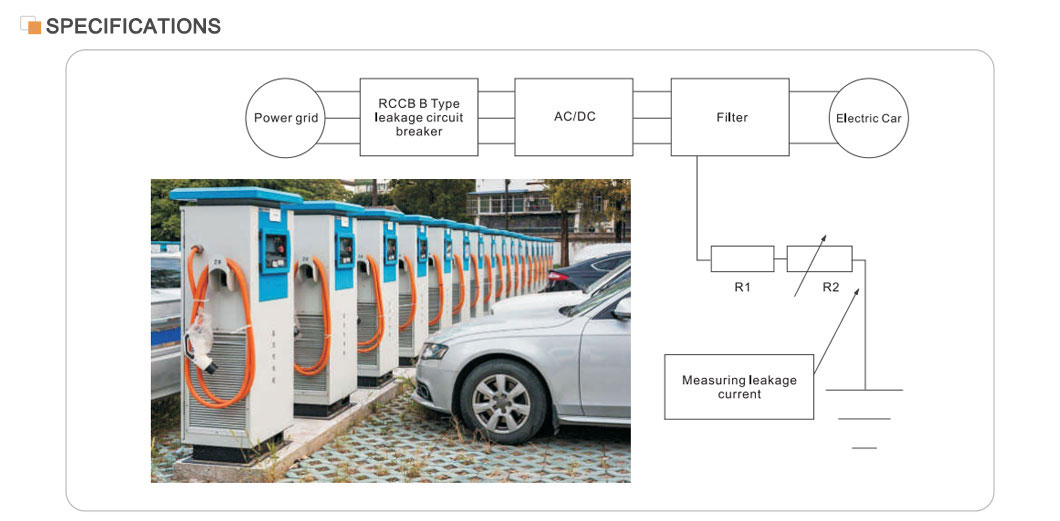

Qaabka loo yaqaan 'STID-B' VCCBL 'ee ku-meel-gaarka ah ee ku habboon Tooska ah ayaa sidoo kale ku habboon nooca a waxaana sidoo kale ku habboon in si habsami leh loo dhinto. Waxay bixisaa difaac markay dhacdo qaladaad joogto ah oo ku saabsan shabakadaha saddex-wejiyada. STID-B waxaa badanaa loo isticmaalaa qaybaha saldhigyada lagu dallaco, qalabka caafimaadka iyo aaladaha, xakameeyayaasha iyo rarka xawaaraha ku jira, iyo xargaha batteriga iyo dib-u-dhaca (DC). STID-B waxay la jaan qaadayaan IEC / EN61008 iyo IEC / EN62423 heerarka.

Astaamaha ugu waaweyn

Lagu qiimeeyay hadda: 40a, oo ku habboon nidaamyada korantada ee hadda jira.

Ilaalinta Bixinta

Waxqabadka Nabdoonaanta

Baaxadda Codsiga: si weyn loogu adeegsaday warshadaha, ganacsiga, sare iyo dhismayaasha madaniga ah si loo bixiyo badbaado dhameystiran oo loogu talagalay nidaamka korantada.

Mabda'a ah

Moodada RCCB B haraaga ah ee jahawareerka ee hadda ku yaal qulqulka hadda jira waxay ku saleysan tahay isku xigxiga eber ee hada socda. Wejiga oo kastaa wuxuu ku gudbayaa isku xigxiga eber ee Transformer, dhinaca labaad ee ku xiran xasaasiyad elektaroonig ah. Xaaladaha caadiga ah, isugeynta fiilada ee wejiyada wejiga ee isku xigxiga hadalka ee hadda socda, sidaa darteed fluffffent-ka oo loo maro Transformer-ka ayaa sidoo kale eber ah, oo ah eber, iyo jabinta wareega ma shaqeyn doono. Si kastaba ha noqotee, marka baxsigu sii kordhayo oo uu kaxeeyo dhinaca sare ee korantada si ay u koraan heer gaar ah, sii deynta farsamada gacanta ee lagu qabanayo oo ay ka goynayaan xiriirada ku xiran korantada, sidaas darteedna xaqiiqsashada ilaalinta baxsiga.

Xulashada iyo rakibidda

Xulashada: Markaad dooranayso RCCB, cabiraada sida korantada qiimeeyay, waxaa lagu qiimeeyaa ficil hadda jira, qulqulka hadda jira iyo waqtiga waxqabadka ee nidaamka korantada waa in la qaddariyo. Waxa kale oo ay lagama maarmaan tahay in la xusho RCCB ku habboon oo ku habboon nooca ilaalinta loo baahan yahay (E.G. Ilaalinta tooska ah ee lala xiriiro ama ilaalinta xiriirka tooska ah ee tooska ah).

Rakibaadda: RCCB waa in lagu rakibaa dhamaadka soo socda ee nidaamka korantada ama khadka laanta si loo hubiyo ilaalinta buuxda ee nidaamka korantada ama khadka khafiifka ah ee laanta. Inta lagu gudajiro rakibaadda, heerarka ku habboon iyo koodhadhka waa in si adag loo ogaado si loo hubiyo xiriir ku habboon iyo hawlgal lagu kalsoonaan karo ee RCCB.
