Nabdoonaanta Nabdoonaanta McCB 3P

Mabda'a hawl wadeenka ee badbaadada dhaqdhaqaaqa MccB 3p waxay ku saleysan tahay isku darka suufka magnetic iyo jawaab-celinta kuleylka. Markii ay dhacdo xad dhaaf ah ama gaagaaban ayaa ku dhaca wareegga, hadda hadda si aad ah ayey u kordhaysaa, iyo kicinta magnetic waxay dareemi doontaa kuwa aan caadi ahayn oo si dhakhso ah ayaa loo jari doonaa wareegga. Dhanka kale, jawaab-bixiyeyaasha kuleylka ah waxay ogaataa isbeddelada heerkulka ee wareegga waxayna sidoo kale ku kicisaa MCCB inay ka jaraan wareegga marka heerkulku ka baxo qiimaha la dejiyey, sidaas darteed si wax ku ool ah looga hortago waxyeelada qalabka iyo shilalka dabka.

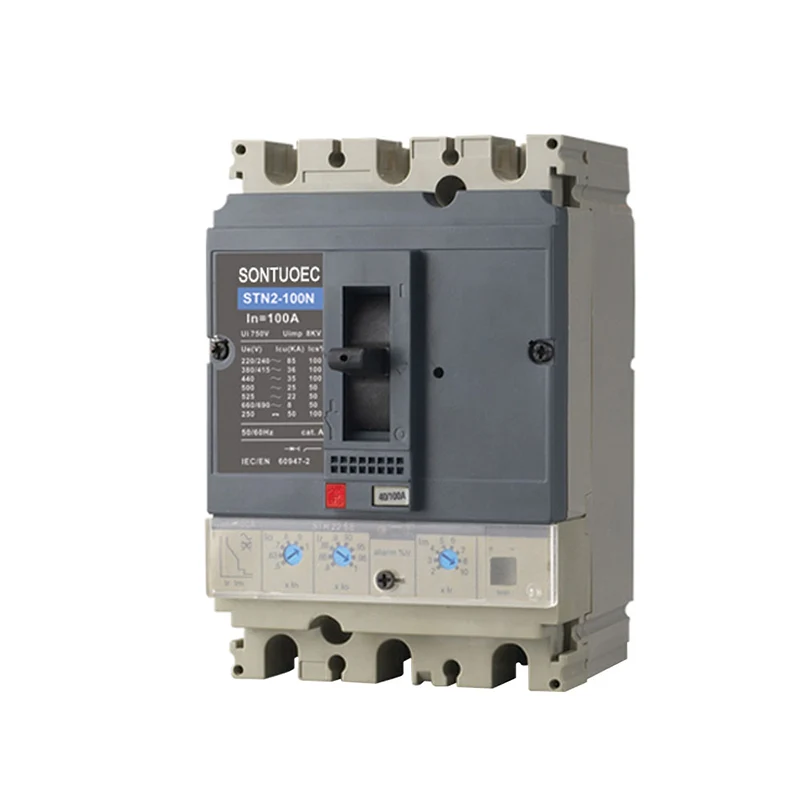

Qaabka:STN2-100

Soo dir weydiin

Sharaxaada Alaabta

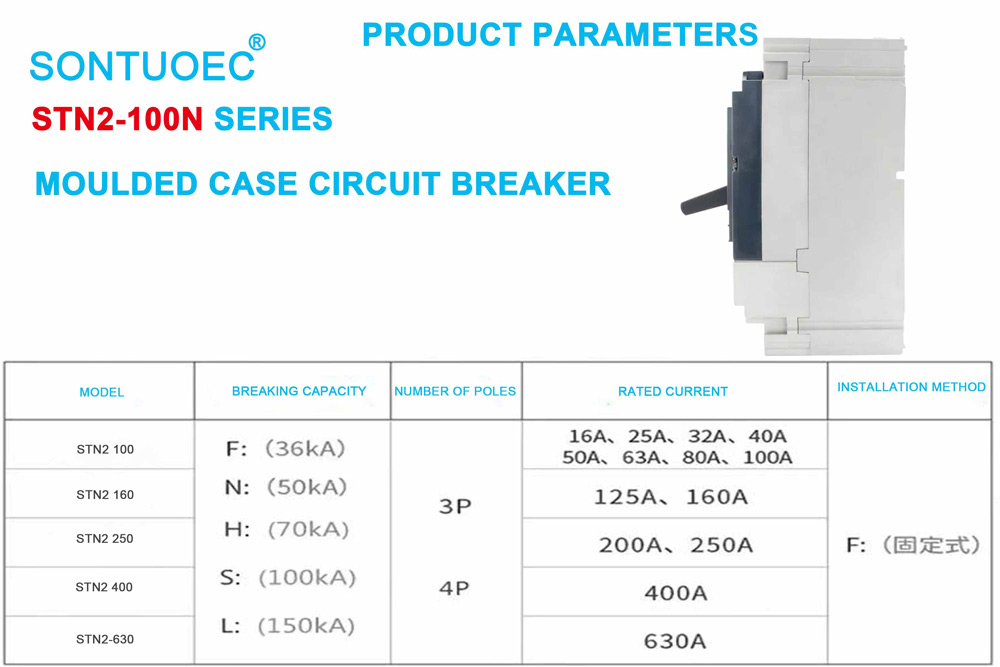

Faahfaahinta	Stn2-100				Stn2-160				STN2-250				Stn2-400				STN2-630
Jir taagan (a)	100				160				250				400				630
Tirada ulaha	3		4		3		4		3		4		3		4		3		4
Awoodda jabinta ugu dambeysa (ICU, ka)	F	N		H	F	N		H	F	N		H	F	N		H	F	N		H
AC220/240V (kA)	85	90		100	85	90		100	85	90		100	40	85		100	40	85		100
AC380 / 415V (ka)	36	50		70	36	50		70	36	50		70	36	50		70	36	50		70
Taariikhda linelation	AC800V
Korantada lagu qiimeeyay	Ac690v
Lagu qiimeeyay hadda, kuleylka kuleylka, Tmd, a	63, 80, 100				80, 100, 125, 160				125, 160, 200, 250				-				-
Lagu qiimeeyay hada, elektiroonig ah TRAVING, Mic, a	40, 100				40, 100, 160				100, 160, 250				250, 400				250, 400, 630
Kaaliyaha, feejignaan, cilad Waxyaalo siyaada ah	Ama / SD / SDE / SDX
Shunt & hoos udhac korantada	MX / MN
Nolosha farsamada	50000				40000				20000				15000				15000
Nolosha Korantada	30000				20000				10000				6000				4000

Nabdoonaanta Nabdoonaanta McCB 3p / 4p waxay ka tarjumaysaa mabda 'ugu dambeeyay ee xadidaada iyo tikniyoolajiyadda hadda, oo lagu gartaa qaabdhismeedyada is haysta, jabinta sare, iyo fladover-ka sare. Jebinta wareega ayaa lagu qalabeeyay culeys xad dhaaf ah, oo ah aaladda-gaagaaban iyo aaladda ilaalinta-hooska, si looga ilaaliyo qalabka wareejinta iyo qalabka korantada waxyeelada.

Astaamaha wax soo saarka

Naqshadeynta laba-ciripolar: MCCB 3P / 4P waa naqshad laba-ciriplar, taas oo macnaheedu yahay inay xakameyso labada eber iyo fiilooyinka labadaba isla waqtigaas, hubinta amniga iyo xasilloonida wareegga.

Si sax ah oo aad u sareysa: oo leh howsha ogaanshaha ee saxda ah ee hadda jira, waxay si sax ah u go'aamisaa xaalada qaladka ee wareegga oo laga jaro wareegga waqtiga.

Ku-kalsoonaanta sare: Waxaa lagu sameeyay tikniyoolajiyad horumar leh iyo agab, waxay leedahay isku hallaad iyo xasillooni sare, waxayna si caadi ah ugu shaqeyn kartaa deegaanno kala duwan oo adag.

Way fududahay in la rakibo oo la ilaaliyo: naqshad macquul ah, fududahay in la rakibo, isla mar ahaantaana way fududahay in la joogteeyo loona beddelo, yareynta howlaha isticmaalaha iyo dayactirka.
