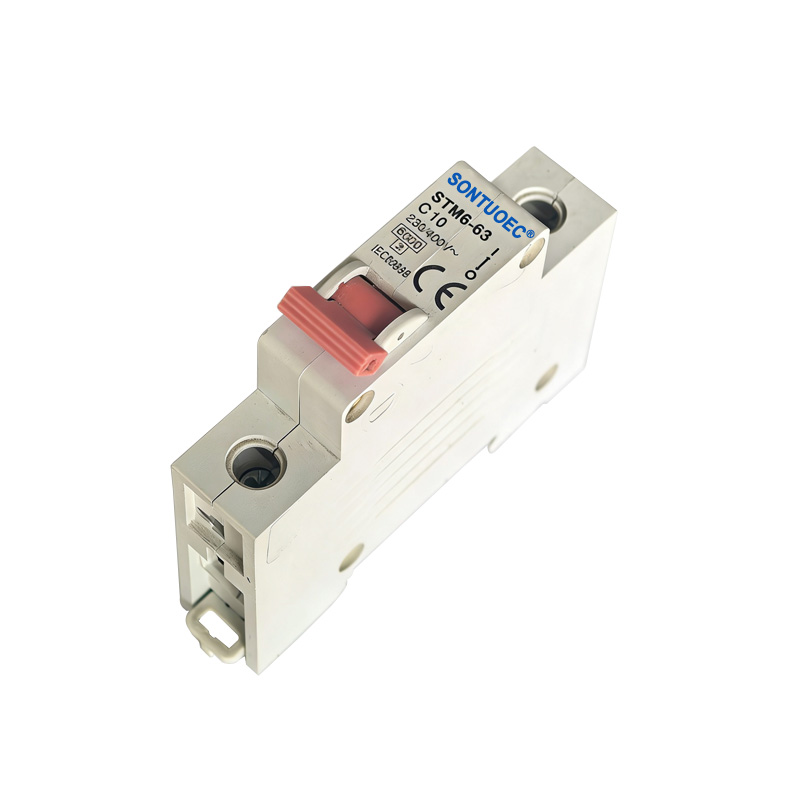

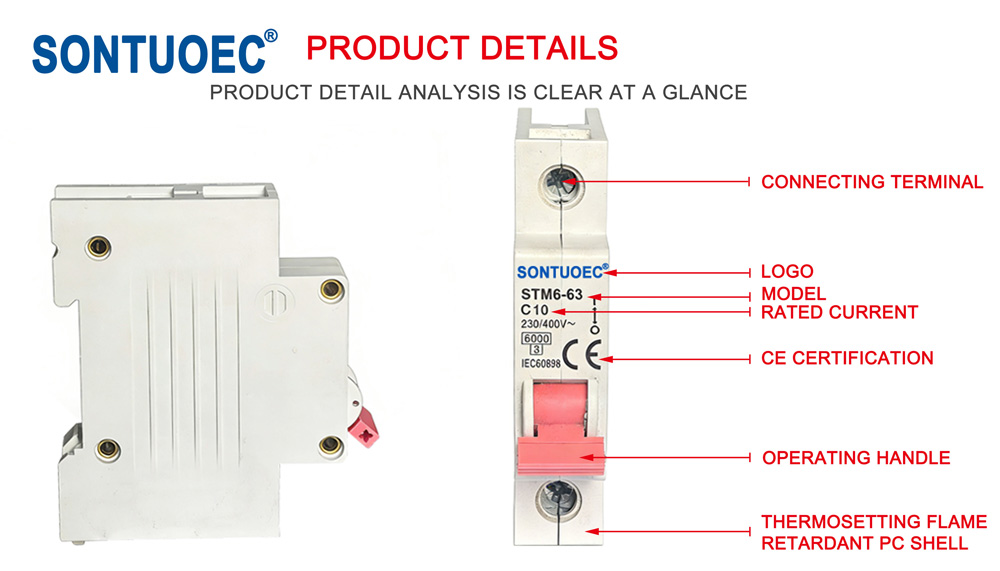

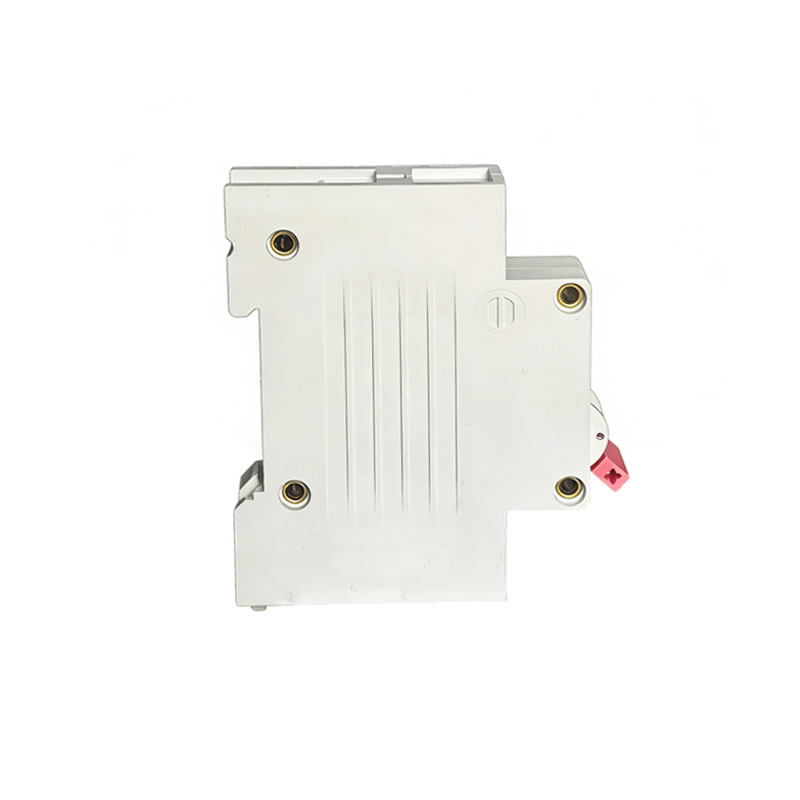

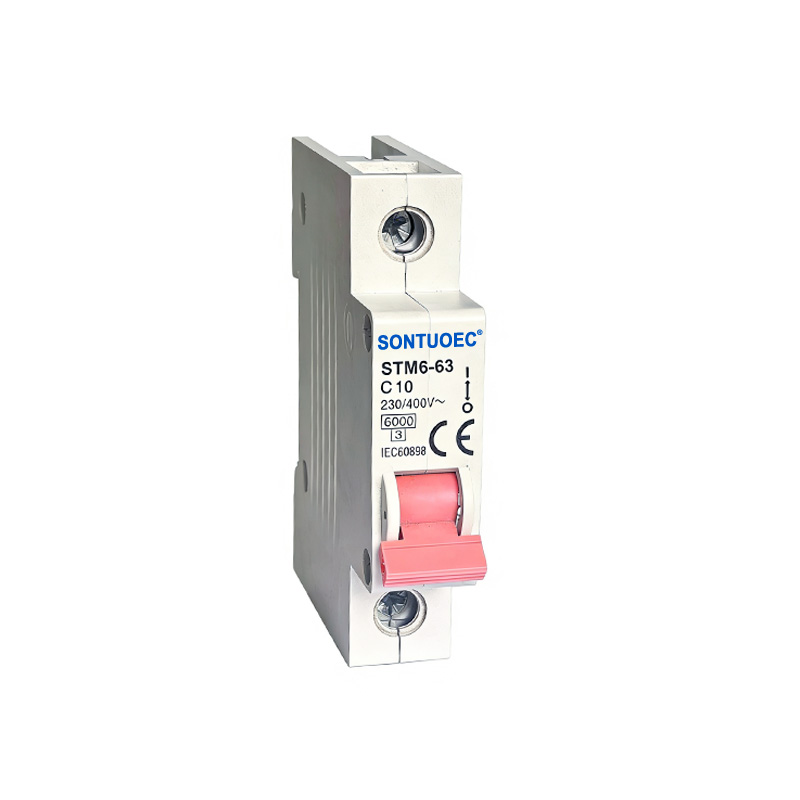

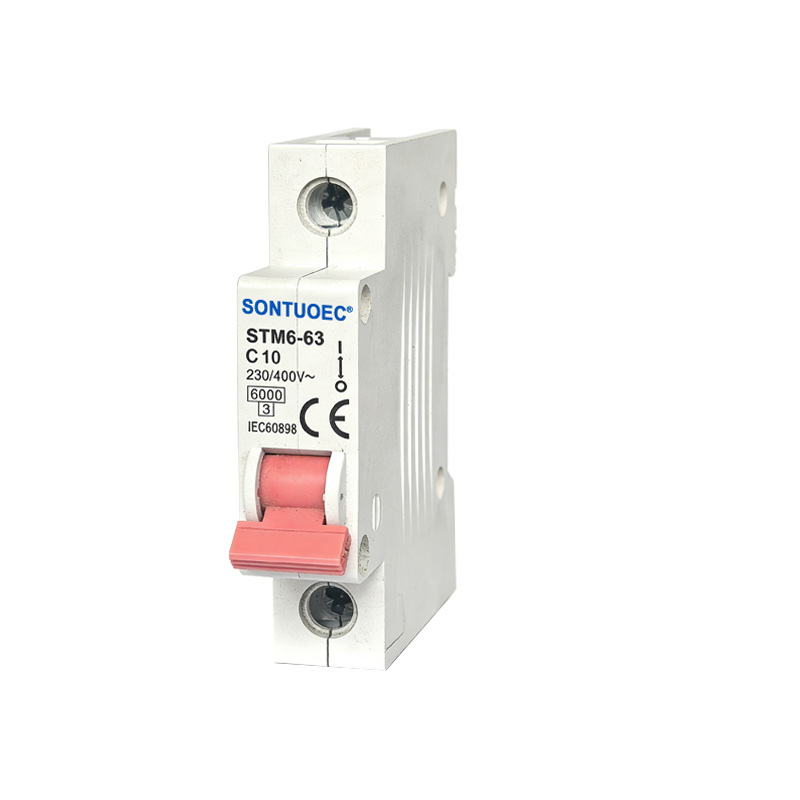

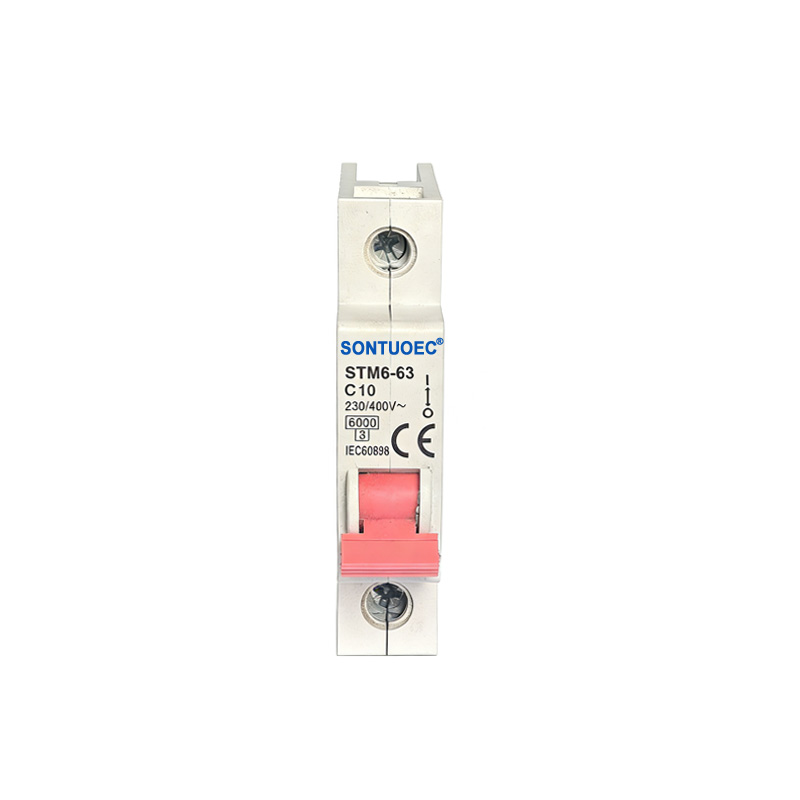

Sontuoec Stm6-63 6ka Miniature Circuit Breaker 230V MCB

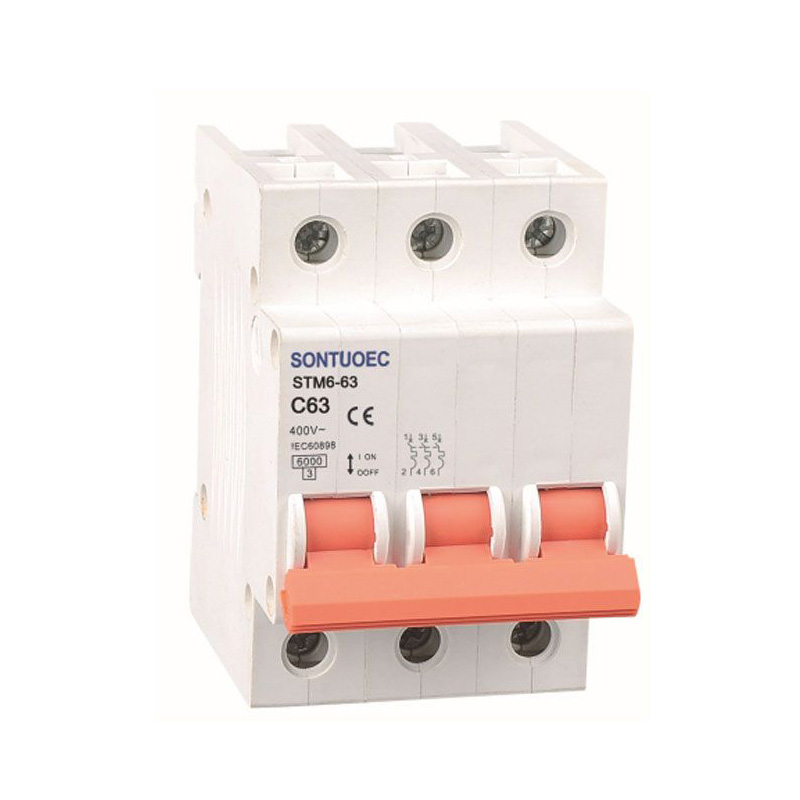

SONTUOEC waa mid ka mid ah alaab-qeybiyeyaasha/soosaarayaasha Shiinaha ee ku takhasusay soo saarista qalabyada korantada ee kala duwan ee STM6-63 3, 4 tiirar 400V, oo lagu qiimeeyay hadda ilaa 63A ee culeyska xad dhaafka ah iyo ilaalinta wareegga gaaban iyo sidoo kale beddelka aan joogtada ahayn ee xaaladaha caadiga ah. Waxaa si weyn loogu isticmaalaa warshadaha, ganacsiga iyo qoyska. Alaabtani waxay waafaqsan tahay heerka IEC60898.

Qaabka:STM6-63

Soo dir weydiin

Sharaxaada Alaabta

Tilmaamaha:

Meesha Asal ahaan:	Liushi,ueqing,Wenzhou,Zhejiang, Shiinaha
Magaca Summada:	SOTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
Magaca Alaabta:	Xakamaynta Wareegga yar / MCB
Nooca:	Mini
Nambarka Qaabka:	STM6-63
La qiimeeyay Awooda Wareegga Gaaban lcu (V)	B,C,D
Voltage la qiimeeyay:	230V/400VAC
Hadda la qiimeeyay:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Jebinta Awoodda:	6KA
Inta jeer ee la qiimeeyay:	50/60Hz
Tirada Tiirarka:	1P, 2P, 3P,, 4P
Joog:	≤2000m
Heerkulka jawiga:	-5 ~ 40ºC
Ballaca:	18mm / tiir
Heerka:	IEC60898, GB10963
Nooca Ilaalinta:	ilaalinta xad-dhaafka ah, ilaalinta wareegga gaaban
Nooca Safarka:	nooca kulaylka
Qaybinta:	TH 35mm din tareenka
Awoodda Xadhkaha:	≤25mm²
Inta jeer ee ugu badan ee hawlgalka:	1A-32A, 240 40A-63A, 120
