Sth-40-ka taxanaha saaxibku waxay kuxiran yihiin dib-u-dhigga

Sth-40 oo taxane ah oo taxane ah ayaa ku habboon kala-sooca line-ka kuleylka Oo waxay garan kartaa shaqada culeyska xad dhaafka ah iyo ilaalinta wajiga-ka-hortagga dhaqdhaqaaqa jirka. Alaabtaani waxay la jaan qaadayaan GB14048.4, IEC609447-4-1.

Qaabka:STH-40

Soo dir weydiin

Sharaxaada Alaabta

Khasaaraha Farsamada ee ugu weyn:

Nooc	Qul-qul	Ku habboon xiriiriyeyaasha
Sth-22/3	0.4-63a	GMC-9 ~ 22
Sth-22/3	0.63-1a	GMC-9 ~ 22
Sth-22/3	1-1.6a	GMC-9 ~ 22
Sth-22/3	1.6-2.5a	GMC-9 ~ 22
Sth-22/3	2.5-4a	GMC-9 ~ 22
Sth-22/3	4-6a	GMC-9 ~ 22
Sth-22/3	5-8a	GMC-9 ~ 22
Sth-22/3	6-9a	GMC-9 ~ 22
Sth-22/3	7-10a	GMC-12 ~ 22
Sth-22/3	9-13a	GMC-12 ~ 22
Sth-22/3	12-18a	GMC-18 ~ 22
Sth-22/3	16-22a	GMC-22
Sth-40/3	18-26a	GMC-32 ~ 40
Sth-40/3	24-36a	GMC-32 ~ 40
Sth-40/3	28-4A	GMC-40
Sth-85/3	34-50a	GMC-50 ~ 85
Sth-85/3	45-65a	GMC-50 ~ 85
Sth-85/3	54-75a	GMC-65 ~ 85
Sth-85/3	63-85aa	GMC-75 ~ 85

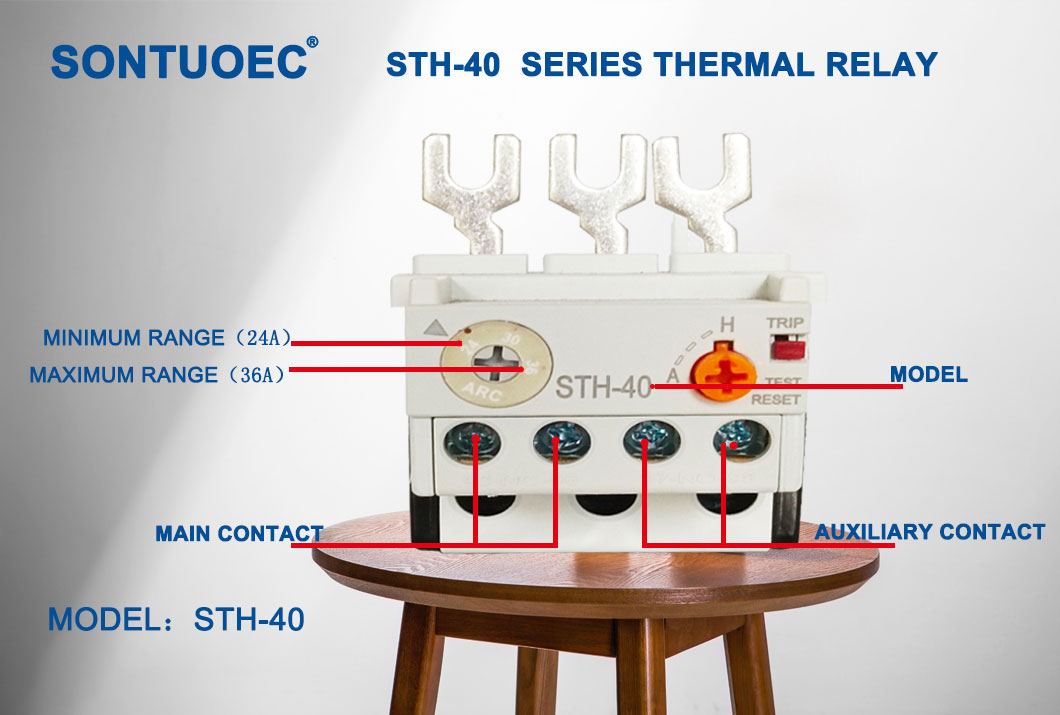

STH-40 Series Thermal Overload Relay

Hawlaha ugu waaweyn

Ilaalinta mootada: shaqada ugu weyn ee dib-u-dhigga xad dhaafka kuleylka ayaa ah in laga hortago mootada in ay waxyeelloobeen sababtuna tahay culeys xad dhaaf ah. Marka matoorku culeysku ka buuxdo, dib-u-dejinta xad-dhaafka kuleylka ayaa ka jaraya korantada waqtiga si looga hortago in matoorku ka soo baxo si uu u gubo.

Ilaalinta khadadka korantada: Marka lagu daro ilaalinta mootada, dib-u-dhigga xad dhaafka ah ee kuleylka ayaa waliba ilaalin kara khadadka korantada. Markuu gawaaridu buuxsantahay, hadda waxay sii kordheysaa, taas oo kuu horseedi karta kuleylka iyo jiifka korantada. Adoo ogaanaya isbedelka hadda, dib-u-dejinta xad-dhaafka kuleylka kuleylka ayaa go'aaminaya haddii khadka korantada uu culeyskiisu culus yahay oo uu jaray korantada haddii loo baahdo.

Hagaajinta amniga nidaamka awoodda: kuleylka xad-dhaafka kuleylka ayaa si wax ku ool ah uga hortagi kara burburka khadka gawaarida iyo safka korantada, sidaas darteedna yareynta heerka guuldarada ee nidaamka awoodda iyo hagaajinta amniga nidaamka awoodda.

Mabda'a ah

Mabda'a hawlgalka ee dib-u-dhigga xad-dhaafka kuleylka ayaa inta badan ku saleysan saameynta kuleylka hadda jira iyo heerkulka dareemayaasha guryaha dhimashada. Marka culeysku ka dhaco matoorka, kororka hadda jira, oo keena kuleyl dheeri ah in lagu soo saaro sheyga kuleylka ee dib-u-dhigga xaddiga xad-dhaafka kuleylka. Kuleylkan waxaa loo wareejiyaa biimetal, kaas oo laxeeya markii la kululeeyo maxaa yeelay waxay ka samaysan tahay laba akoor oo kala duwanaansho weyn oo ka mid ah isu-dheellitirka ballaarinta qunsuliyada. Marka biimetal uu u leexdo ilaa xad, waxay kicin doontaa iskuxirka elektaroonigga ah ee suuxsan, taas oo iyana u horseedi doonta xiriirada si ay ula xiriiraan iyo ka gooyaan korantada matoorka.

Baaxadda dalabka

Dib-u-habeynta kuleylka ayaa badanaa loo isticmaalaa korantada AC 50hz, linelation lince of 660v iyo hadda jira 0.1 ~ 630a, waxaana inta badan loo isticmaalaa culeyska xad dhaafka ah ee sedex-weji ac potes ac. Waxaa sidoo kale loo isticmaali karaa in lagu sameeyo bilow ah oo ay ku habboon tahay inuu ku habboon yahay inuu u yeesho xidhiidhka AC si uu u bixiyo badbaado dhameystiran oo loogu talagalay matoorka.

Astaamaha wax soo saarka

Qaab dhismeedka fudud

Featured Featured: Marka lagu daro shaqada ilaalinta aasaasiga ah ee aasaasiga ah, waxay sidoo kale leedahay howlo ka mid ah ilaalinta wejiga ee wejiga iyo magdhowga heerkulka.

Qiimaha jaban: Marka la barbar dhigo aaladaha kale ee ilaalinta moodada, qiimaha dib-u-dhiska xad-dhaafka kuleylka kuleylka waa mid aad u yar, oo yareynaysa qiimaha iibsiga ee isticmaaleyaasha.

Waxqabadka Howlgalka Joogtada ah

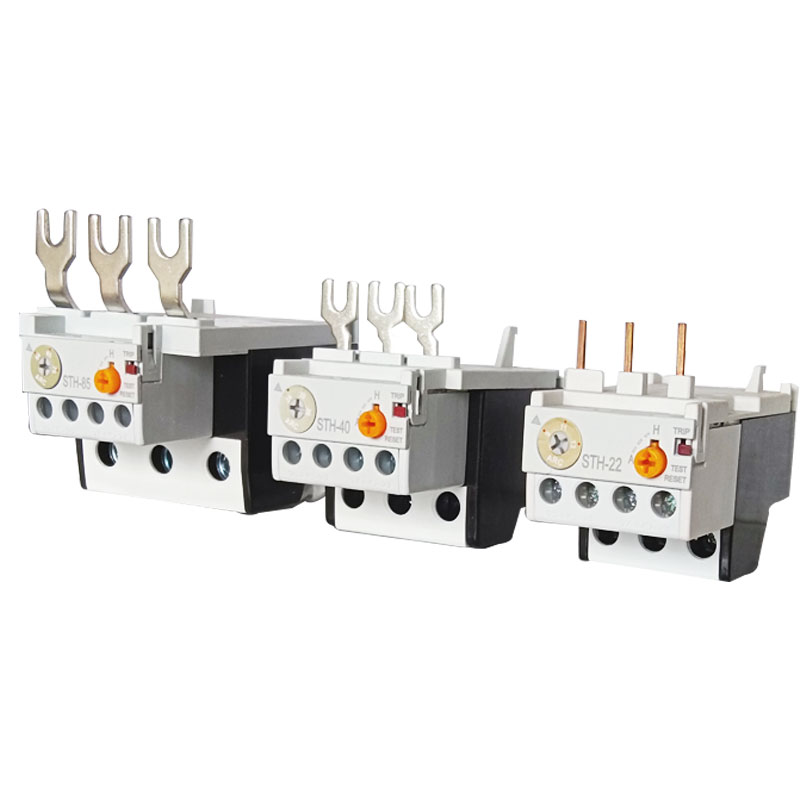

STH-40 Series Thermal Overload Relay
