Sharaxaada Alaabta

Faahfaahinta:

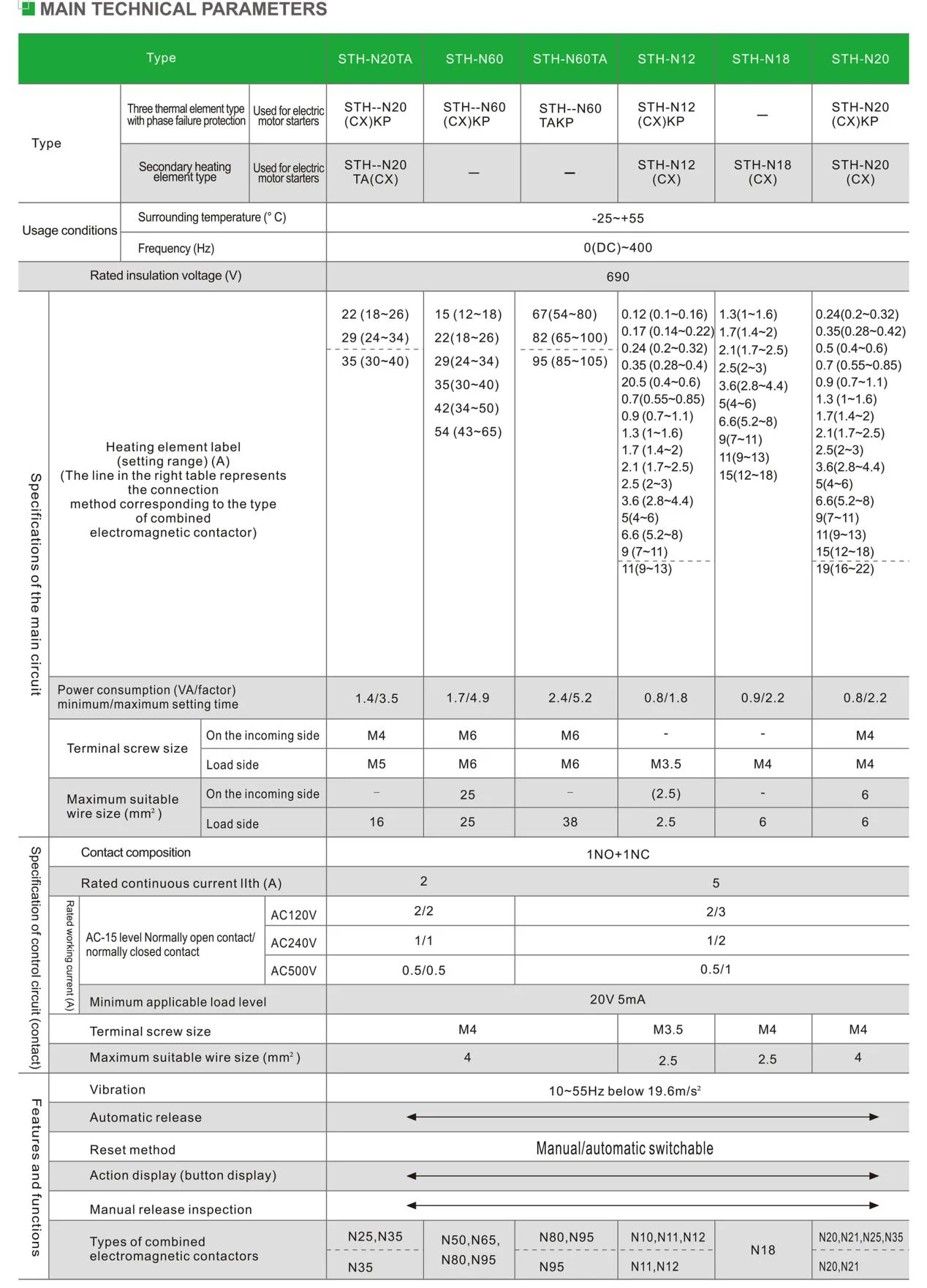

Badeeco Magac	Heer -bis Culeys xad dhaaf ah
Nooc	Sth-n
Wax	Caag, elektiroonig ah Qaybaha
Heer -bis Xiriir	1no + 1NC
Heer -bis Dib u soo celiyay hadda	0.1A-105a
Xadka hadda jira	Pls Xusuusnow kan hadda jira kala duwan marka aad dhigatid amarka
Soo marmar dhacdo	660v
Fasalka TROPLING	50 / 60hz
Midab	Maaddaama sawirka la muujiyay

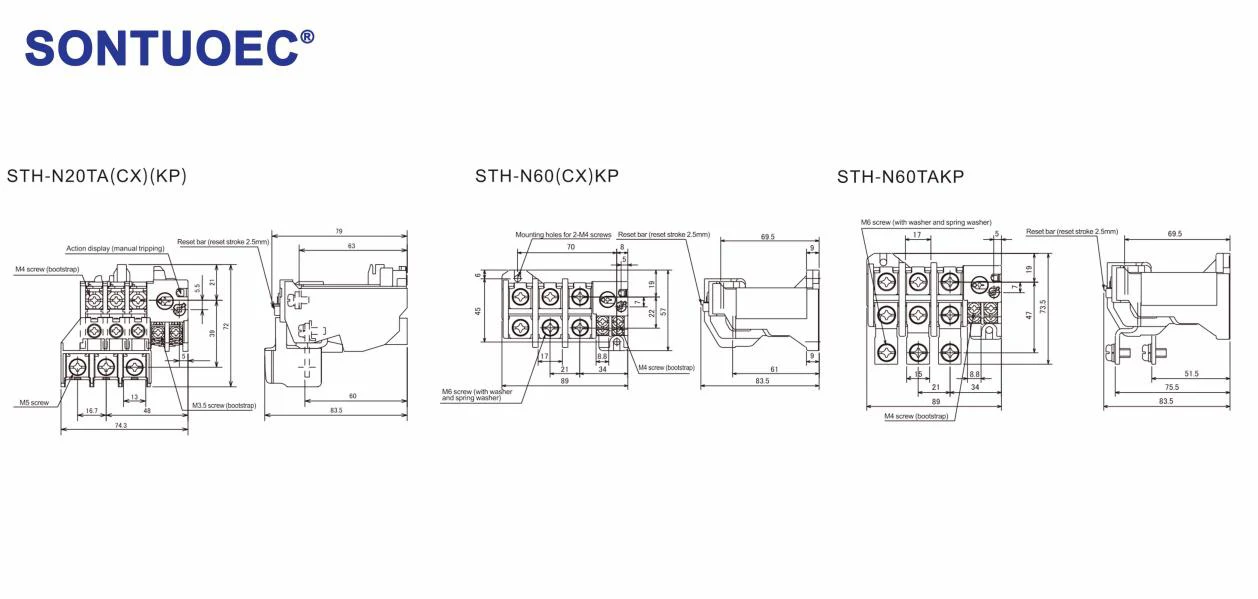

Teeb ku qorid	A	Duu	A	Ac	B	Uhu	Bb	BC	J	Cabbitaan	Cb	M	Miisaan (kg)
Sth-n12 (cx) (kp)	45	10	8	24	55	31	15	6.5	76.5	35	57	M3.5	0.11
Sth-n18 (cx)	54	12.5	10.2	24.5	59	32.5	16.3	6.7	80	40	58.5	M4	0.13

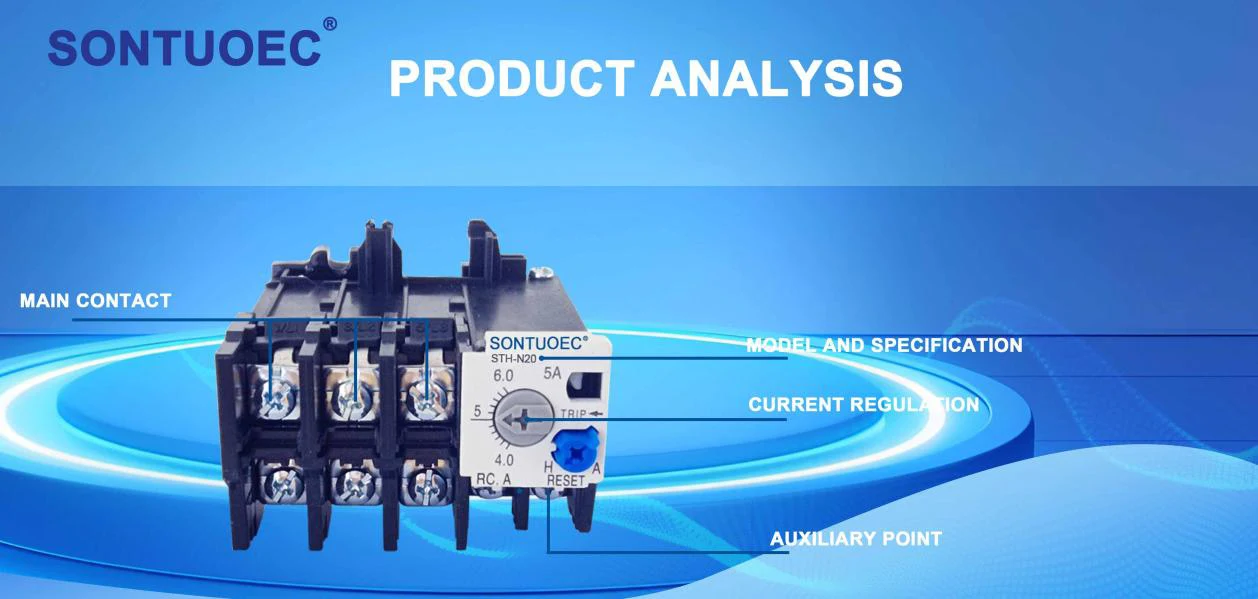

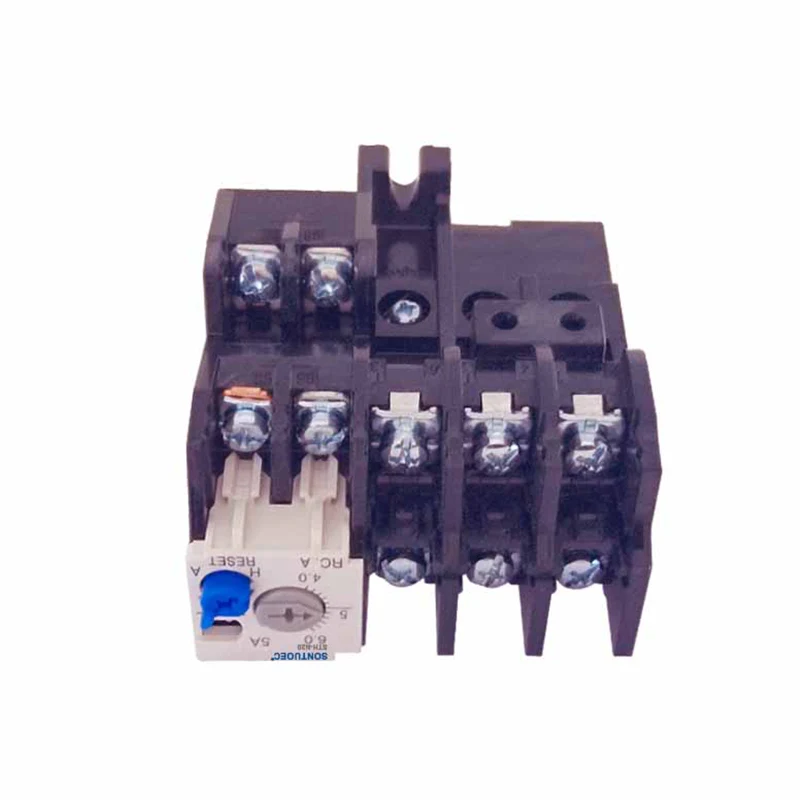

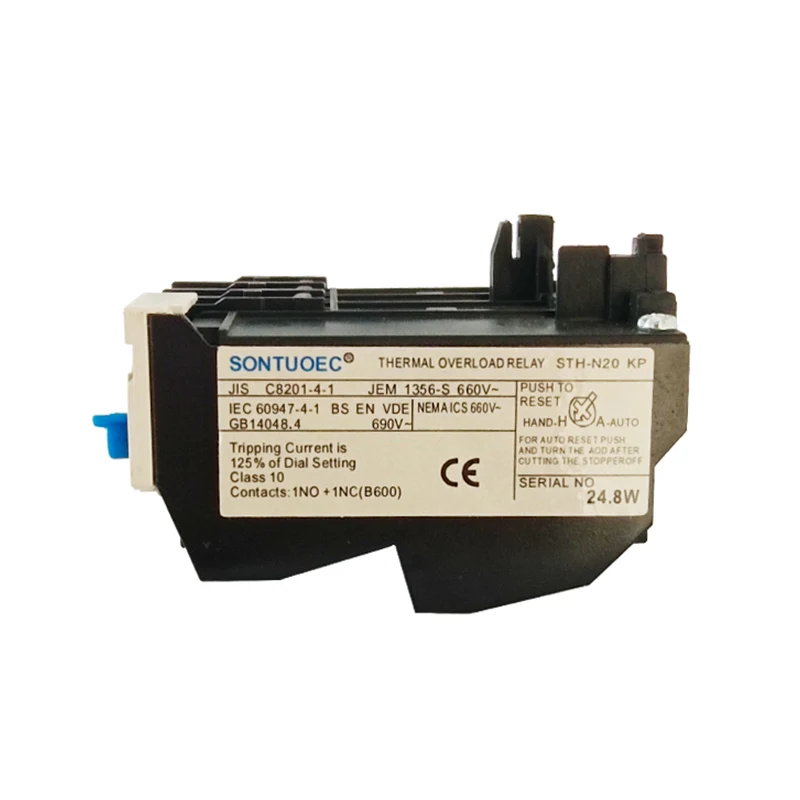

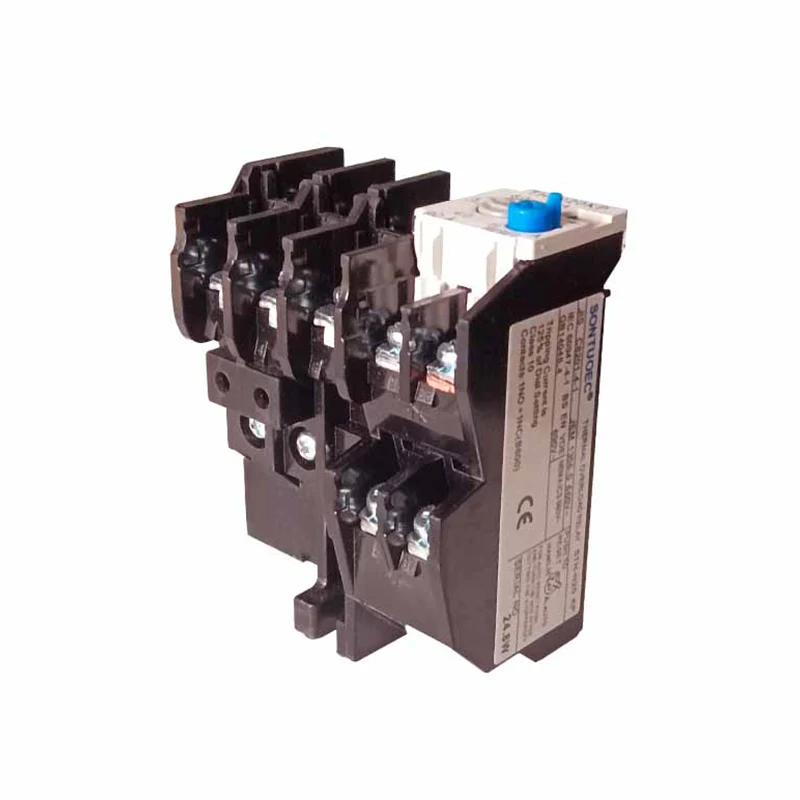

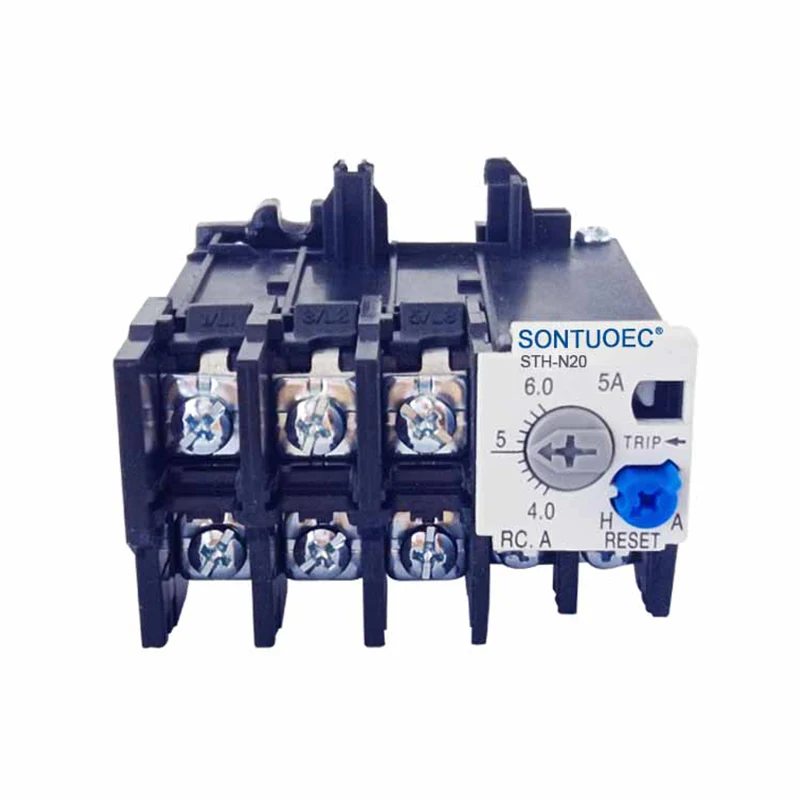

STH-N Model Thermal Relay

Mabda'a shaqada

Mabda'a hawlgalka ee dib-u-dhigga kuleylka ee Sth-N moodeelka ku jira wuxuu ku saleysan yahay saameynta kuleylka ee korantada. Marka matoorku culeysku ka buuxdo, qulqulka hadda socda iyada oo loo marayo dib-u-dhigga kuleylka kuleylka, taasoo keenaysa in walxaha kuleylka si loo abuuro kuleyl dheeri ah. Kuleylkani wuxuu keenaa in ay biririfta u laabato oo ay u dhintaan, oo marka ciilku gaaro masaafo gaar ah, waxay ku riixeysaa isku xidhka usha, taasoo keenta in lala xiriiro si uu u jebiyo, sidaa darteed jaridda korantada ee matoorka.

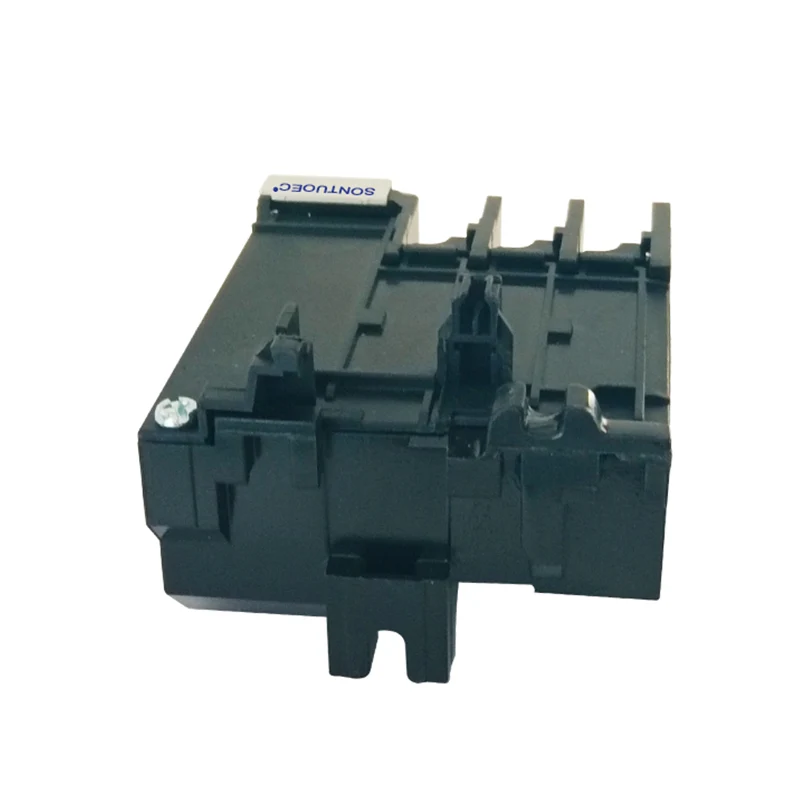

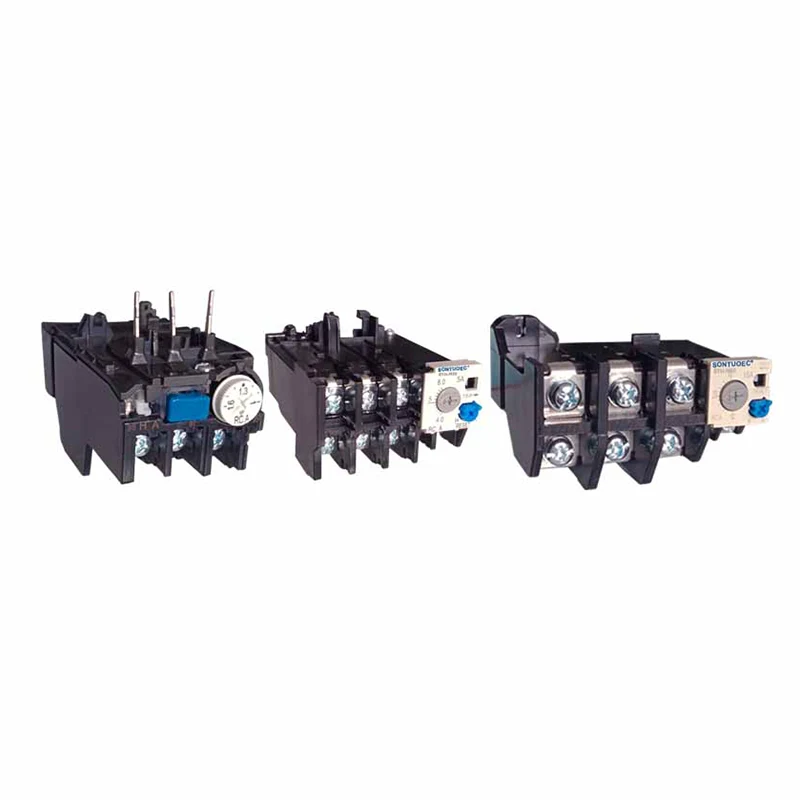

STH-N Model Thermal Relay

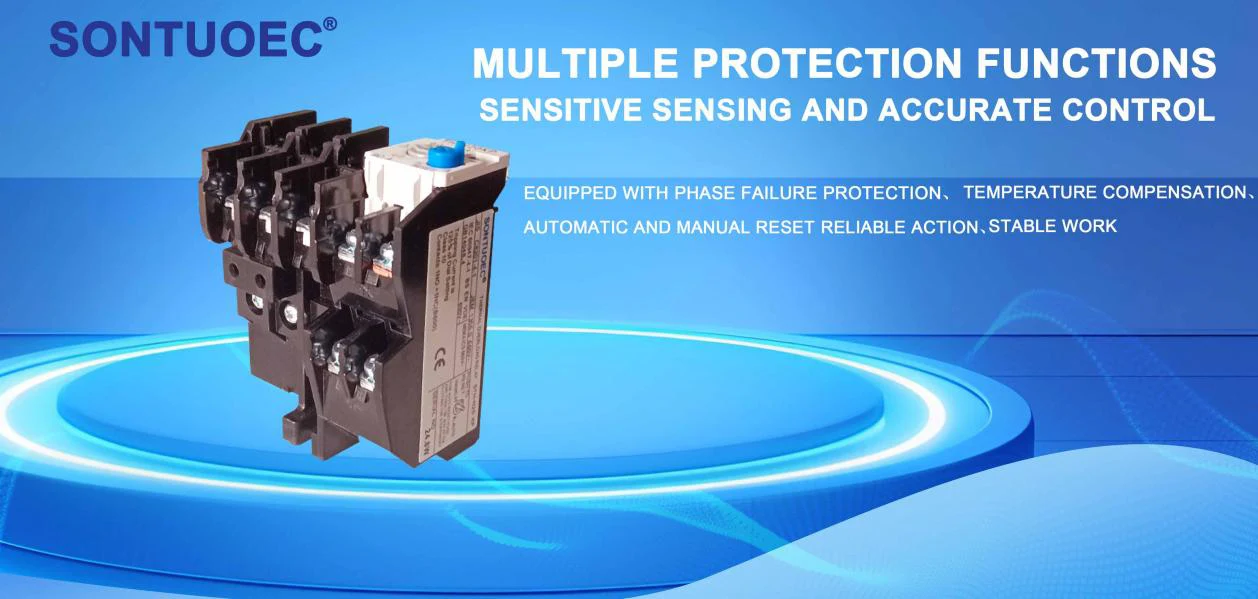

Astaamaha ugu waaweyn

Shaqada ilaalinta xad-dhaafka ah

Ficil sax ah

Qaab dhismeedka isku-dhafka ah

Nolosha adeegga dheer: Sababtoo ah Relay Relay wuxuu qabanayaa agab tayo sare leh iyo hanaan wax soo saar, waxay leedahay nolol aad u dheer iyo isku halanaansho sare.

Baaxadda dalabka

Noocyada kuleylka th-n ah ee nooca kuleylka ah ayaa si balaadhan loogu isticmaalaa codsiyada u baahan difaac xad dhaaf ah, sida nidaamyada kontoroolka otomatiga ee warshadaha, nidaamyada korantada, qalabka dhismaha iyo wixii la mid ah. Gaar ahaan wareegga xakameynta dhaqdhaqaaqa ee u baahan bilaabida iyo joojinta, doorka kahortagga ee Relays-ka kuleylka ayaa si gaar ah muhiim u ah.

Hot Tags: Sth-n qaabka kuleylka kuleylka
