Str2-D33 TRMOTAL MUSUUCKA DHAQANKA

Str2-D33 D33 TRMOST MESTOWS RESYS waxay ka shaqeysaa mabda'a kuleylka kuleylka ee korantada hadda. Marka matoorku culus yahay, kororkiisa hadda, wuxuu keenayaa sheyga kuleylka ee gudaha kuleylka culeyska kuleylka kuleylka kuleylka. Kuleylkan waxaa loo wareejiyaa bimetal, oo laga sameeyay laba bir ah oo leh isku-darka kaladuwan ee ballaarinta kuleylka, sidaa darteed waxay xireysaa markii la kululeeyo. Markuu foorarku gaadho dhibic gaar ah, waxay kicisaa aalad farsamo, sida caadiga ah xiriir, kaas oo ka go'ay korantada si loo helo matoorka, markaa ka ilaalinta waxyeelada.

Soo dir weydiin

Sharaxaada Alaabta

Faahfaahinta:

Badeeco Magac	DIIWAAN GALINTA DIIWAANKA
Nooc	St2-d33
Wax	Caag, qaybo elektiroonig ah
Heer -bis Xiriir	1no + 1NC
Heer -bis Dib u soo celiyay hadda	23a-93a	Pls Xusuusnow kan hadda jira seere daaq
St2-93	Kala-soocidda xadka (a) dejinta	3322	23 ~ 26 ~ 32	St2-40 ~ 95
		3353	17 ~ 25
		3355	30 ~ 33 ~ 36 ~ 40
		3357	37 ~ 41 ~ 46 ~ 50	St2-50 ~ 95
		3359	48 ~ 51 ~ 60 ~ 65	St2-50 ~ 95
		3361	55 ~ 0 ~ 65 ~ 70	St2-62 ~ 95
		3363	63 ~ 71 ~ 80	Str2-80 / str2-95
		3365	80 ~ 85 ~ 93	St2-95
Soo marmar dhacdo	660v
Fasalka TROPLING	50 / 60hz
Midab	Maaddaama sawirka la muujiyay

Cayayaanka ugu weyn ee Tech

Nooc	Lagu qiimeeyay hadda	Maya.	Meel dejinta (a)	Loogu talagalay xiriiriye
St2-25	25	1301	0.1 ~ 0.12 ~ 0.14 ~ 0.16	St2-9 ~ 32
		1302	0.16 ~ 0.19 ~ 0.22 ~ 0.25
		1303	0.25 ~ 0.3 ~ 0.35 ~ 0.4
		1304	0.4 ~ 0.05 ~ 0.63
		1305	0.63 ~ 0.8 ~ 0.9 ~ 1
		1306	1 ~ 1.2 ~ 1.4 ~ 1.6
		1307	1.6 ~ 1.9 ~ 2.2 ~ 2.5	St2-12 ~ 32
		1308	2.5 ~ 3 ~ 3.5 ~ 4
		1309	4 ~ 5 ~ 6
		1312	5.5 ~ 6 ~ 7 ~ 8
		1314	7 ~ 8 ~ 9 ~ 10
		1316	9 ~ 11 ~ 13
		1321	12 ~ 14 ~ 16 ~ 18	St2-12 ~ 32
		1322	17 ~ 21 ~ 25	St2-12 ~ 32
		1353	23 ~ 32	Str2-25 / 32 (LC1-D25 / 32)
St2-36	36	2353	23 ~ 29 ~ 29 ~ 32	Str2-25 / 32 (LC1-D25 / 32)
		2353	28 ~ 32 ~ 36	Str2-32
		2353	30 ~ 40	Str2-32
St2-93	93	3322	23 ~ 26 ~ 32	St2-40 ~ 95
		3353	17 ~ 25
		3355	30 ~ 33 ~ 36 ~ 40
		3357	37 ~ 41 ~ 46 ~ 50	St2-50 ~ 95
		3359	48 ~ 51 ~ 60 ~ 65	St2-50 ~ 95
		3361	55 ~ 0 ~ 65 ~ 70	St2-62 ~ 95
		3363	63 ~ 71 ~ 80	Str2-80 / str2-95
		3365	80 ~ 85 ~ 93	St2-95
St2-140	140		80 ~ 104
			95 ~ 120
			110 ~ 140

Hawlaha ugu waaweyn

Ilaalinta xad-dhaafka ah

Ka hortagga 'Dib-u-eegida'

Tilmaanta Wax-ka-qabashada: Xadhig badan oo xad-dhaaf ah oo xad dhaaf ah ayaa leh fal muujinaya, kaas oo muujinaya ama beddelaya heerka marka matoorku ka buuxdo ama kululaado, si uu u qaado tallaabooyinka waqtiga.

CODSASHADA CODSADAHA TODDADA EE STERM-D ayaa loo adeegsan karaa wareegga 50/60 Hz, oo lagu qiimeeyay Jid-ka-korantada oo kacsan, waa dib-u-dhigista heerkulka, waa dib-u-dhigga kuleylka ee ugu horumarsan ee ka jira sannadaha adduunka ee soosaarka ah 60947-1.

Xaaladaha Codsiga

Xirmooyinka xad-dhaafka kuleylka ayaa si weyn loogu isticmaalaa jawiga warshadaha iyo ganacsiga kala duwan, gaar ahaan qalabka u baahan dabaasha gawaarida korantada. Tusaale ahaan, waxaa loo isticmaalaa bambooyin, isboorti, taageerayaasha, waxay gudbiyaan, iyo qalab kale oo farsamo oo kala duwan si loo hubiyo in si badbaado leh loo xiri karo haddii ay si badbaado leh loo xidho haddii ay jirto xaalad xad dhaaf ah ama xaalada kuleylka ah.

Xulashada iyo rakibidda

Markaad xulato dib-u-dhigga xad dhaafka kuleylka, arrimaha sida qiimeynta awoodda dhaqdhaqaaqa, jawiga hawlgalka, iyo astaamaha loo baahan yahay in la tixgeliyo. Waxa kale oo ay lagama maarmaan tahay in la hubiyo in lagu qiimeeyay hadda ee dib-u-dejinta xad-dhaafka kuleylka kuleylka ee ku habboon ee lagu qiimeeyay mootada iyo in ay leedahay culeys xad dhaaf ah oo aad u dulqaadasho leh.

Markaad rakibayso dib-u-dhac xad dhaaf ah oo kuleylka ah, waxaad u baahan tahay inaad raacdo tilmaamaha soo saaraha oo aad hubiso in si sax ah loogu xidhan yahay awoodda dhaqdhaqaaqa iyo kontaroolada. Intaa waxaa sii dheer, Relays culeys xad-dhaaf ah ayaa u baahan in la kormeero loona ilaaliyo si joogto ah si loo hubiyo hawlgal sax ah iyo nolosha adeegga dheer.

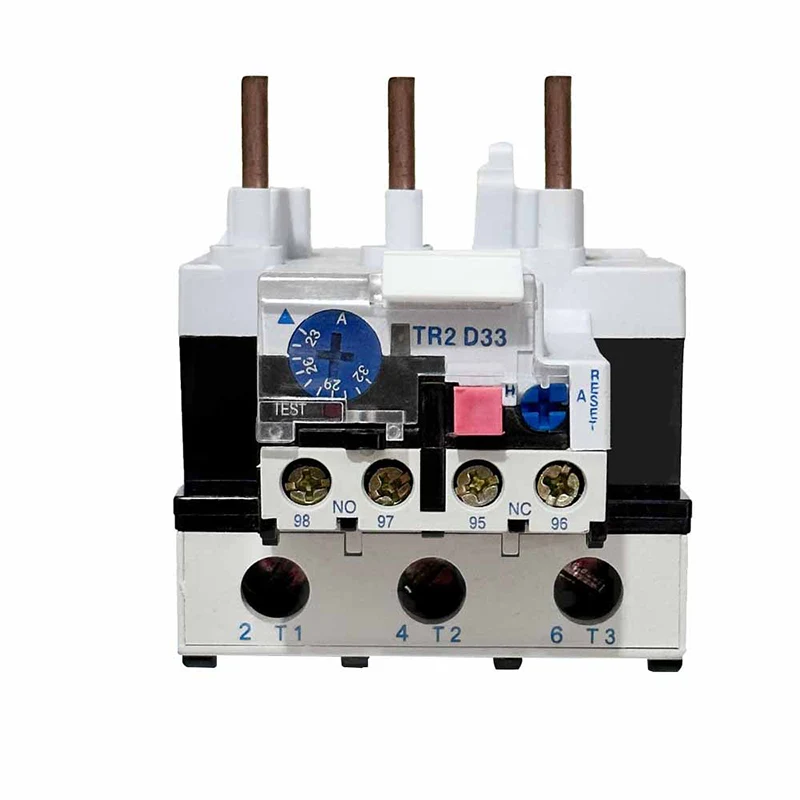

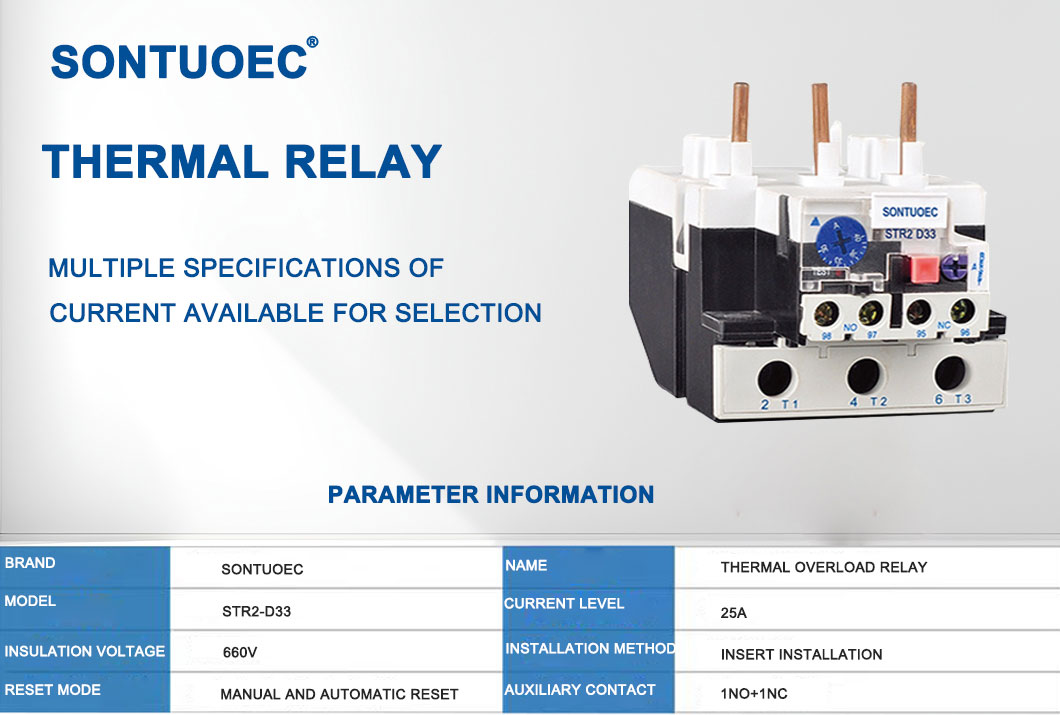

STR2-D33 Thermal Overload Relay
