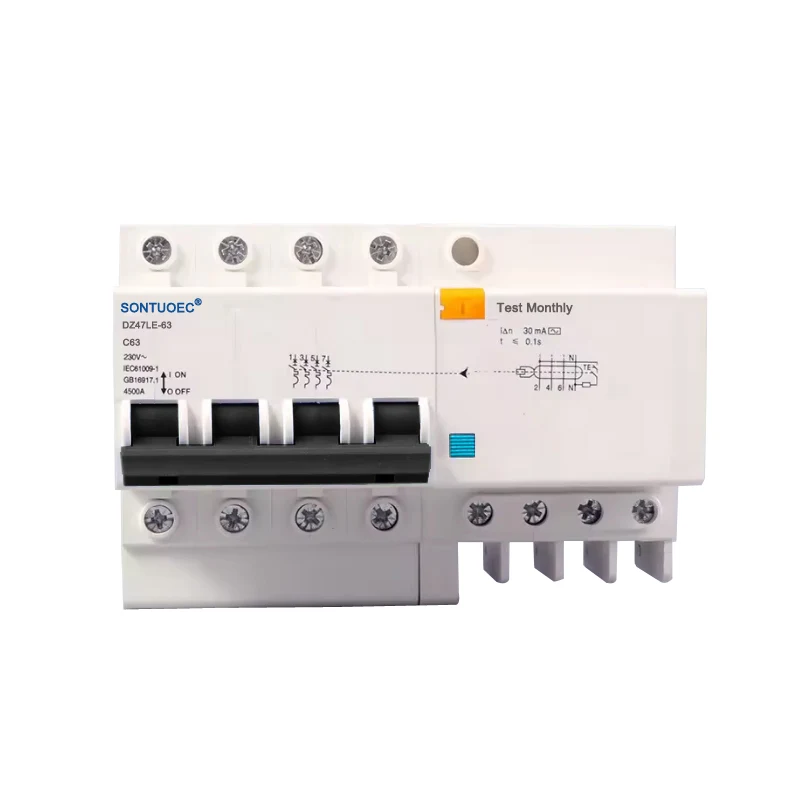

4P RCBO AC Nooca

Nooca 4P RCBO AC waa 4-tiir wareeg ah oo isku dara ilaalinta hadda jirta iyo hawlaha ilaalinta xad dhaafka ah, gaar ahaan loogu talagalay beddelka wareegyada hadda (AC). Waxa ay si toos ah u jari kartaa korontada marka hadda hadhaaga ah (ie, leakage current) laga helo wareegga si looga hortago dabka korontada iyo shilalka shilalka korantada ee shakhsi ahaaneed. Isla mar ahaantaana, waxay sidoo kale leedahay shaqo ilaalin xad dhaaf ah oo si toos ah u jari karta korontada haddii ay dhacdo culeys xad dhaaf ah ama wareegga gaaban ee wareegga si loo ilaaliyo badbaadada wareegga iyo qalabka.

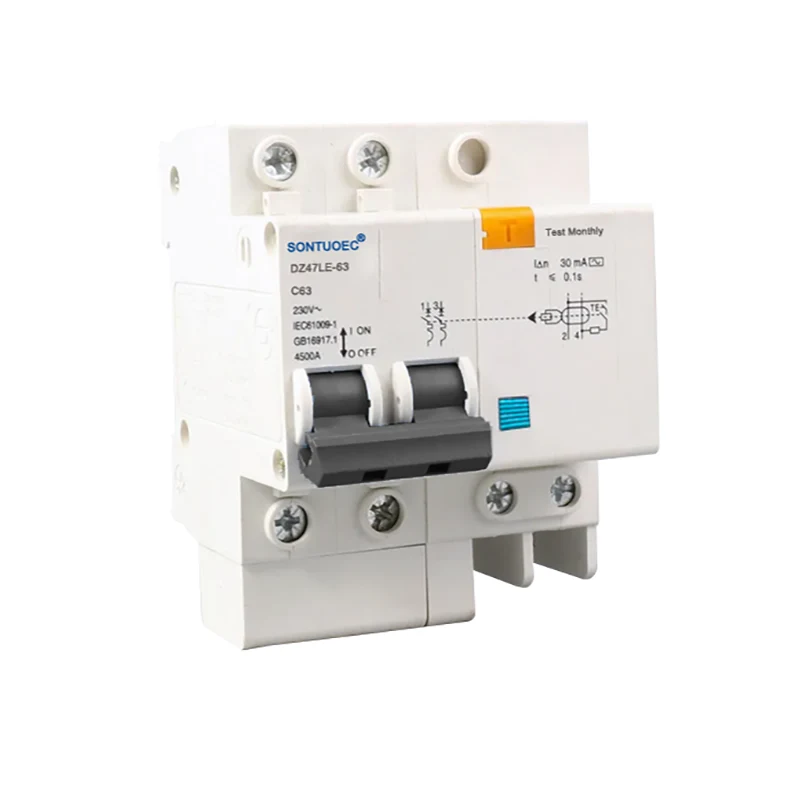

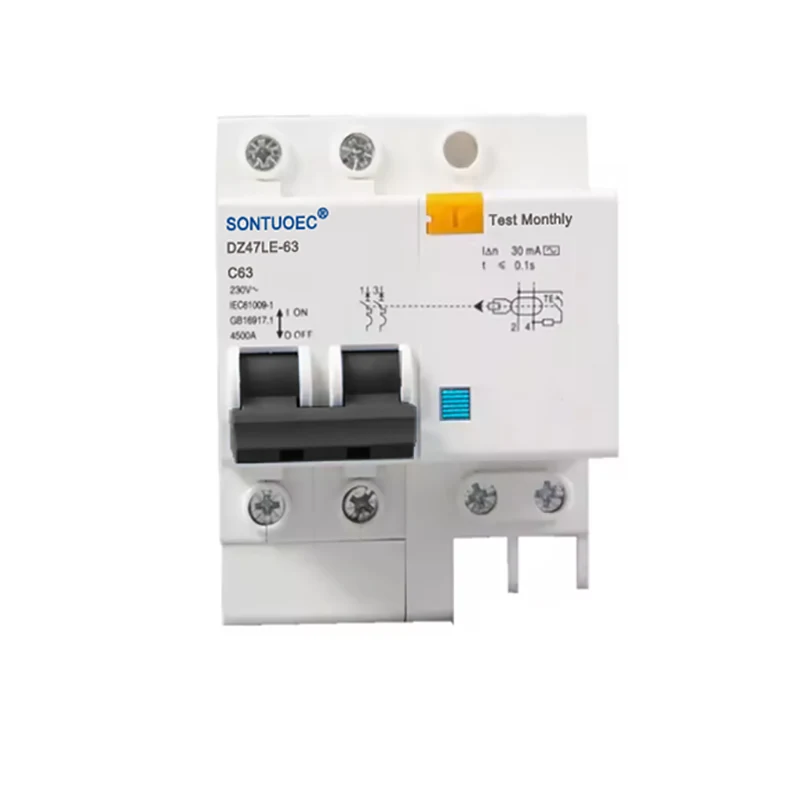

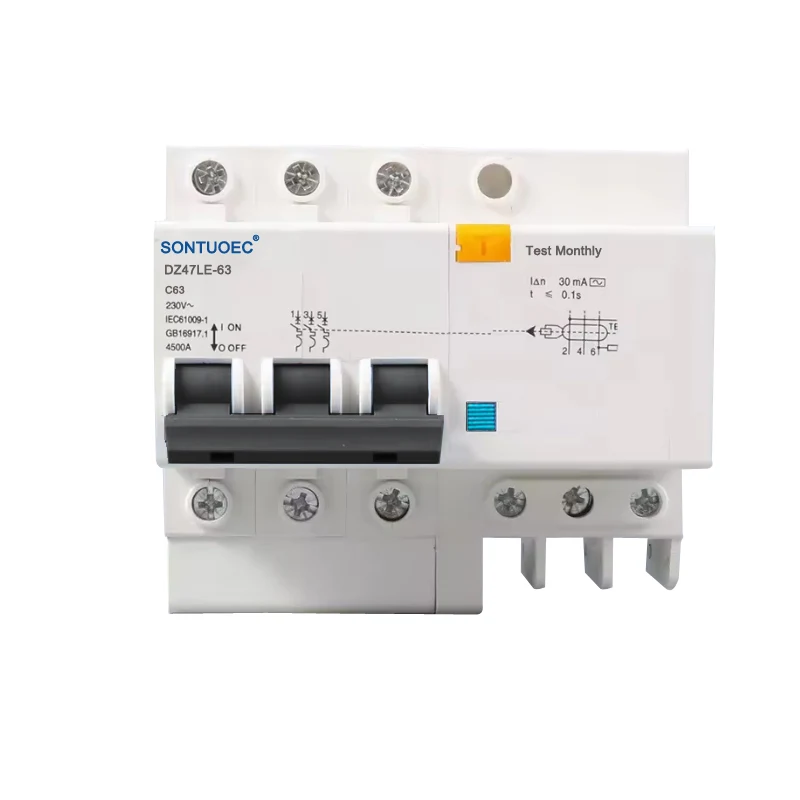

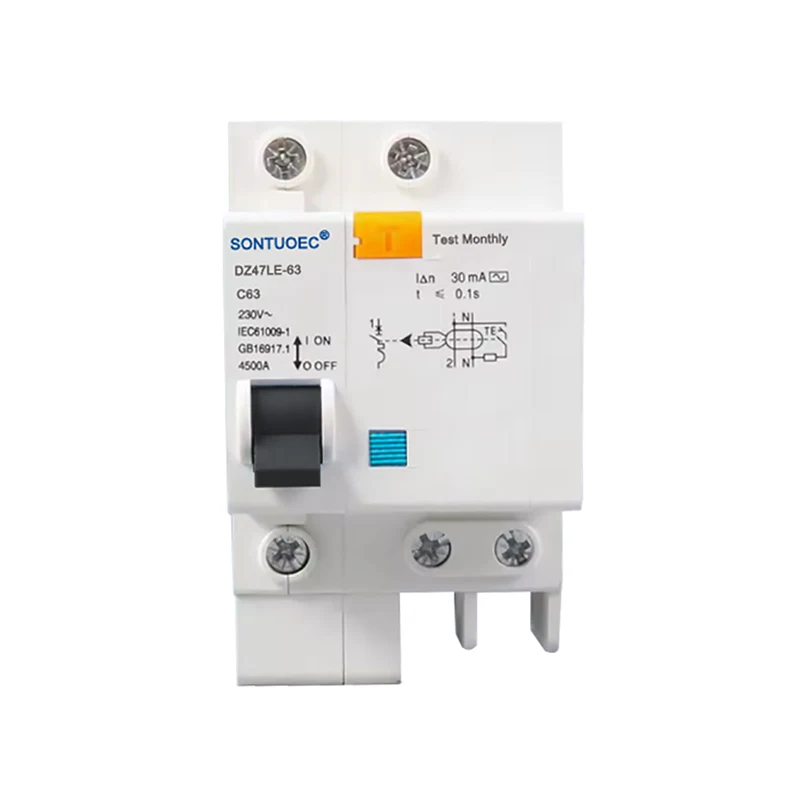

Qaabka:DZ47LE-63

Soo dir weydiin

Sharaxaada Alaabta

magac	Wareegtada Hadhaaga ah ee Jabiya oo leh Ilaalinta Joogtada ah
sifooyinka	culayska xad dhaafka ah/wareeg gaaban/ ilaalinta daadinta
Tiirka No	1P/2L,2P/2L,3P/3L,3P/4L 4P/4L
Jebinta Awoodda	3kA,4.5KA,6KA
Lagu qiimeeyay Hadda(A)	6A,10A,16A,20A,25A,32A, 40A,63A
La qiimeeyay haraaga hadda shaqeeya:	10mA,30mA,100mA,300mA,500mA
Lagu qiimeeyay Voltage(V)	240/415v
rakibidda	nooca tareenka
heerka	IEC61009-1, GB16917-1
shahaado	CE

Mabda'a hawlgalka

Mabda'a hawlgalka 4P RCBO AC Nooca wuxuu ku salaysan yahay wadarta qulqulka qulqulka iyo mabaadi'da korantada. Marka xadhkaha wareegga dabka (L) iyo eber (N) fiilooyinku aanay sinnayn cabbirkooda, wadarta xadhkaha wareegyada ee dhinaca hoose ee wareegga wareegga ma aha eber, taas oo soo saarta danab la kiciyay ee gariiradda dhinaca labaad. Danabkan la kiciyay waxaa lagu daraa isu-gudbinta korantada, taasoo dhalinaysa xamaasad kacsan taasoo abuurta xoog-demagnetizing rogaal celis ah. Marka hadda ciladdu gaadho qiimaha hadda shaqaynayo ee RCBO, xoog-dejintan rogaal celiska ahi waxay sababi doontaa in cudud ku dhex jirta relay electromagnetic in ay ka baxdo harqoodka, iyada oo riixaysa habka hawlgalka si ay u qabato oo ay u gooyso wareegga cilada hadda jira.

DZ47LE-63 taxanaha elektarooniga ah ee ilaalinta wareegga wareegga ilaalinta daadinta dhulka ayaa ku habboon wareegga hal weji oo la deggan yahay AC 50Hz / 60Hz, danab lagu qiimeeyay 230V, oo lagu qiimeeyay hadda 6A ~ 63A; 400V ee wareegga saddexda weji ee AC 50Hz/60Hz. Waxay ilaalin kartaa culeyska qaabka wareegga iyo wareegga gaaban. Alaabtani waxay leedahay faa'iidooyin mug yar, awood jabin sare leh, silig nool iyo xariiqda eber waa la gooyaa isku mar, sidoo kale waxay qofka ka ilaalinaysaa shoogga koronto ee kiiska siliga dabka iyo khadka eber ee ku xiran gadaal.

Waxay u hoggaansamaysaa heerka IEC61009-1, GB16917.1.

Tilmaam:

1) Waxay bixisaa ka-hortagga shoogga korontada, cilladda dhulka, qulqulka qulqulka;

2) Waxay bixisaa ka-hortagga culeyska xad-dhaafka ah, wareegga-gaaban iyo korontadu;

3). Mugga yar, awoodda jabinta sare; silig nool iyo xariiqda eber waa la gooyaa isku mar;

4). Xajmiga yar iyo miisaanka, rakibida fudud iyo fiilooyinka, waxqabad sare oo waara

5). Bixi ka hortagga jabka shaqaynta ee ay keento danab degdeg ah iyo hadda degdeg ah.

Tilmaamaha & Faa'iidooyinka

Ilaalinta shaqeynta badan: Nooca 4P RCBO AC wuxuu isku daraa ilaalinta hadda jirta iyo ilaalinta joogtada ah si loo bixiyo ilaalin dhamaystiran wareegyada iyo qalabka.

Dareen sare: Kahortag aad xasaasi u ah codsiga degdega ah ama kor u kaca aayar ee haraaga sinusoidal AC hadda waxay hubisaa kala goynta.

Codsi ballaadhan: Ku habboon wareegyada AC ee nidaamka qaybinta awoodda gudaha, warshadaha iyo ganacsiga, gaar ahaan xargaha hal-dab-hal-eber.

Si fudud loo rakibo oo loo dayactiro: naqshad qaabdhismeed macquul ah, fududahay in la rakibo, isla markaana si fudud loo fuliyo dayactirka iyo dib u habeynta.

Xaaladaha Codsiga

4P RCBO AC Nooca waxaa si weyn loogu isticmaalaa ilaalinta wareegga AC ee guryaha, xafiisyada, goobaha ganacsiga iyo tas-hiilaadka warshadaha. Waxay si gaar ah ugu habboon tahay codsiyada u baahan ilaalinta fiilooyinka Dabka iyo Eber-ka labadaba, sida wareegyada iftiinka, wareegyada godka iyo ilaalinta qalabka sida matoorada.
